(21.900.AC[01]) - VAR- 420104, 420105 - IDLER PINION, HYDRAULIC PUMP - CVT

Запчасти Case IH MAGNUM 220 (21.900.AC[01]) - VAR- 420104, 420105 - IDLER PINION, HYDRAULIC PUMP - CVT (21) - TRANSMISSION

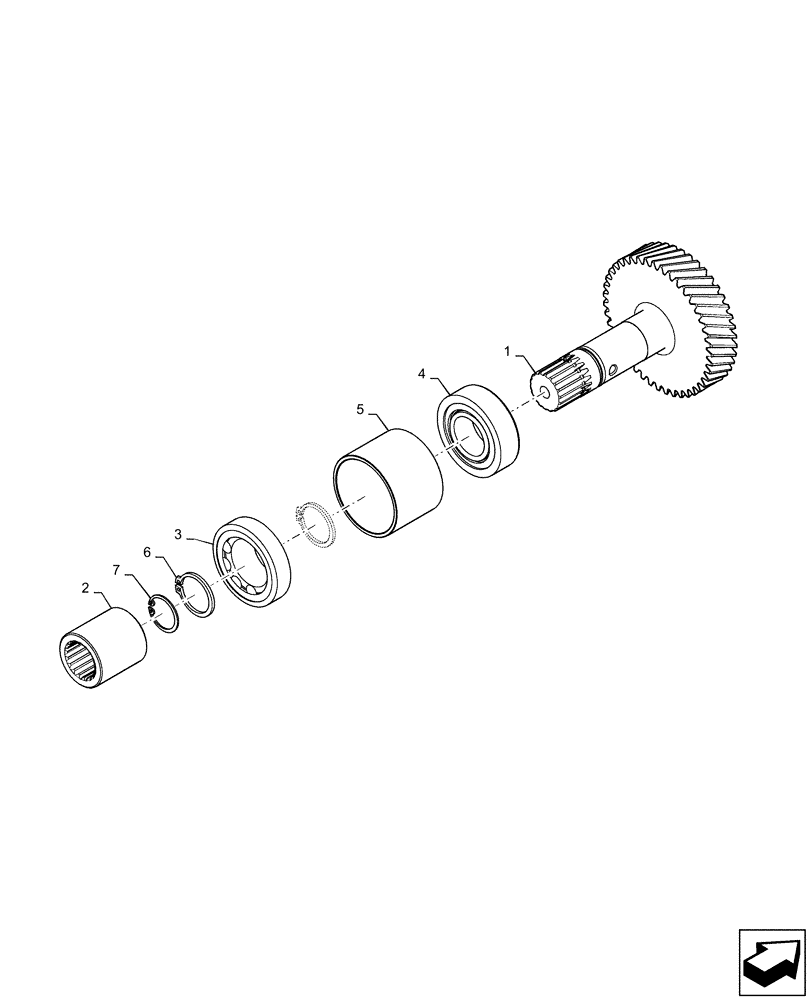

Схема запчастей Case IH MAGNUM 220 - (21.900.AC[01]) - VAR- 420104, 420105 - IDLER PINION, HYDRAULIC PUMP - CVT (21) - TRANSMISSION
2
4
7
1
6
3
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84243987

PINION,43T

Shaft, Control

1шт.

2

87538073

COUPLING RING,32.7mm ID x 48mm OD x 52mm L, 18T

1шт.

3

28996540

BALL BEARING,35mm ID x 72mm OD x 17mm W

1шт.

4

87562257

ROLLER BEARING,35mm ID x 72mm OD x 23mm W

1шт.

5

87534189

SPACER,65mm ID x 72mm OD x 52.5mm L

Pump Shaft Bearing

1шт.

6

5109282

CIRCLIP,M35, Ext x 2.50 Thk

2шт.

7

11058976

SNAP RING,M31, Int

1шт.
