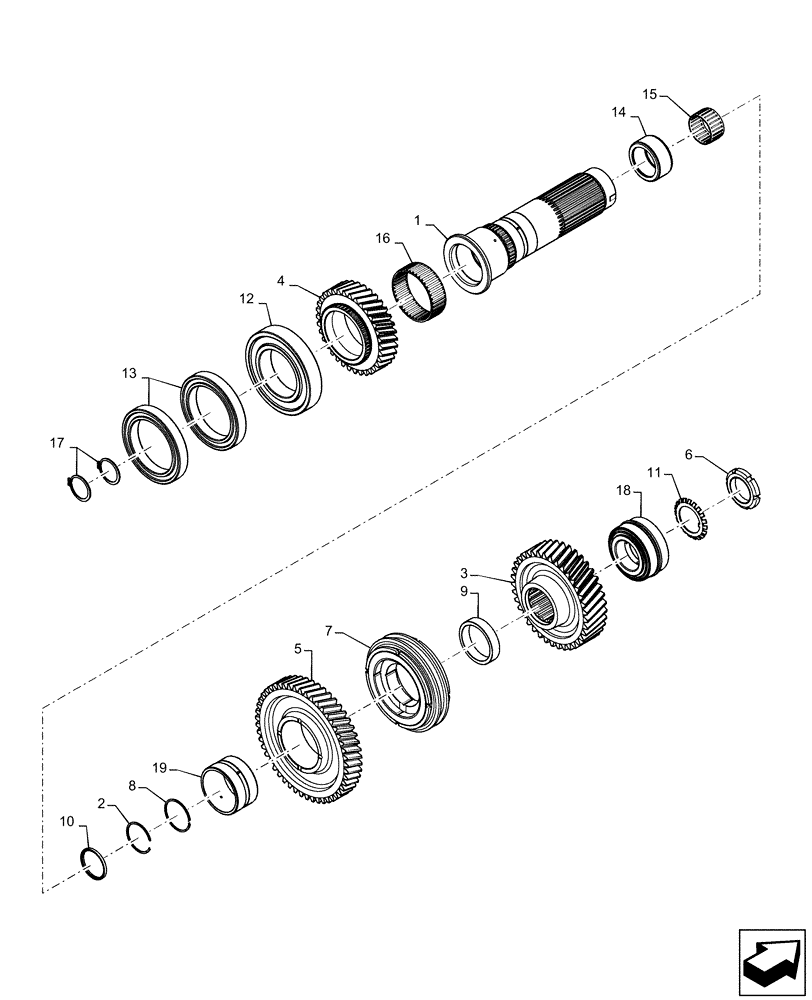

Запчасти Case IH MAGNUM 220 (21.507.AH[03]) - VAR- 420104, 420105 - GEAR F2/R1 AND F4/R2 - CVT (21) - TRANSMISSION

1

87673909

SHAFT,65.6/70.6mm ID x 69.6/74.6mm OD x 293mm L, 34/36T

With II and IV Gears

1шт.

2

5139492

RING,M50, Ext

1шт.

3

87528360

GEAR

Driven I

1шт.

4

87528362

GEAR,34T

Driven R1

1шт.

5

84124115

GEAR

Second Range

1шт.

6

5124794

RING NUT,M45 x 1.5

1шт.

7

87534217

SYNCHRONIZER,144mm ID x 156mm OD x 46mm L, 36/48T

100-75

1шт.

8

87617914

SNAP RING,M52

Thrust Washer

1шт.

9

87539672

SPACER,60mm ID x 72mm OD x 16mm L

1шт.

10

87564297

OIL SEAL,45mm ID x 52mm OD x 4mm Thk

1шт.

11

87562131

LOCK WASHER,45mm ID x 69mm OD x 1.8mm Thk

1шт.

12

87562149

BALL BEARING,80mm ID x 140mm OD x 26mm W

1шт.

13

87562157

BALL BEARING,90mm ID x 125mm OD x 18mm W

2шт.

14

87562176

NEEDLE BEARING,50mm ID x 66mm OD x 30mm W

1шт.

15

5137527

NEEDLE BEARING,45mm ID x 50mm OD x 27mm W

1шт.

16

81863562

BEARING ASSY,80mm ID x 88mm OD x 29.8mm W

1шт.

17

11068876

SNAP RING,M40, Ext

2шт.

18

47136076

TAPERED BEARING,50mm ID x 90mm OD x 50mm W

1шт.

19

87534187

BUSHING,70mm ID x 80mm OD x 44mm L

1шт.
