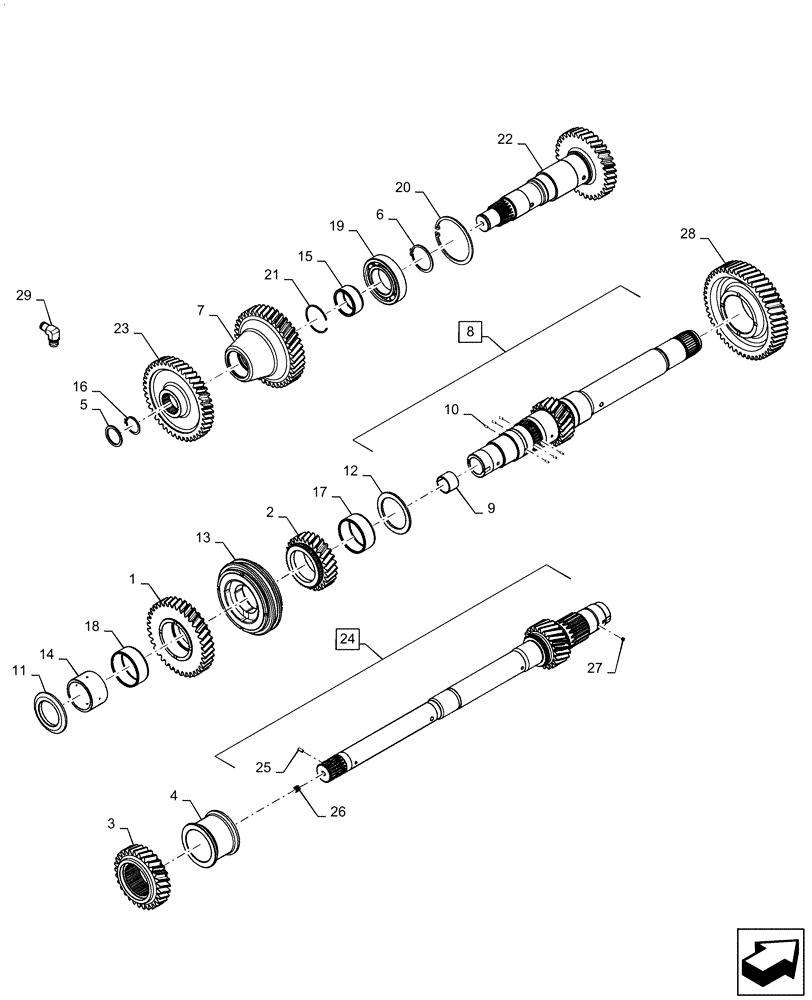

Запчасти Case IH MAGNUM 220 (21.507.AH[01]) - VAR- 420104, 420105 - F4/R2 SHAFT, OUTPUT SHAFT, REVERSE SHAFT, F3 GEAR - CVT (21) - TRANSMISSION

1

87707713

GEAR

F4, 37T

1шт.

2

87707714

GEAR,27T

R2, 27T

1шт.

3

87528364

PINION

Driven, Fourth Range, 29T

1шт.

4

87528366

SPACER,70mm ID x 95mm OD x 68mm L

For II-IV

1шт.

5

11068376

SNAP RING,M35, Ext x 1.5 Thk

1шт.

6

11069576

SNAP RING,M55, Ext

1шт.

7

87528476

GEAR,40T

R1, 40T, On Reverse Shaft

1шт.

8

84152252

SHAFT

Input Sleeve, F4/R2, 21T, Incl 9, 10

1шт.

9

5107725

BUSHING,31.99mm ID x 36mm OD x 25mm L

1шт.

10

13935170

COILED PIN

6шт.

11

87528646

SPACER,55mm ID x 88mm OD x 8mm L

For IV

1шт.

12

87528649

SPACER

1шт.

13

84212632

SYNCHRONIZER,144mm ID x 156mm OD x 46mm Thk, 31/46T

F4/R2

1шт.

14

87534229

BUSHING,60mm ID x 70mm OD x 43.5mm L

1шт.

15

5162256

NEEDLE BEARING,Needle, 50mm ID x 58mm OD x 25mm W

1шт.

16

87548132

SPACER,35mm ID x 45mm OD x 3mm L

Reverse Shaft

1шт.

17

5144915

NEEDLE BEARING CAGE,68mm ID x 74mm OD x 30mm W

1шт.

18

87562181

NEEDLE BEARING,70mm ID x 76mm OD x 30mm W

1шт.

19

87562562

BALL BEARING,55mm ID x 100mm OD x 21mm W

1шт.

20

11062976

SNAP RING,Int, M100 x 3

1шт.

21

5142178

SNAP RING,1.5mm Thk

1шт.

22

87588055

SHAFT,40.6/128.7mm ID x 44.6/147.4mm OD x 304mm L, 21/33T

Reverse, 33T

1шт.

23

87589205

GEAR,42T

RM2, 42T

1шт.

24

87701173

SHAFT

Output, Clutch A, 21T, Incl 25 - 27

1шт.

25

13939670

COILED PIN,5mm ODx 12mm L

1шт.

26

87568761

RESTRICTOR,Hex Soc, M10 x 1.25

1шт.

27

5193270

ORIFICE,M6 x 1 x 4mm, Cl 8.8

1шт.

28

87528212

GEAR

F3, 49T

1шт.

29

87336911

HYD CONNECTOR

1шт.
