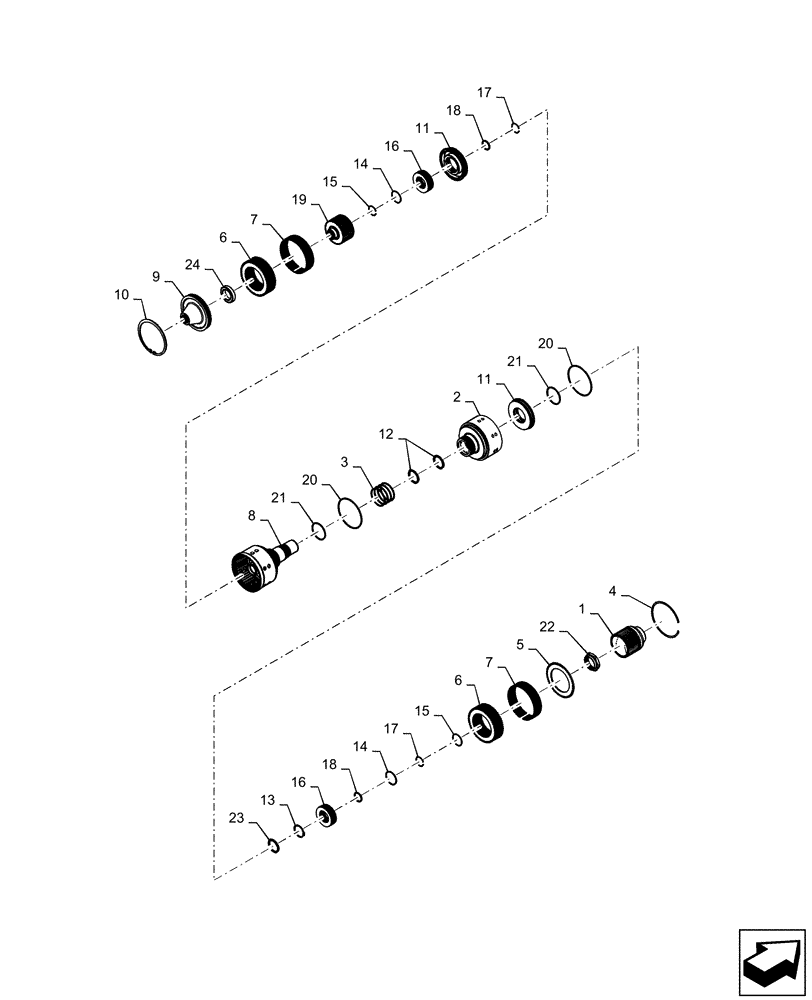

Запчасти Case IH MAGNUM 220 (21.507.AF[01]) - VAR- 420104, 420105 - CENTRAL REDUCTION GEARS, CLUTCH - CVT (21) - TRANSMISSION

1

87528403

CLUTCH HOUSING

Internal, B Hub On Secondary

1шт.

2

47664437

CLUTCH HOUSING

B, Complete

1шт.

3

87743137

SEALING RING,90mm OD x 2.35mm Thk

4шт.

4

5122844

SNAP RING,168mm, 2mm Thk, Int

1шт.

5

5122821

THRUST PLATE,53T, 173mm OD

Gear, Hi, Clutch Reaction Plate

1шт.

6

87701174

CLUTCH DISC,51.7mm Thk

Set

2шт.

7

5166536

SPRING,173mm OD x 1.27mm Thk

Clutch Plate Separation

22шт.

8

47664433

CLUTCH HOUSING

A, Complete

1шт.

9

84173397

HUB

1шт.

10

11078676

SNAP RING,M175, Int

1шт.

11

87707334

PISTON

2шт.

12

14464780

O-RING,0.139" Thk x 2.359" ID, -229, Cl 5, 75 Duro

2шт.

13

11069776

SNAP RING,M58, Ext

1шт.

14

84472847

RETAINER CUP,58mm ID x 68mm OD x 3mm Thk

2шт.

15

47136464

SNAP RING,M58, Ext

2шт.

16

47136549

BELLEVILLE SPRING

22шт.

17

5117076

CIRCLIP,M47, Ext

2шт.

18

87562129

OIL SEAL,40mm ID x 47mm OD x 4mm

2шт.

19

87476182

HUB

On Secondary, Internal Clutches A

1шт.

20

5172235

GASKET,144.55mm ID x 152.06mm OD x 3.2mm Thk

2шт.

21

5160154

GASKET,79.97mm ID x 87.5mm OD x 3.2mm Thk

2шт.

22

87545626

NUT,Hex, M65 x 2

1шт.

23

14455180

O-RING,2.114" ID x 0.07" Width

1шт.

24

87476160

BALL BEARING,50 mm ID x 80 mm OD x 16 mm

1шт.
