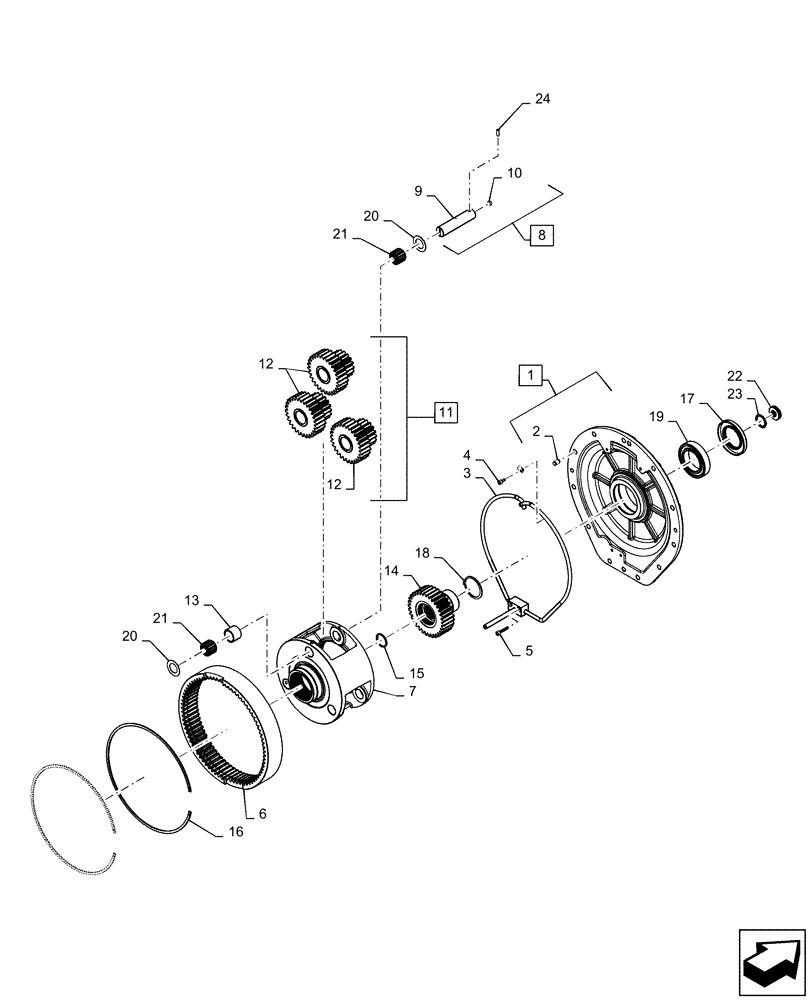

Запчасти Case IH MAGNUM 220 (21.507.AE[01]) - VAR- 420104, 420105 - PLANETARY GEAR AND COVER - CVT (21) - TRANSMISSION

1

84123542

COVER

Incl 2

1шт.

2

5153109

DOWEL,10mm OD x 15mm L

2шт.

3

87556073

TUBE

Lube Line

1шт.

4

14305121

HEX SOC SCREW,M6 x 12mm, Cl 8.8

2шт.

5

14305524

HEX SOC SCREW,M6 x 30mm, Cl 8.8, Full Thd

2шт.

6

87528244

RING GEAR,272.3mm ID x 285.5mm OD x 49mm Thk, 78T

1шт.

7

87528653

PINION CARRIER

1шт.

8

87536554

PIN

Incl 9, 10

3шт.

9

87528655

PIN,25mm OD x 110mm L

3шт.

10

14328201

PLUG,M10, Tapered

3шт.

11

84242556

GEAR SET

Incl 12 Qty 3

1шт.

12

84181353

PLANETARY GEAR

3шт.

13

87528661

SPACER,27mm ID x 33mm OD x 25mm L

3шт.

14

87588061

SUN GEAR

1шт.

15

11059376

SNAP RING,M34, Int

1шт.

16

87536557

COUPLING RING,277.3mm OD x 5.5mm Thk

2шт.

17

87562125

OIL SEAL,55mm ID x 90mm OD x 10mm Thk

1шт.

18

11069576

SNAP RING,M55, Ext

1шт.

19

28042510

BALL BEARING,55mm x 90mm x 18mm

1шт.

20

47133538

WASHER,25mm ID x 42mm OD x 1mm Thk

6шт.

21

47136415

NEEDLE BEARING,25mm ID x 33mm OD x 24mm W

6шт.

22

87698696

PLUG,M8 x 1.25 x 11mm L

1шт.

23

14458180

O-RING,0.103" Thk x 1.174" ID, -123, Cl 5, 75 Duro

1шт.

24

13941870

DOWEL,6mm OD x 16mm L

3шт.
