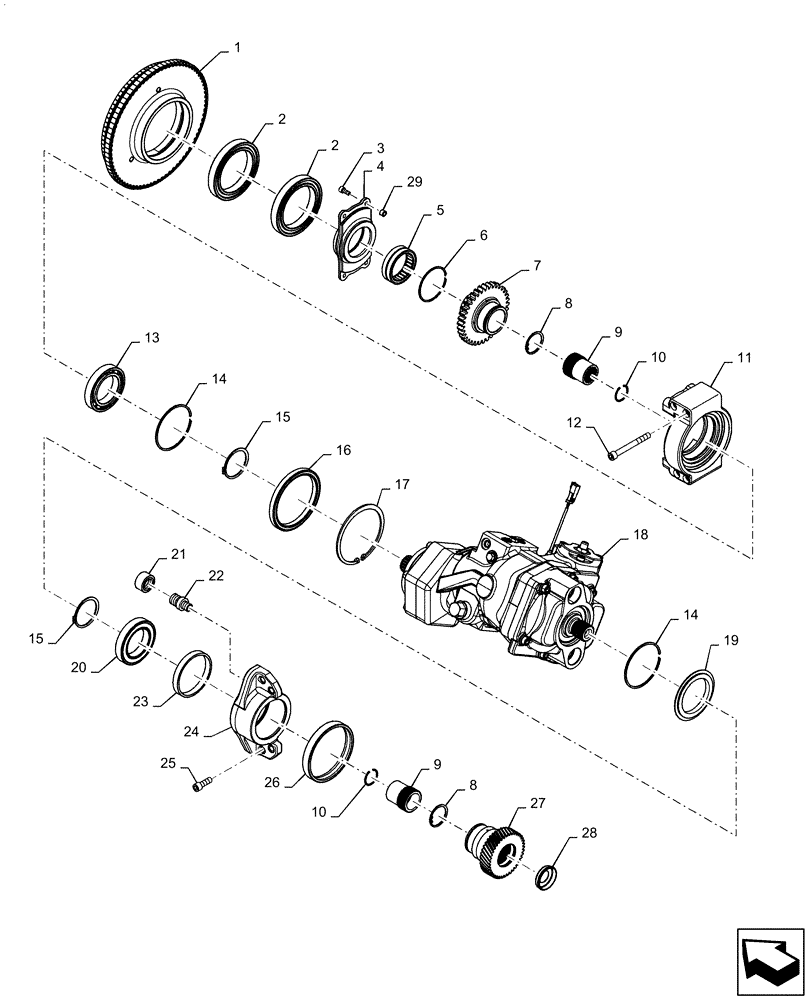

Запчасти Case IH MAGNUM 220 (21.507.AD[01]) - VAR- 420104, 420105 - HYDROSTATIC PUMP - CVT (21) - TRANSMISSION

1

87566890

GEAR

Bevel, Complete

1шт.

2

47136425

BALL BEARING,105mm ID x 145mm OD x 20mm W

2шт.

3

14306320

HEX SOC SCREW,M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

4

87566877

SUPPORT

Front

1шт.

5

87562573

NEEDLE BEARING,Needle, 68mm ID x 85mm OD x 25mm W

1шт.

6

87574918

SNAP RING,M86.8, Ext

1шт.

7

87566872

PINION,36T

Gear, Hydraulic Motor

1шт.

8

11060576

SNAP RING,M52, Int

2шт.

9

84248897

SPLINED COUPLING,36/51.7mm ID x 40/54.7mm OD x 62mm L

2шт.

10

13421674

SNAP RING,M38, Int

2шт.

11

87566879

SUPPORT

Front

1шт.

12

14332620

HEX SOC SCREW,M12 x 1.25 x 110mm, Cl 8.8

4шт.

13

47136958

BALL BEARING,70mm ID x 110mm OD x 20mm W

1шт.

14

87567448

SNAP RING,M113.3, Ext

2шт.

15

11070376

SNAP RING,M70, Ext

2шт.

16

87550536

RUBBER SEAL,127mm ID x 152mm OD x 14mm Thk

Seal

1шт.

17

11077176

CIRCLIP,145mm

1шт.

18

84536173

HYDROSTATIC PUMP

110-90 CC EP, CVT Transmission, Components NSS

1шт.

18

84536173R

REMAN-HYDROSTAT PUMP

110-90 CC EP, CVT Transmission, Components NSS

1шт.

18

84536173C

CORE-HYDRAULIC PUMP

Return Number

1шт.

18

47871752

SEAL KIT

Hydrostatic Pump

1шт.

18

47915579

REPAIR KIT

Proportional Solenoid

1шт.

19

84245241

RING,88mm ID x 125mm OD x 11.5mm Thk

1шт.

20

84455696

BALL BEARING,70mm ID x 110mm OD x 20mm W

1шт.

21

84120288

BUSHING,25mm ID x 42mm OD x 23mm L

2шт.

22

84248990

PIN,29.5mm OD x 54mm L

2шт.

23

87572495

SPACER,100mm ID x 110mm OD x 15mm L

1шт.

24

84248818

SUPPORT

Rear

1шт.

25

14331220

HEX SOC SCREW,M12 x 1.25 x 35mm, Cl 8.8, Full Thd

4шт.

26

87587823

ROLLER BEARING,80mm ID x 110mm OD x 20mm W

1шт.

27

84248819

PINION,40T

Gear, Driven

1шт.

28

84248817

RETAINER CUP,30mm ID x 58.5mm OD x 13mm Thk

1шт.
