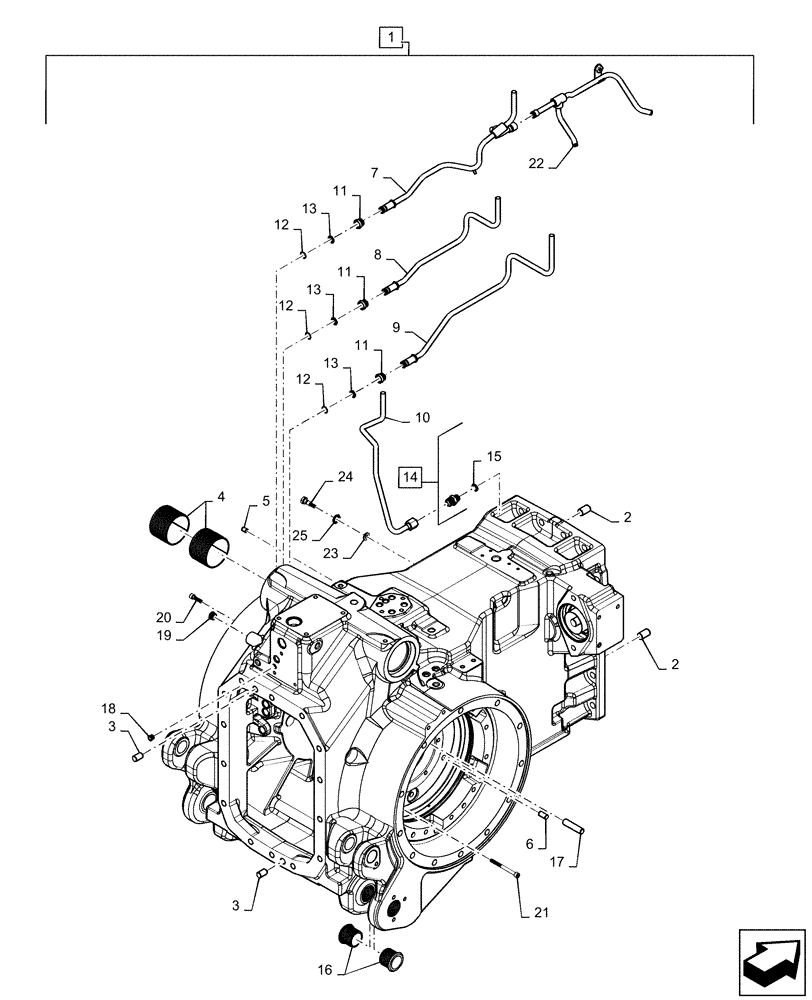

Запчасти Case IH MAGNUM 220 (21.504.AK[02]) - VAR- 420104, 420105 - TRANSMISSION HOUSING, REAR - CVT (21) - TRANSMISSION

1

84490303

TRANSMISSION HOUSING

Rear, Incl 2 - 25

1шт.

2

5185790

DOWEL,18mm OD x 30mm L

2шт.

3

4985062

DOWEL,15mm OD x 25mm L

2шт.

4

5185956

BUSHING,80.1mm ID x 85mm OD x 60mm L

4шт.

5

10839710

DOWEL,M10 x 15.00mm

2шт.

6

5110200

DOWEL,12mm OD x 25mm L

6шт.

7

84271168

HYD TUBE

1шт.

8

84269541

TUBE

1шт.

9

84269540

TUBE

1шт.

10

87583446

TUBE

1шт.

11

84268812

BUSHING,16mm ID x 23mm OD x 16mm L

3шт.

12

84268818

SNAP RING

3шт.

13

14453182

O-RING,0.07" Thk x 0.489" ID, -14, Cl 9, 70 Duro

3шт.

14

5154713

HYD CONNECTOR

Incl 15

1шт.

15

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

16

5194813

BUSHING,37mm ID x 53mm OD x 40mm L

4шт.

17

5187995

GUIDE PIN,15mm OD x 65mm L

6шт.

18

4998275

PLUG,8,8mm ID x 10,8mm OD x 10.0mm L

1шт.

19

5111228

PLUG,16.5mm ID x 20mm OD x 11mm Thk

1шт.

20

14306520

HEX SOC SCREW,M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

21

1960667

HEX SOC SCREW,M8 x 90mm, Cl 8.8

1шт.

22

87742108

HYD TUBE

1шт.

23

11190579

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

1шт.

24

87742107

SCREW,M8 x 37mm

1шт.

25

14450581

O-RING,6.86mm ID x 1.78mm Width

1шт.
