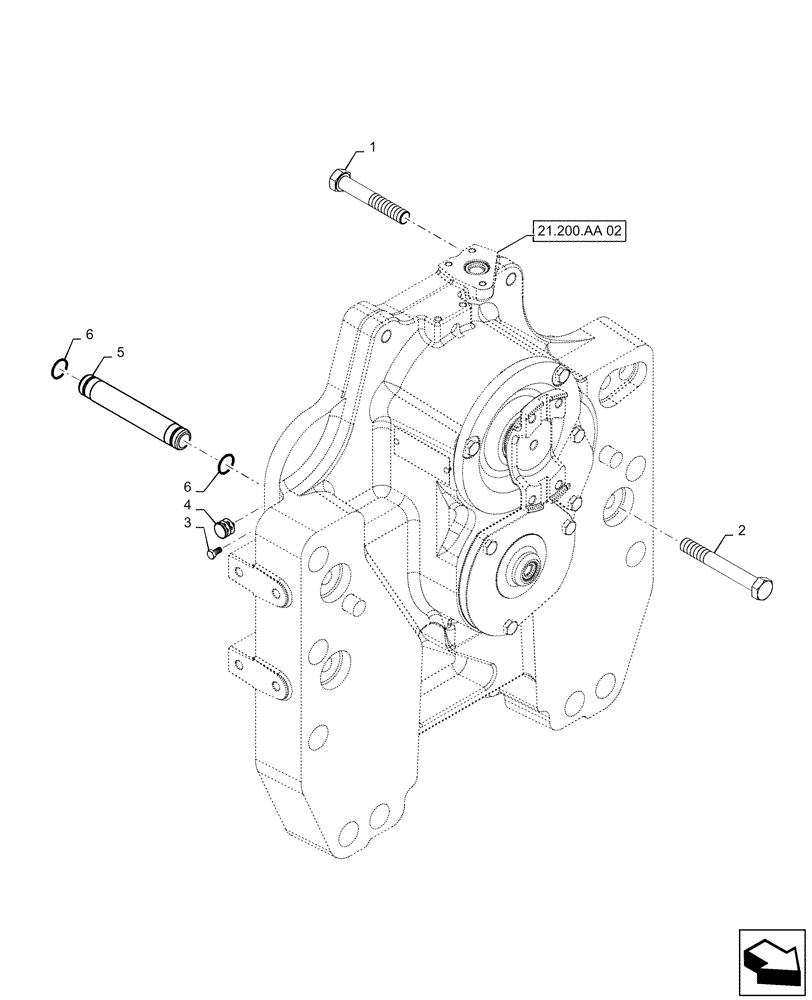

Запчасти Case IH MAGNUM 220 (21.200.AA[01]) - VAR- 420104, 420105, 429326, 729571 - JUMPER TUBE AND MOUNTING BOLTS, DROP BOX (21) - TRANSMISSION

1

84345501

BOLT,Hex, M16 x 100mm, Cl 10.9

7шт.

2

514-1035

BOLT,Hex, M16 x 1.5 x 120mm, Cl 10.9

4шт.

3

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

1шт.

4

305138A1

PLUG

1шт.

5

84172099

HYD TUBE,17.45 mm ID x 25.40 mm OD x 159.7 mm L

Jumper, Drop Box, CVT

1шт.

5

84172098

HYD TUBE,17.45 mm ID x 25.40 mm OD x 246.45 mm L

Jumper, Drop Box, PST

1шт.

6

66297

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.
