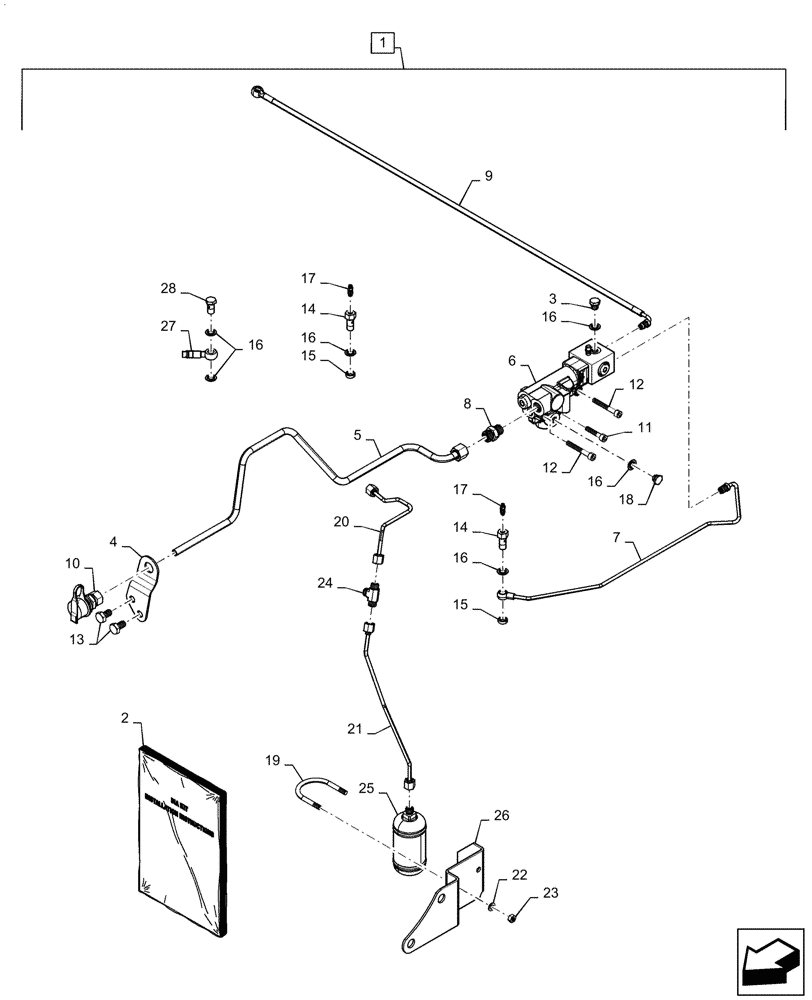

Запчасти Case IH MAGNUM 220 (88.100.35[09]) - DIA KIT, TRACTOR, HYDRAULIC TRAILER BRAKES, CVT (88) - ACCESSORIES

1

719897006

DIA KIT, TRACTOR

Hydraulic Trailer Brakes, CVT; Incl 2 - 28

1шт.

2

84160852

INSTRUCTION

Hydraulic Trailer Brakes, CVT

1шт.

3

47131496

PLUG,Hex, M12 x 1

Pipe

1шт.

4

5196322

BRACKET

Trailer Brake

1шт.

5

87608334

TUBE

TBV

1шт.

6

47582718

BRAKE VALVE

TBV

1шт.

7

87608326

BRAKE LINE

RH

1шт.

8

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

1шт.

9

84176588

HYD TUBE,6 mm OD x 50, 35 mm L

1шт.

10

44015354

QUICK MALE COUPLING

1шт.

11

14306721

HEX SOC SCREW,M8 x 48mm, Cl 8.8

1шт.

12

14308921

HEX SOC SCREW,M8 x 60mm, Cl 8.8

2шт.

13

15540221

BOLT,Hex, M12 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

14

5155679

BLEEDER VALVE,M12 x 1.25 x 27mm

2шт.

15

5155678

GASKET,12.2mm ID x 17mm OD x 5mm Thk

Rectangular Section

2шт.

16

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

6шт.

17

5153030

BLEED SCREW,Bleeder, Hex, M8 x 1.25 x 25mm

2шт.

18

10300511

PLUG,M12 x 1.5 x 12, Cl5.8

1шт.

19

84152220

U-BOLT,M8 x 2, ZND

1шт.

20

84152170

HYD TUBE

Pressure

1шт.

21

84152180

HYD TUBE

1шт.

22

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

23

9706690

NUT,M8 x 1.25, Cl 8

2шт.

24

9840568

TEE,9/16"-18 ORFS

1шт.

25

84408141

HYDRAULIC OIL FILTER,60mm OD x 142.5mm L, 9/16-18

1шт.

26

84487033

BRACKET

Resounding

1шт.

27

82030175

BANJO FITTING,M8 x 1 x 53mm

1шт.

28

5121685

BANJO BOLT,M12 x 1.5 x 23mm

1шт.
