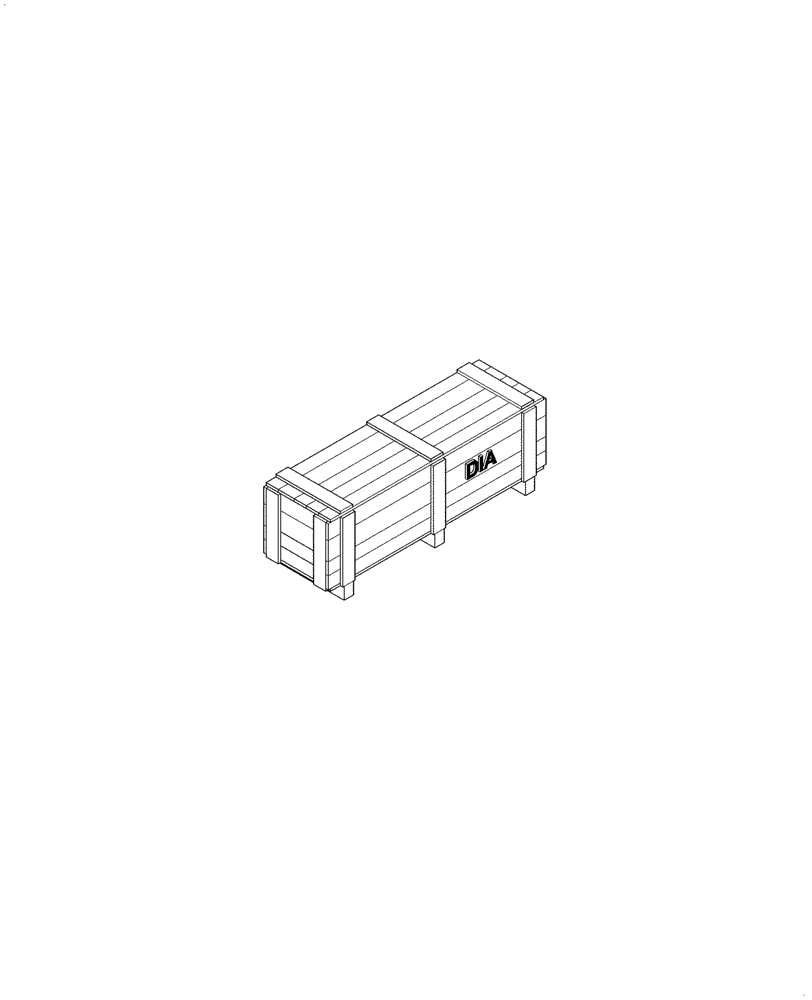

Запчасти Case IH MAGNUM 220 (88.100.35[01]) - DIA KIT, TRACTOR, 4TH SECTION REMOTE (88) - ACCESSORIES

1

47498117

KIT

4th Section Remote; Incl 2 - 24

1шт.

2

47501503

INSTRUCTION

4th Section Remote

1шт.

3

84233649

DECAL

Remote 3

1шт.

4

84233648

DECAL

Remote 2

1шт.

5

84217492

HOSE

Tank To CRB

1шт.

6

84544820

HOSE

Radiator Deaeration

1шт.

7

1289479C1

TEE

1/4 Hose Barbed

1шт.

8

84544821

HOSE

Radiator Deaeration

1шт.

9

84233650

DECAL

Remote 4

1шт.

10

829-1312

NUT,M12 x 1.75, Cl 10

3шт.

11

84543055

STUD,M12 x 1.75 x 145mm L

3шт.

12

628-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

13

1289481C1

ELBOW,1/8" NPT x 1/4" Hose Barb

90 Deg 1/8 NPT Barbed

1шт.

14

217-429

PLUG,Hex Soc, 1/8" - 27 NPTF

1шт.

15

435375A1

VALVE

Control

1шт.

16

84375319

SCREW

Hex Soc, M6 x 85 12.9

2шт.

17

864-6045

HEX SOC SCREW,M6 x 45mm, Cl 8.8

2шт.

18

84364079

VALVE

Coupler Deluxe, Left

1шт.

19

87635381

O-RING,2.62mm Thk x 15.54mm ID, -114, 80 Duro

3шт.

20

87635382

O-RING,2.62mm Thk x 20.29mm ID, -117, 80 Duro

9шт.

21

87635379

O-RING,2.62mm Thk x 9.19mm ID, -110, 80 Duro

8шт.

22

87635376

O-RING,2.62mm Thk x 3.63mm ID, -105, 80 Duro

3шт.

23

84539946

PLATE

Valve

1шт.

24

47595041

VALVE

Main CCHSF

1шт.
