Запчасти Case IH MAGNUM 220 (88.100.10[01]) - DIA KIT, TRACTOR, SEPARATOR, FILTER WITH ALO LDR (88) - ACCESSORIES

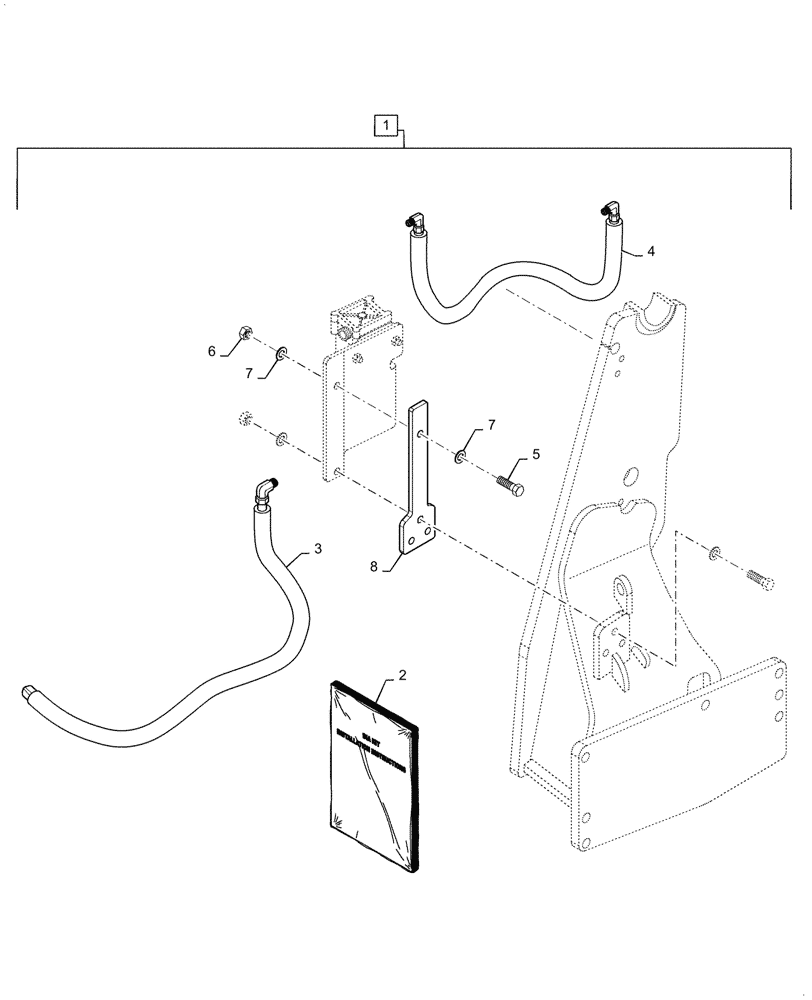

Схема запчастей Case IH MAGNUM 220 - (88.100.10[01]) - DIA KIT, TRACTOR, SEPARATOR, FILTER WITH ALO LDR (88) - ACCESSORIES
8
4
2
7
3
1
6
7
5

Артикул

Название

Примечание

Количество

1

47441416

KIT

Separator Filter With ALO LDR; Incl 2 - 8

1шт.

2

47442439

INSTRUCTION

Separator Filter With ALO LDR

1шт.

3

47441513

FUEL HOSE

To Pre-Filter Loader

1шт.

4

47441476

FUEL HOSE

To Tank Loader

1шт.

5

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

4шт.

6

87497918

NUT

Non-Mtl M12 x 13.8

4шт.

7

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

8шт.

8

84402285

PLATE

Filter Mounting

1шт.

Выбрано товаров: 8
