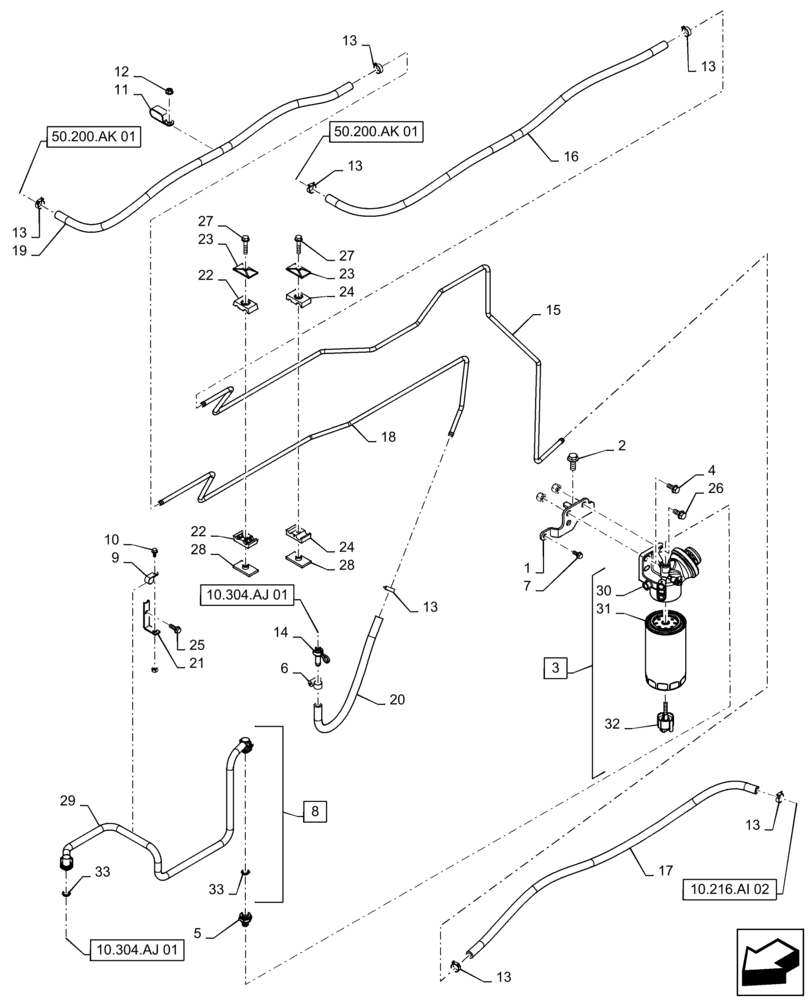

Запчасти Case IH MAGNUM 220 (10.206.AG[01]) - FUEL LINE, FUEL FILTER (10) - ENGINE

1

47499775

BRACKET

Fuel Filter Mounting

1шт.

2

844-12030

BOLT,Hvy Hex, M12 x 30mm, Cl 8.8

1шт.

3

84348875

FILTER ASSY

Assy, Incl 30 - 32

1шт.

4

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

2шт.

5

8602542

ADAPTER,M14 x 1.5 x 16mm ID x 7.90mm ID

1шт.

6

86625021

HOSE CLAMP,17.5mm - 31.7mm, Worm Gear

1шт.

7

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

1шт.

8

47502755

FUEL TUBE

Filter to ECU, Incl 29, 33

1шт.

9

87532034

CLAMP,15.9mm, Coat, 7.1mm Bolt Hole, P Type

Fuel Tube

1шт.

10

845-6014

BOLT,Hvy Hex, M6 x 14mm, Cl 8.8

1шт.

11

485093C1

CLAMP,13/16" Insul, 13/32" Bolt

Fuel Cooler Hose

1шт.

12

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.

13

1348264C1

HOSE CLAMP

7шт.

14

87408919

FITTING

NG-8 Quick Connect W/Locking Clip

1шт.

15

47595204

FUEL TUBE

Fuel Cooler to Tank

1шт.

16

47449010

FUEL HOSE

Fuel Cooler to Tank

1шт.

17

47449011

FUEL HOSE

Fuel Tank to Tube

1шт.

18

47449012

TUBE

Fuel, Engine to Fuel Cooler

1шт.

19

47449013

FUEL HOSE

Fuel Cooler to Tube

1шт.

20

47449014

FUEL HOSE

Fuel Tank to Tube

1шт.

21

47450721

MOUNT

Fuel Tube Support

1шт.

22

363255A1

CLAMP

Fuel Line, Dual

1шт.

23

384870A1

PLATE

Fuel Line Clamp, Top

2шт.

24

428385A1

SPECIAL CLAMP

Fuel Line, Dual

1шт.

25

555-1

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

1шт.

26

844-10035

BOLT,Hex, M10 x 35mm, Cl 8.8

1шт.

27

844-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 8.8

2шт.

28

384871A1

PLATE

Fuel Line Clamp, Bottom

2шт.

29

NSS

NOT SOLD SEPARAT

TUBE Incl in 8

1шт.

30

87705123

FILTER HEAD

Fuel Filter Head

1шт.

31

84348882

FUEL FILTER,97mm OD x 184mm L, M16 x 1.5, 30 Microns

Element, Primary

1шт.

32

87519307

SENSOR

Water In Fuel

1шт.

33

87445405

O-RING

Fuel Line, Filter to ECU

2шт.
