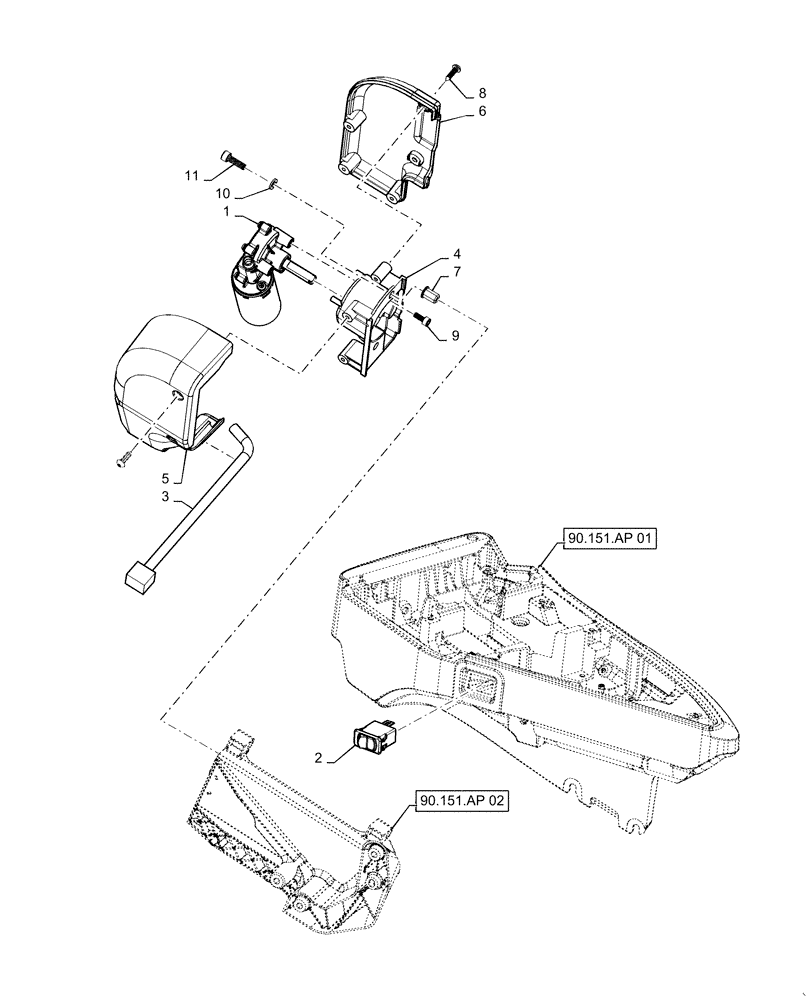

Запчасти Case IH MAGNUM 220 (55.512.CS[05]) - ARMREST, ELECTRIC ADJUST (55) - ELECTRICAL SYSTEMS

1

84235755

ELECTRIC MOTOR,12V

Garu Electric Adjust

1шт.

2

87494094

SWITCH ASSY

Rocker

1шт.

3

84195895

WIRE HARNESS

Electric Motor, Garu

1шт.

4

84201758

HOLDER

Motor

1шт.

5

84201762

SHELL

Motor Adjust, Inside

1шт.

6

84201783

SHELL

Motor Adjust, Outside

1шт.

7

15624411

RIVET,Flat, M6 OD x 16mm L

M6

2шт.

8

15903977

SELF-TAP SCREW,Pan Head, M4.8 x 1.6 x 19mm

4.8mm x 19mm

7шт.

9

86625213

HEX SOC SCREW,M5 x 12mm, Cl 8.8

3шт.

10

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

2шт.

11

86531615

HEX SOC SCREW,M6 x 20mm, Cl 8.8

2шт.
