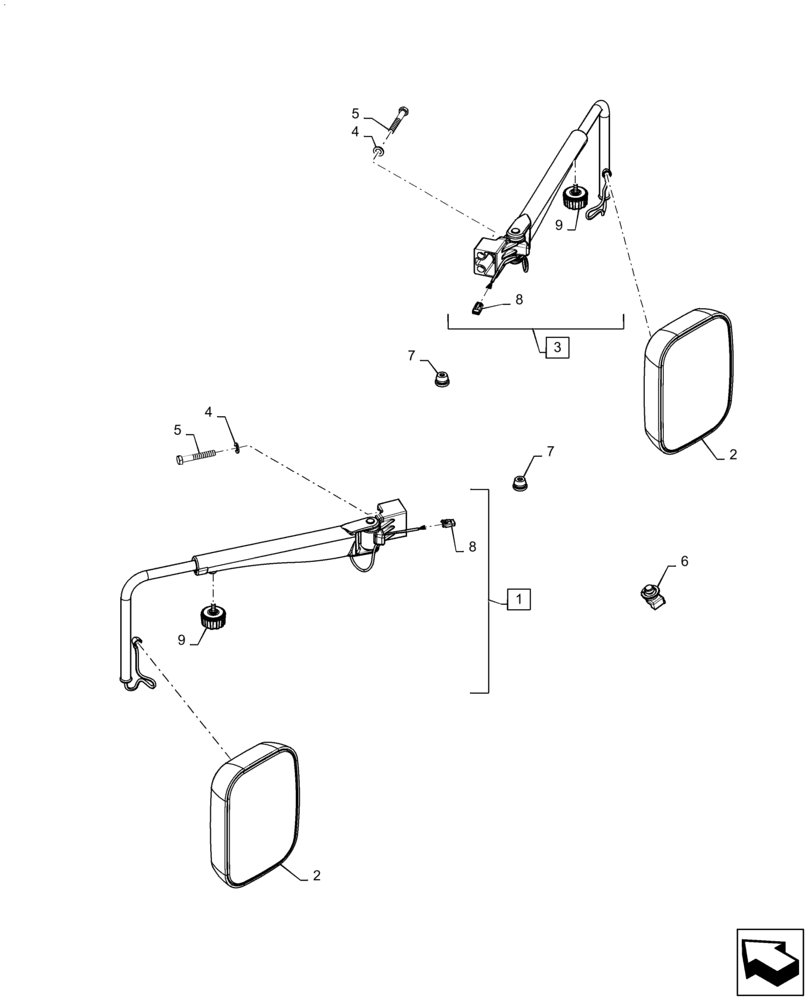

Запчасти Case IH MAGNUM 220 (55.512.CI) - VAR- 420820 - ELECTRIC MIRRORS (55) - ELECTRICAL SYSTEMS

1

87363077

ARM

LH Electric, Incl 8 - 9

1шт.

2

87363066

MIRROR,238mm x 328mm

Head, Electric

2шт.

3

87363082

ARM

RH Electric, Incl 8 - 9

1шт.

4

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

4шт.

5

412085

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

4шт.

6

280627A1

SWITCH, MIRROR ADJUS

1шт.

7

182045A1

GROMMET

2шт.

8

276424A1

ELEC CONNECTOR,Female, 3 Pin

Deutsch

2шт.

9

87365131

KNOB

2шт.
