Запчасти Case IH MAGNUM 220 (55.511.AJ[01]) - VAR- 420104, 420105, 429326, 729571 - WIRE HARNESS, TRAILER - NA - BSN - ZERH08099 (55) - ELECTRICAL SYSTEMS

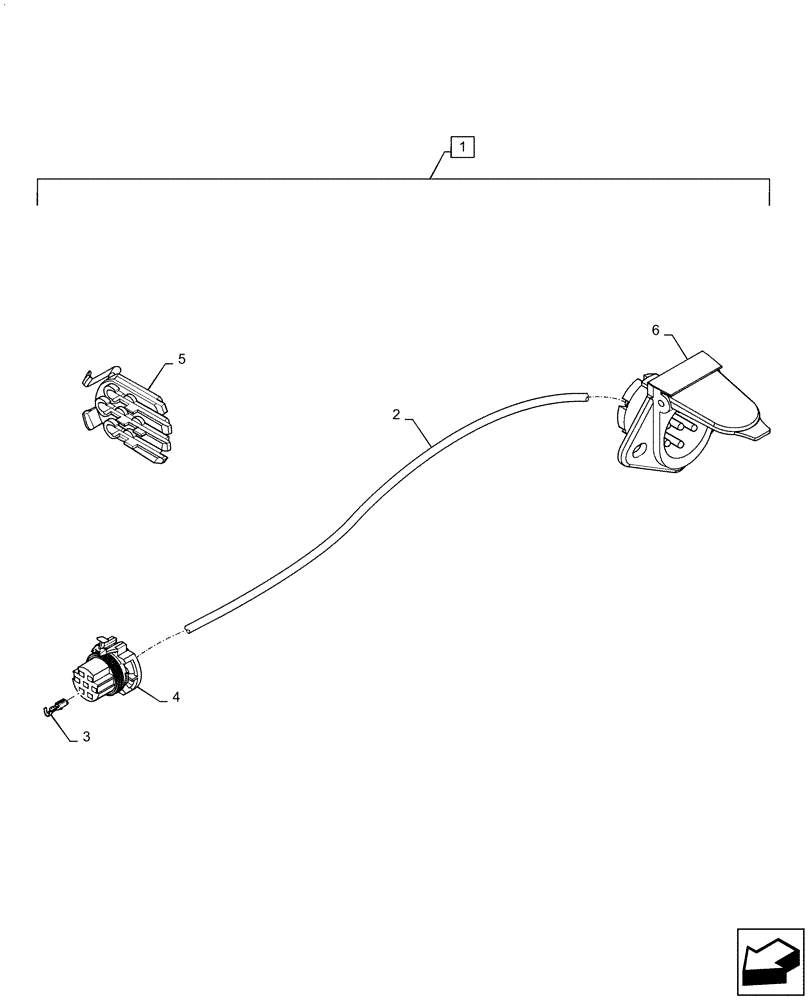

Схема запчастей Case IH MAGNUM 220 - (55.511.AJ[01]) - VAR- 420104, 420105, 429326, 729571 - WIRE HARNESS, TRAILER - NA - BSN - ZERH08099 (55) - ELECTRICAL SYSTEMS
1
4
6
3
5
2

Артикул

Название

Примечание

Количество

1

47526244

WIRE HARNESS

Trailer, NA, Incl 2 - 6

1шт.

2

87494032

CONDUIT

Cut To Length 660 mm

1шт.

3

87697733

TERMINAL

Female Metri-Pack .280

7шт.

4

87698222

ELEC CONNECTOR

Delphi Metri-Pack .280 7-way, X-147 To Rear Frame Harness

1шт.

5

87704925

ELEC CONNECTOR

Secondary Lock 7-way

1шт.

6

82001021

POWER SOCKET,7 Pins

Cole Hersee 7-way, X-147AA 7-pin Trailer Connector

1шт.

Выбрано товаров: 6
