Запчасти Case IH MAGNUM 220 (55.510.BP[06]) - WIRE HARNESS, CAB, OUTER (55) - ELECTRICAL SYSTEMS

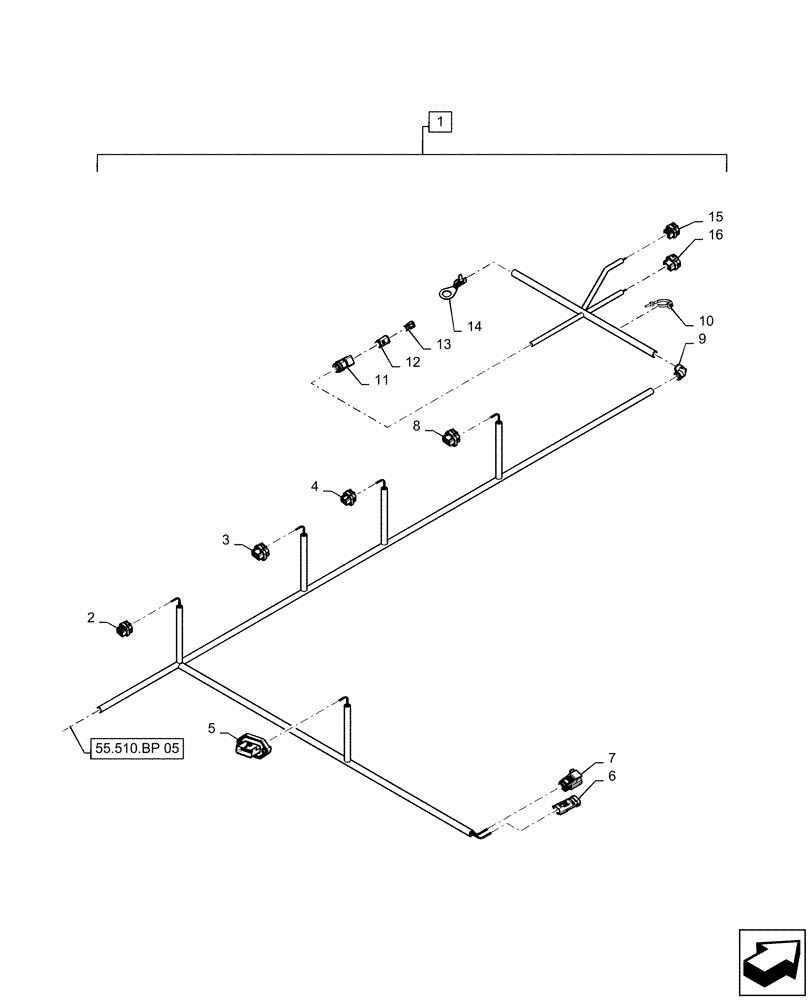

Схема запчастей Case IH MAGNUM 220 - (55.510.BP[06]) - WIRE HARNESS, CAB, OUTER (55) - ELECTRICAL SYSTEMS
10
13
12
3
14
9
11
2
55.510.bp 05
7
4
15
6
5
8
1
16

Артикул

Название

Примечание

Количество

1

47562403

WIRE HARNESS

Cab Outer, Incl 2 - 16 and Fig 55.510.BP [05]

1шт.

2

82028493

MULTIPOLE CONNECTOR,Female, 26 Pole

X-353 CN2A, AMP Superseal 1.0 26-way

1шт.

2

82017048

CABLE TERMINAL

AMP Superseal 1.0

8шт.

2

87410950

ELEC. TERMINAL PIN,Female

AMP Superseal 1.0

3шт.

2

82017049

PLUG

AMP Superseal 1.0 Cavity

14шт.

3

82028495

MULTIPOLE CONNECTOR,Female, 34 Pole

X-058 CN2B, AMP Superseal 1.0 34-way

1шт.

3

82017048

CABLE TERMINAL

AMP Superseal 1.0

15шт.

3

87410950

ELEC. TERMINAL PIN,Female

AMP Superseal 1.0

7шт.

3

82017049

PLUG

AMP Superseal 1.0 Cavity

12шт.

4

84130757

ELEC CONNECTOR,Female, 26 Cavities

X-490 CN3A, AMP Superseal 1.0 26-way

1шт.

4

82017048

CABLE TERMINAL

AMP Superseal 1.0

15шт.

4

87410950

ELEC. TERMINAL PIN,Female

AMP Superseal 1.0

6шт.

4

82017049

PLUG

AMP Superseal 1.0 Cavity

7шт.

5

84574704

ELEC CONNECTOR

X-290 To Autoguidance Harness, FCI Apex 2.8mm 14-way

1шт.

5

84395362

TERMINAL,Apex, 2.80mm, Male, 0.50 - 0.80mm2 Wire Range

FCI Apex

14шт.

6

87382909

WIRE CONNECTOR,Male

X-292 Autoguidance Harness, FCI Apex 2.8mm 2-way

1шт.

6

84395362

TERMINAL,Apex, 2.80mm, Male, 0.50 - 0.80mm2 Wire Range

FCI Apex

2шт.

7

87382908

WIRE CONNECTOR,Female

Dust Cap for X-292, FCI Apex 2.8mm 2-way

1шт.

7

84279937

PLUG,Apex, 2.80mm

2шт.

8

84130760

ELEC CONNECTOR,Female, 34 Cavities

X-355 CN3B, AMP Superseal 1.0 34-way

1шт.

8

82017048

CABLE TERMINAL

AMP Superseal 1.0

13шт.

8

87410950

ELEC. TERMINAL PIN,Female

AMP Superseal 1.0

8шт.

8

82017049

PLUG

AMP Superseal 1.0 Cavity

13шт.

9

84126246

ELBOW

1шт.

10

84292754

CLIP,Cable Tie W/ Fir Tree, 5mm OD x 203mm OAL

Fir Tree

1шт.

11

84256995

WIRE CONNECTOR

Deutsch DT Series 180-degree Backshell

1шт.

12

87695584

CONTACT HOUSING,Male, 2 Cavities

X-338 Backup Alarm Harness, Deutsch DT Series 2-way

1шт.

12

87695623

ELEC. TERMINAL PIN

Deutsch Size 16

2шт.

13

87695582

ELEC CONNECTOR,Female, 2 Pole

Dust Cap for X-338, Deutsch DT Series

1шт.

13

84068583

PLUG,12 - 16 Ga, White

Deutsch Sealing

2шт.

13

86500166

ELEC CONNECTOR

Wedge Lock, 2-way

1шт.

14

84122130

TERMINAL

X-2399 RH Rear Cab Outside, M8 Ring

1шт.

15

82028493

MULTIPOLE CONNECTOR,Female, 26 Pole

X-442 CN4A, AMP Superseal 1.0 26-way

1шт.

15

87410950

ELEC. TERMINAL PIN,Female

AMP Superseal 1.0

7шт.

15

82017048

CABLE TERMINAL

AMP Superseal 1.0

4шт.

15

82017049

PLUG

AMP Superseal 1.0 Cavity

15шт.

16

82028495

MULTIPOLE CONNECTOR,Female, 34 Pole

X-053 CN4B, AMP Superseal 1.0 34-way

1шт.

16

82017048

CABLE TERMINAL

AMP Superseal 1.0

7шт.

16

87410950

ELEC. TERMINAL PIN,Female

AMP Superseal 1.0

2шт.

16

82017049

PLUG

AMP Superseal 1.0 Cavity

25шт.

Выбрано товаров: 40
