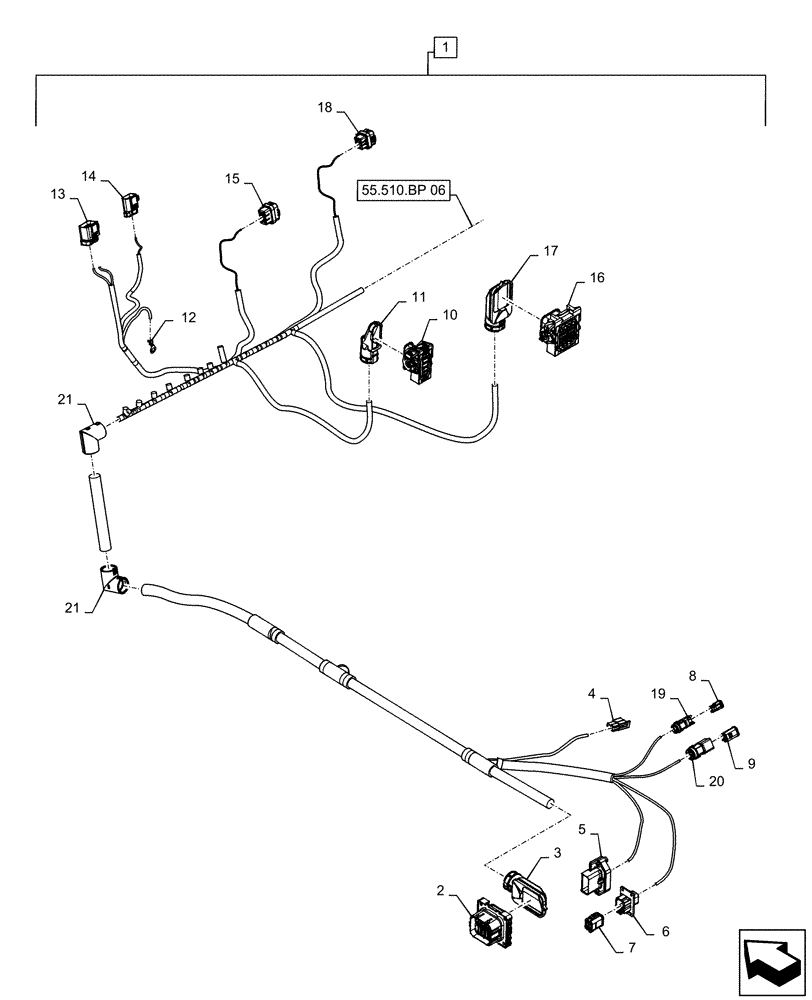

Запчасти Case IH MAGNUM 220 (55.510.BP[05]) - WIRE HARNESS, CAB, OUTER (55) - ELECTRICAL SYSTEMS

1

47562403

WIRE HARNESS

Cab Outer, Incl 2 - 21 and Fig 55.510.BP [06]

1шт.

2

84254824

ELEC CONNECTOR

X-026A To Transmission, Deutsch SRK FBS 64-way

1шт.

2

87696141

TERMINAL

Deutsch Size 20

55шт.

2

87694144

TERMINAL CONNECTOR,Male, 0.75 - 2 mm2

Deutsch Size 16

7шт.

2

87695623

ELEC. TERMINAL PIN

Deutsch Size 16

1шт.

2

84807680

PLUG

Deutsch Sealing, No. 20

1шт.

3

84539347

SHELL

Deutsch 90-degree Backshell

1шт.

4

87697530

ELEC CONNECTOR

X-090 Pressure Blower, Delphi 56 Series 2-way

1шт.

4

87693724

TERMINAL CONNECTOR,Tin, 1.00 - 2.00mm

Delphi 56 Series Long Male

2шт.

5

84574704

ELEC CONNECTOR

X-061A To Engine Harness, FCI Apex 2.8mm 14-way

1шт.

5

84395362

TERMINAL,Apex, 2.80mm, Male, 0.50 - 0.80mm2 Wire Range

FCI Apex

6шт.

5

84279937

PLUG,Apex, 2.80mm

FCI Apex

8шт.

6

87695891

ELEC CONNECTOR

X-028 To FSUS Harness, Suspended Axle Valve Harness, Deutsch DT Series 8-way

1шт.

6

87695623

ELEC. TERMINAL PIN

Deutsch Size 16

8шт.

6

84806919

PLUG,Wedge Lock

Wedge Lock, 8-way

1шт.

7

87695693

ELEC CONNECTOR

Dust Cap for X-028

1шт.

7

84068583

PLUG,12 - 16 Ga, White

Sealing

8шт.

8

87695582

ELEC CONNECTOR,Female, 2 Pole

X-352 Autoguidance Lockout Solenoid, Deutsch DT Series 2-way

1шт.

8

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Deutsch Size 16

2шт.

9

87694153

CONTACT HOUSING,Female, 4 Cavities

X-390 Steering Solenoid

1шт.

9

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Deutsch Size 16

4шт.

9

84074640

LOCKING TAB,Wedge Lock

Wedge Lock, 4-way

1шт.

10

84254836

ELEC CONNECTOR

X-008 To Cab Harness, Deutsch SRK HBP 32-way

1шт.

10

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

Deutsch Size 20

22шт.

10

84807680

PLUG

Deutsch Sealing, No. 20

7шт.

10

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Deutsch Size 16

2шт.

10

87694143

TERMINAL CONNECTOR,Female, 0.75 - 2 mm2

Deutsch Size 16

1шт.

11

84544327

SHELL

Deutsch 90-degree Backshell

1шт.

12

84122130

TERMINAL

X-675 RH Rear Cab Wall, M8 Ring

1шт.

13

87382924

ELEC CONNECTOR,Female, 10 Cavities

X-020 To Fender Harness, FCI Apex 2.8mm 10-way

1шт.

13

84395356

TERMINAL,Female, 2.8mm, 18-20

FCI Apex 2.8mm Female

7шт.

13

84395358

TERMINAL

FCI Apex 2.8mm Female

3шт.

14

87382916

ELEC CONNECTOR

X-021 To Fender Harness, FCI Apex 2.8mm 4-way

1шт.

14

84395356

TERMINAL,Female, 2.8mm, 18-20

FCI Apex 2.8mm Female

4шт.

15

82016219

MULTIPOLE CONNECTOR,Female, 26 Pole

X-350 CN1A, AMP Superseal 1.0 26-way

1шт.

15

82017048

CABLE TERMINAL

AMP Superseal 1.0

19шт.

15

82017049

PLUG

AMP Superseal 1.0 Cavity

7шт.

16

84254835

ELEC CONNECTOR

X-010 To Cab Harness, Deutsch SRK FBP 64-way

1шт.

16

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

Deutsch Size 20

43шт.

16

84807680

PLUG

Deutsch Sealing, No. 20

13шт.

16

87694143

TERMINAL CONNECTOR,Female, 0.75 - 2 mm2

Deutsch Size 16

4шт.

16

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Deutsch Size 16

3шт.

16

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Deutsch Size 16

1шт.

17

84539347

SHELL

Deutsch 90-degree Backshell

1шт.

18

87410946

MULTIPOLE CONNECTOR,Female, 34 Cavities

X-351 CN1B, AMP Superseal 1.0 34--way

1шт.

18

82017048

CABLE TERMINAL

AMP Superseal 1.0

15шт.

18

82017049

PLUG

AMP Superseal 1.0 Cavity

13шт.

18

87410950

ELEC. TERMINAL PIN,Female

AMP Superseal 1.0

6шт.

19

84256993

JUNCTION

Deutsch DT 180-degree Backshell

1шт.

20

84256997

WIRE CONNECTOR

Deutsch DT 180-degree Backshell

1шт.

21

87739958

ELBOW

2шт.
