Запчасти Case IH MAGNUM 220 (55.404.BS[06]) - LED LIGHTING - ASN ZERH08100 (55) - ELECTRICAL SYSTEMS

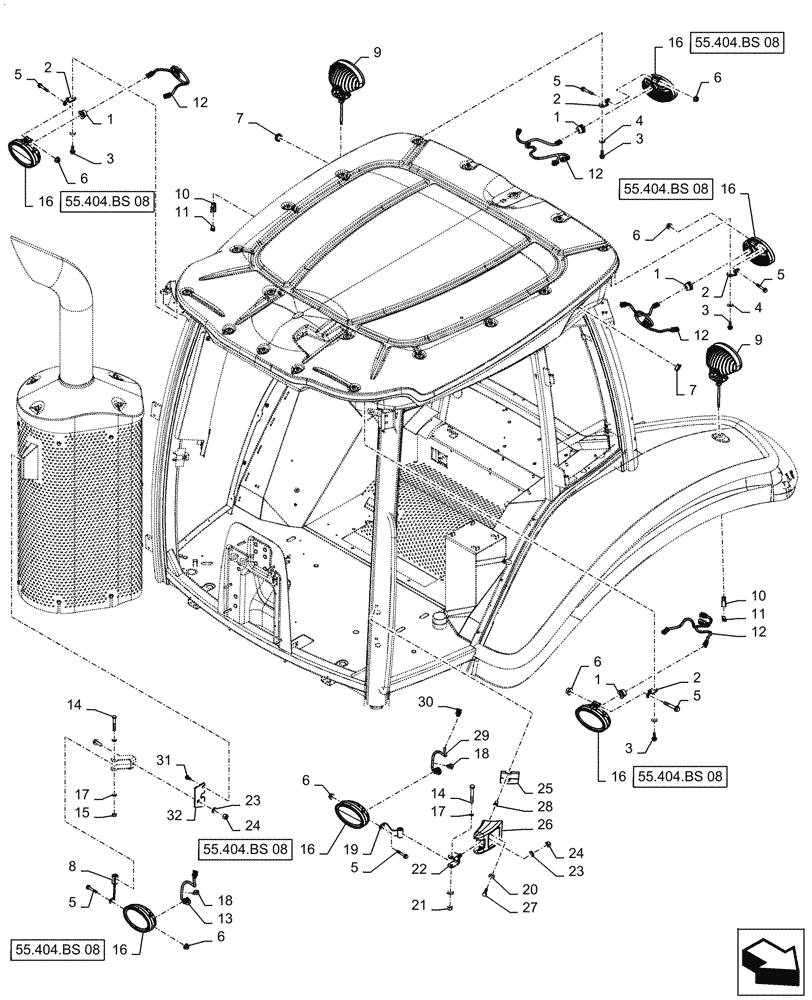

Схема запчастей Case IH MAGNUM 220 - (55.404.BS[06]) - LED LIGHTING - ASN ZERH08100 (55) - ELECTRICAL SYSTEMS
20
7
10
30
11
21
5
29
1
55.404.bs 08
18
16
31
16
55.404.bs 08
14
18
26
2
1
5
24
14
6
6
32
16
23
12
55.404.bs 08
17
24
5
4
4
13
9
55.404.bs 08
5
11
6
12
27
22
2
1
12
3
16
2
5
19
8
6
10
23
5
6
28
16
25
6
55.404.bs 08
3
2
12
3
7
17
3
1
15
16
55.404.bs 08
9

Артикул

Название

Примечание

Количество

1

182045A1

GROMMET

.57" OD x .394" ID

4шт.

2

47638870

BRACKET

Roof LED Light

4шт.

3

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

4шт.

4

11198179

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 2.2mm Thk

4шт.

5

844-8050

BOLT,M8 x 1.25 x 50mm, Cl 8.8

6шт.

6

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

6шт.

7

353-411

PLUG,Dome, 1.000" hole, Nylon

2шт.

8

47727135

BRACKET

RH, LED Lamp Mount

1шт.

9

47634610

WORK LAMP

Oval, 72W, Wide Flood

2шт.

10

225315C1

ELEC CONNECTOR,Male, 2 Pin

2шт.

11

225318C1

ELEC CONNECTOR,2 Pin

2шт.

12

47708460

WIRE HARNESS

LED Lights

4шт.

13

47715953

WIRE HARNESS

LED Light SCR

1шт.

14

814-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

1шт.

15

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

16

47669665

WORK LAMP

Oval, 20W, Flood

6шт.

17

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

18

14560087

CABLE TIE,103mm, Black

103 x 2.55mm, Nylon, Black

2шт.

19

47727130

BRACKET

LH, LED Lamp Mount

1шт.

20

256402A1

SPECIAL WASHER,9mm ID x 16mm OD x 1.6mm Thk

9 x 17 x 1.6mm

2шт.

21

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

22

84295608

BRACKET

Light Mount

2шт.

23

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

24

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

25

47737332

SEAL

NA Lamp

1шт.

26

47735785

BRACKET

Light Mounting LH

1шт.

27

514-637

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

1шт.

28

P35448

RIVET

M8 Long

1шт.

29

47684519

WIRE HARNESS

LED Work Light

1шт.

30

87687244

ELEC CONNECTOR

2W Tab Housing

1шт.

31

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

32

47501534

BRACKET

RH Work Light Mounting

1шт.

Выбрано товаров: 32
