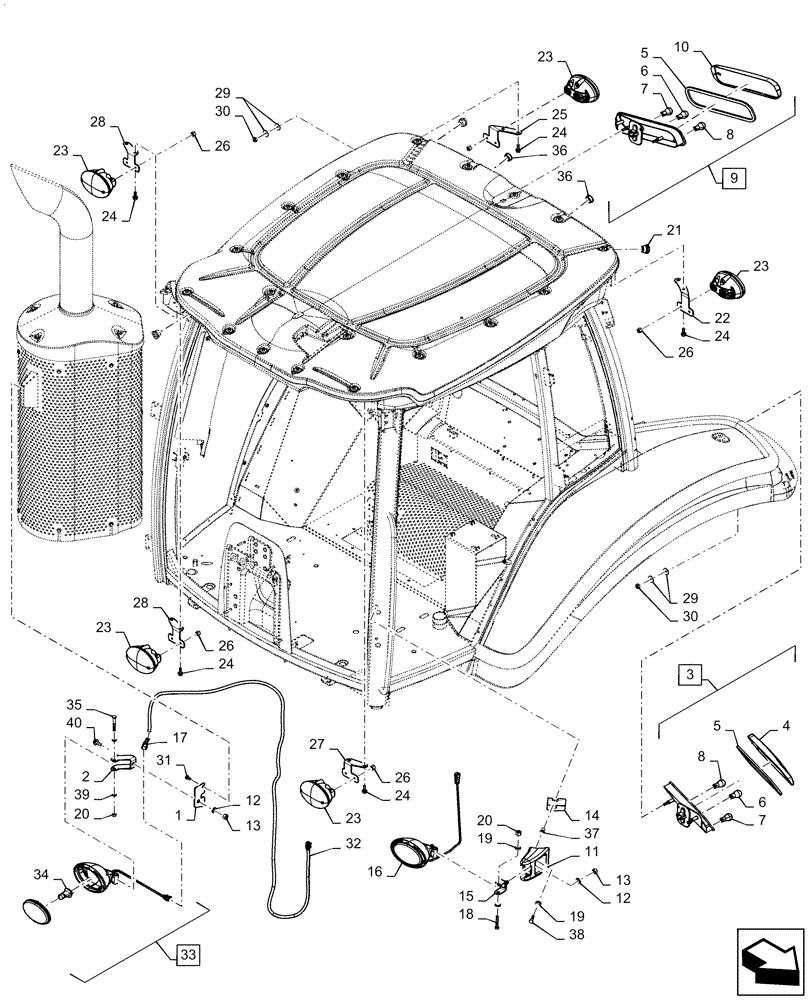

Запчасти Case IH MAGNUM 220 (55.404.BS[02]) - HOLOGEN SIGNAL LIGHTS - ASN ZERH08100 (55) - ELECTRICAL SYSTEMS

1

47501534

BRACKET

RH Worklight Mounting

1шт.

2

47730833

BRACKET

Halogen Light Mount

1шт.

3

82026300

TAIL LAMP,12V, 21W, Amber/Red

Rear Combination Lamp LH Incl 4 - 8

1шт.

4

87357815

LENS

Rear Combination Lamp LH

1шт.

5

87357827

SEAL

Rear Combination Lamps

2шт.

6

529068

BULB,#1156, 12V, 21W

2шт.

7

14144690

BULB,P21/5W, 12V, 21/5W

12V 21 / 5W

2шт.

8

14148090

BULB,PY21W, 12V, 21W

12V 21W

2шт.

9

82026301

TAIL LAMP,12V, 21W, Amber/Red

Rear Combination Lamp RH Incl 5 - 8, 10

1шт.

10

87357816

LENS

Rear Combination Lamp RH

1шт.

11

47735785

BRACKET

Light Mounting - LH

1шт.

12

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

13

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

14

47737332

SEAL

NA Lamp

1шт.

15

84295608

BRACKET

Light Mount

1шт.

16

87343388

LAMP

Work

1шт.

17

87687244

ELEC CONNECTOR

2W Tab Housing

1шт.

18

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

19

256402A1

SPECIAL WASHER,9mm ID x 16mm OD x 1.6mm Thk

9 x 17 x 1.6mm

2шт.

20

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

21

182045A1

GROMMET

.57" OD x .394" ID

4шт.

22

47638860

BRACKET

Signal Lamp LH Rear

1шт.

23

84269970

LAMP

Roof Oval

4шт.

24

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

8шт.

25

47638861

BRACKET

Lamp RH Rear

1шт.

26

832-10405

NUT,M5 x .8, Cl 8

8шт.

27

47638862

BRACKET

Signal Lamp LH Front

1шт.

28

47638863

BRACKET

Signal Lamp RH Front

1шт.

29

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

8шт.

30

829-1406

NUT,Hex, M6 x 1, Cl 10.9

4шт.

31

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

32

47674765

WIRE HARNESS

RH Front WL

1шт.

33

84269973

WORK LAMP,Halogen, 12V, 55W, Clear

RH Oval Flood Incl 34

1шт.

34

1312210C2

BULB,Halogen H3, 12V, 55W

Halogen H3 12V 55W

1шт.

35

814-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

1шт.

36

353-411

PLUG,Dome, 1.000" hole, Nylon

2шт.

37

P35448

RIVET

M8 Long

1шт.

38

514-637

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

1шт.

39

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

40

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

1шт.
