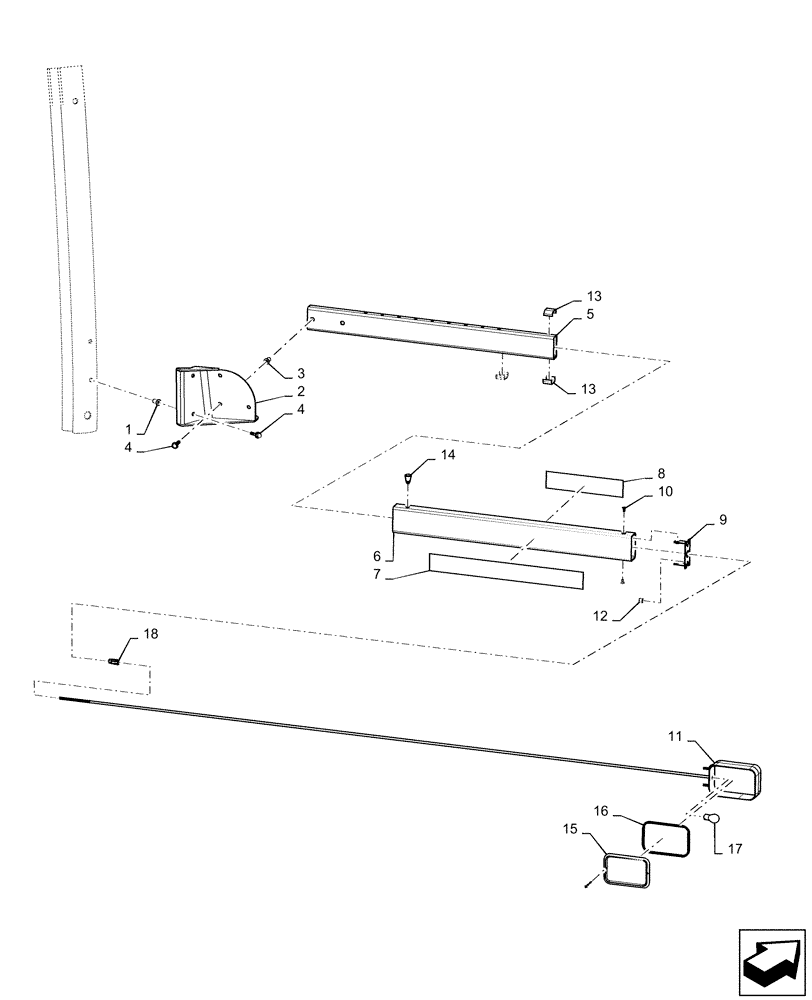

Запчасти Case IH MAGNUM 220 (55.404.AF[02]) - WIDE TRANSPORT LAMP ASSEMBLY - ADJUSTABLE (55) - ELECTRICAL SYSTEMS

1

P35448

RIVET

Nut

8шт.

2

87451776

BRACKET

RH Marker Mount

1шт.

3

87451777

BRACKET

LH Marker Mount, Not Illustrated

1шт.

4

514-636

BOLT,Hex Serr Flg, M8 x 30mm

8шт.

5

87444299

TUBE,67.25 mm OD x 737 mm L

Marker Light Inner, Adjustable

2шт.

6

87444300

TUBE,714 mm L x 38.1 mm W x 76.2 mm H

Marker Light Outer, Adjustable

2шт.

7

297221A1

DECAL

Reflector, Red and Orange

2шт.

8

297223A1

DECAL

Reflector, Yellow

2шт.

9

362496A1

BRACKET

2шт.

10

569-3

HEX SOC SCREW,Flat Hd, M5 x 10mm, Cl 10.9

4шт.

11

87444301

LIGHT ASSY.,12V, Amber

Wide Marker, Clearance, Incl 15 - 18

2шт.

12

832-10405

NUT,M5 x .8, Cl 8

4шт.

13

321663A1

SLIDING PAD

Velcro Glide

10шт.

14

400039A1

KNOB

Plunger, Wide Marker Light

2шт.

15

232212A1

LENS,135.8mm L x 90mm W, Amber

Amber

4шт.

16

233561A1

O-RING,0.07" Thk x 4379" ID, -48, 70 Duro

4шт.

17

A41264

BULB,#1156, 12V

2шт.

18

222135A1

CONNECTOR, ELEC

Deutsch DTM Series 2-way

2шт.

18

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

Deutsch Size 20

4шт.

18

87696145

LOCKING TAB

Wedge Lock

2шт.
