Запчасти Case IH MAGNUM 220 (55.404.AF[01]) - WIDE TRANSPORT LAMP ASSEMBLY - FIXED (55) - ELECTRICAL SYSTEMS

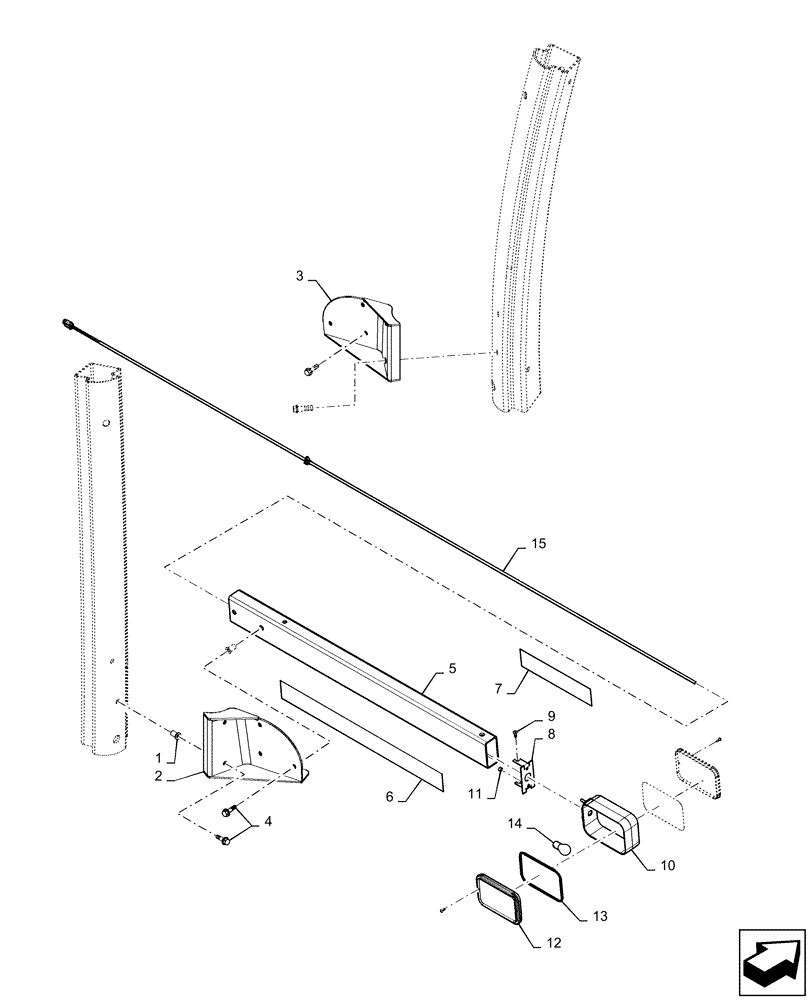

Схема запчастей Case IH MAGNUM 220 - (55.404.AF[01]) - WIDE TRANSPORT LAMP ASSEMBLY - FIXED (55) - ELECTRICAL SYSTEMS
11
2
10
8
9
5
15
14
13
6
7
12
1
3
4

Артикул

Название

Примечание

Количество

1

P35448

RIVET

Nut

8шт.

2

87451776

BRACKET

RH Marker Mount

1шт.

3

87451777

BRACKET

LH Marker Mount

1шт.

4

514-636

BOLT,Hex Serr Flg, M8 x 30mm

8шт.

5

87444298

TUBE,842 mm L x 38.1 mm W x 76.2 mm H

Marker Light, Fixed

2шт.

6

297221A1

DECAL

Reflector, Red and Orange

2шт.

7

297223A1

DECAL

Reflector, Yellow

2шт.

8

362496A1

BRACKET

2шт.

9

569-3

HEX SOC SCREW,Flat Hd, M5 x 10mm, Cl 10.9

4шт.

10

87444301

LIGHT ASSY.,12V, Amber

Wide Marker, Clearance, Incl 12 - 15

2шт.

11

832-10405

NUT,M5 x .8, Cl 8

4шт.

12

232212A1

LENS,135.8mm L x 90mm W, Amber

Amber

4шт.

13

233561A1

O-RING,0.07" Thk x 4379" ID, -48, 70 Duro

4шт.

14

A41264

BULB,#1156, 12V

2шт.

15

222135A1

CONNECTOR, ELEC

Deutsch DTM Series 2-way

2шт.

15

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

Deutsch Size 20

4шт.

15

87696145

LOCKING TAB

Wedge Lock

2шт.

Выбрано товаров: 17
