Запчасти Case IH MAGNUM 220 (55.101.AC[01]) - VAR- 420104, 420105 - CHASSIS WIRE HARNESS - CVT - BSN - ZERH08099 (55) - ELECTRICAL SYSTEMS

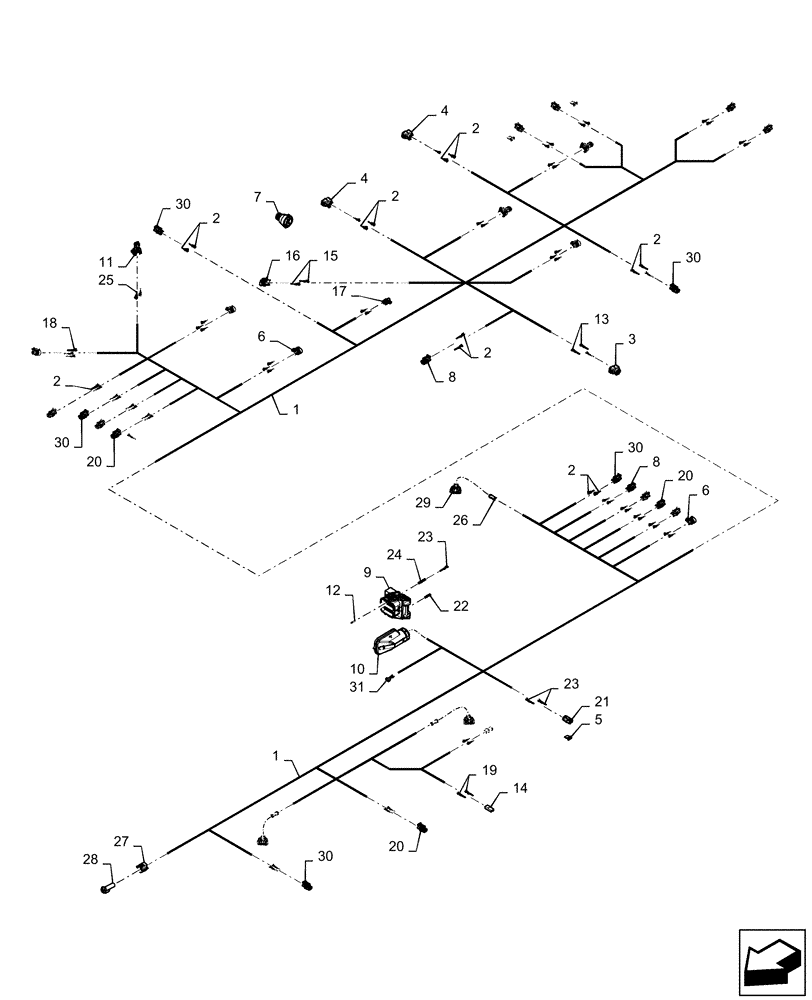

Схема запчастей Case IH MAGNUM 220 - (55.101.AC[01]) - VAR- 420104, 420105 - CHASSIS WIRE HARNESS - CVT - BSN - ZERH08099 (55) - ELECTRICAL SYSTEMS
30
2
1
18
11
31
10
6
28
14
23
20
8
7
6
22
2
20
25
19
4
2
30
24
9
30
23
5
20
2
30
12
27
17
15
3
8
26
30
21
2
1
13
4
29
2
2
16

Артикул

Название

Примечание

Количество

1

84581799

WIRE HARNESS

CVT, Incl 2 - 31

1шт.

2

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

AMP Mini MIC

39шт.

3

82865818

ELEC CONNECTOR

FCI JPT 3-way, X-251 PTO Speed Sensor, X-258 Draft Pin RH, X-266 Draft Pin LH

3шт.

4

84062580

CONNECTOR, ELEC

AMP Superseal 1.5 3-way, X-270 Rockshaft Potentiometer, X-300 PTO Twist Sensor

2шт.

5

84074638

LOCKING TAB,Locking Wedge, Green

Wedge Lock 2-way

3шт.

6

84078681

WIRE CONNECTOR,Female

Delphi Metri-Pack .150 3-way, X-546 A Clutch Pressure Sensor, X-547 B Clutch Pressure Sensor, X-1158 Transmission Pressure Sensor, X-1284 Vane Pump Pressure, X-1720 Brake Pressure Right

5шт.

7

84137907

ELEC CONNECTOR

Secondary Lock 2-way

1шт.

8

84152155

ELEC CONNECTOR

AMP Superseal 1.5 2-way, X-286 RPTO Brake Solenoid, X-635 Clutch Solenoid A, X-638 Clutch Solenoid D (FPS)/Synchro F3 Solenoid

3шт.

9

84254835

ELEC CONNECTOR

Deutsch 64-way, X-026A To Outside Cab Harness

1шт.

10

84539347

SHELL

Backshell, 90 Degree

1шт.

11

84607243

ELEC CONNECTOR,Female, 2 Cavities

AMP JPT 2-way, X-291 Transmission Oil Temperature Sensor

1шт.

12

84807680

PLUG

Deutsch Sealing No. 20

11шт.

13

87475406

TERMINAL

DCS 2.8mm

9шт.

14

87581782

ELEC CONNECTOR,Female

AMP Posi-Lock .250 1-way, X-1285 and X-1286 Steer/Brake Boost Pressure

2шт.

15

87679438

WIRE CONNECTOR,Female

Delphi Metri-Pack .280 2-way, X-474 Hydro Filter

1шт.

16

87680656

CONTACT

Delphi Metri-Pack .280 Female

2шт.

17

87687239

CONTACT HOUSING,Female, 1 Pole

AMP Superseal 1.5 1-way, X-473 Low Hyd Charge Sw

1шт.

18

87690510

ELEC. TERMINAL PIN,Female, 0.75 - 1 mm2

Delphi Metri-Pack .150

15шт.

19

87691548

TERMINAL

Positive Lock

2шт.

20

87691973

WIRE CONNECTOR,Female

AMP Superseal 1.5 2-way, X-287 Rear PTO Solenoid, X-637 Synchro F1 Solenoid, X-641 Synchro F4 Solenoid, X-654 Brake Lube Solenoid

4шт.

21

87695582

ELEC CONNECTOR,Female, 2 Pole

Deutsch DT Series 2-way, X-268 EDC Valve Raise, X-272 EDC Valve Lower, X-645 Hydro 1 Solenoid

3шт.

22

87695618

TERMINAL

Solid Socket Contact Size 16

1шт.

23

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Stamped Socket Contact Size 16

11шт.

24

87697866

TERMINAL,Female, Nickel, 0.50 - 1.00mm

Solid Socket Contact Size 20

47шт.

25

87702681

TERMINAL

JPT

2шт.

26

87705971

CONTACT

Sensor

9шт.

27

87712738

ELEC CONNECTOR

Altair Micro-Pin 4-way, X-2014 Radar

1шт.

28

87718312

CABLE TERMINAL

Female

4шт.

29

87747172

WIRE CONNECTOR,Female

Bosch BDK 2.8 3-way, X-532 Synchro F1-F3 Sensor, X-533 Synchro F2-R1 Sensor, X-534 Synchro F4-R2 Sensor

3шт.

30

82012083

WIRE CONNECTOR,Female

AMP Superseal 1.5 2-way, X-285 2WD Solenoid, X-358 Dump Solenoid, X-478 Diff Lock Solenoid, X-636 Clutch Solenoid B, X-639 Synchro F2 Solenoid, X-643 Synchro R2 Solenoid, X-644 Synchro R1 Solenoid, X-653 Hydro Out Ring Speed Sensor, X-1283 Trans Output Speed Sensor

9шт.

31

NSS

NOT SOLD SEPARAT

TERMINAL, X-059 Cab Mount/Support Ground, Incl in 1

1шт.

Выбрано товаров: 31
