Запчасти Case IH MAGNUM 220 (55.045.AD[02]) - VAR- 420228 - WIRE HARNESS, SUSPENDED AXLE SENSOR (55) - ELECTRICAL SYSTEMS

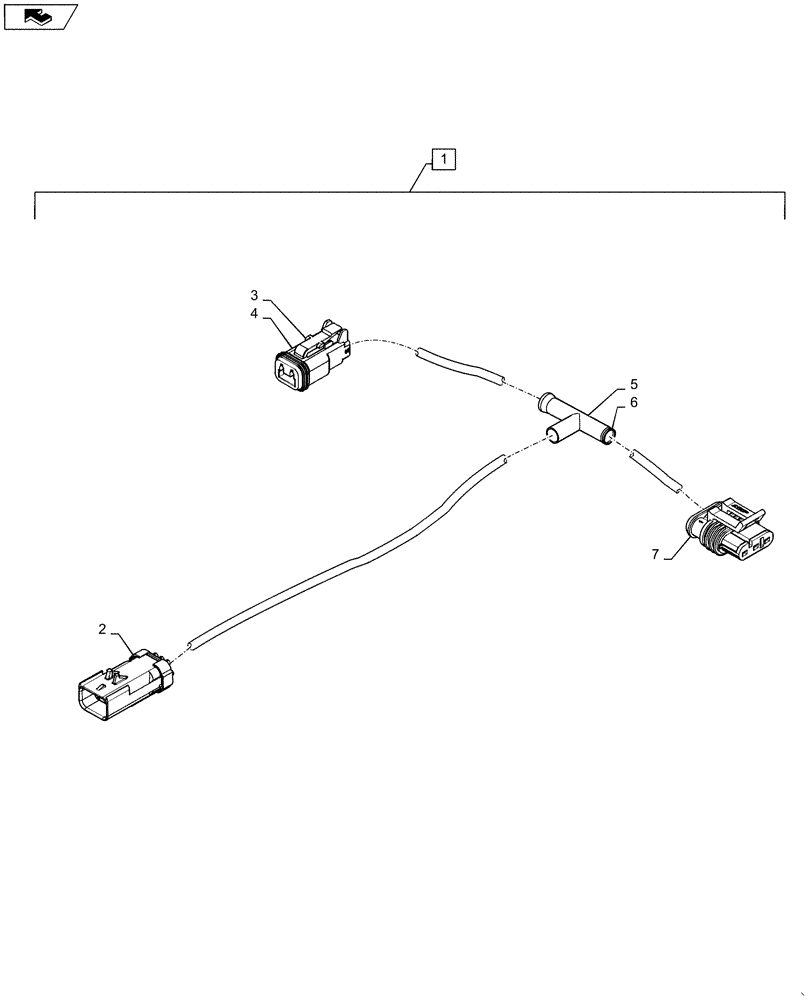

Схема запчастей Case IH MAGNUM 220 - (55.045.AD[02]) - VAR- 420228 - WIRE HARNESS, SUSPENDED AXLE SENSOR (55) - ELECTRICAL SYSTEMS
2
4
7
5
6
1
3

Артикул

Название

Примечание

Количество

1

47385194

WIRE HARNESS

Suspended Axle Sensor, Incl 2 - 7

1шт.

2

87382919

WIRE CONNECTOR,Male, 6 Cavities

X-2000, To Engine Harness

1шт.

2

84395362

TERMINAL,Apex, 2.80mm, Male, 0.50 - 0.80mm2 Wire Range

5шт.

2

84279937

PLUG,Apex, 2.80mm

Cavity Plug

1шт.

3

87695582

ELEC CONNECTOR,Female, 2 Pole

X-241, Suspended Axle Lockout Valve

1шт.

3

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Deutsch Size 16

2шт.

4

84074638

LOCKING TAB,Locking Wedge, Green

Wedge Lock, 2-way

1шт.

5

82012343

ELEC CONNECTOR

T-Piece

1шт.

6

84121591

ELEC CONNECTOR

Reducer

2шт.

7

84062580

CONNECTOR, ELEC

X-193, Suspended Axle Sensor

1шт.

7

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

AMP Mini Mic

3шт.

Выбрано товаров: 11
