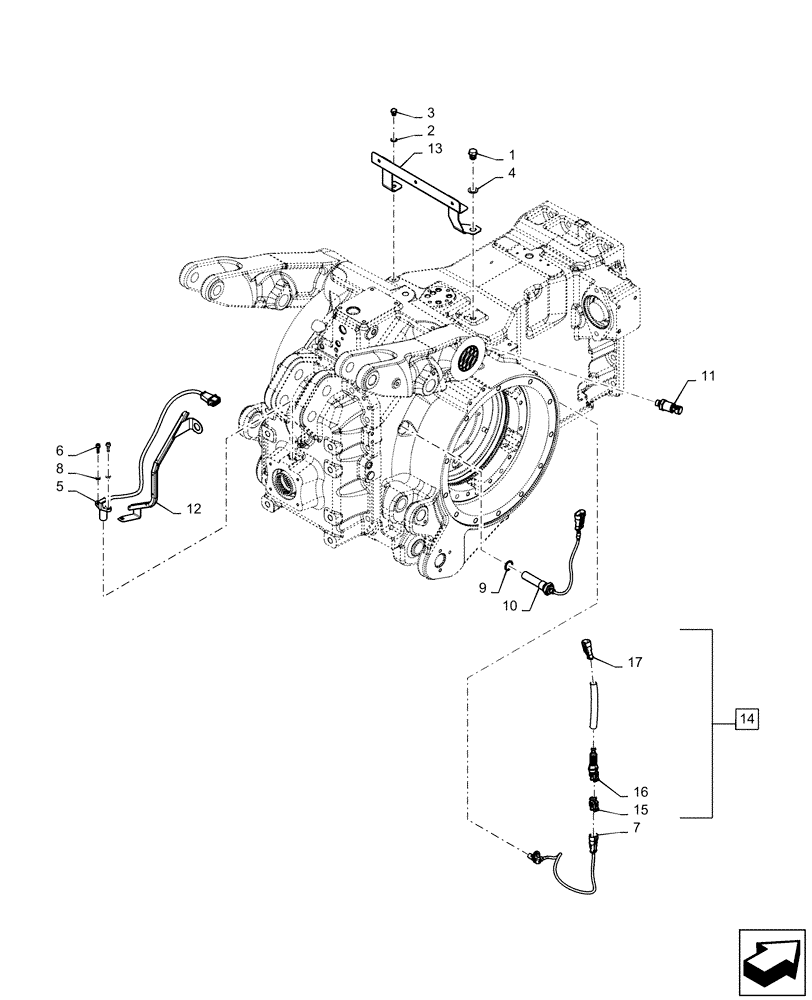

Запчасти Case IH MAGNUM 220 (55.020.AB[02]) - VAR- 420104, 420105 - SENSORS, TRANSMISSION - CVT (55) - ELECTRICAL SYSTEMS

1

87535222

PLUG,Hex, M10 x 1 x 13mm

1шт.

2

87316678

SEALING WASHER,10mm ID x 16mm OD x 2.3mm Thk

1шт.

3

10300511

PLUG,M12 x 1.5 x 12, Cl5.8

1шт.

4

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

1шт.

5

84555913

SENSOR

PTO Speed

1шт.

6

14304221

HEX SOC SCREW,M5 x 16mm, Cl 8.8, Full Thd

2шт.

7

84243033

SENSOR

Wheel Speed

1шт.

8

13506701

WASHER,5.15mm ID x 10mm OD x 0.8mm Thk

2шт.

9

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

1шт.

10

47370195

SENSOR

Speed

1шт.

11

84407732

SENSOR

Brake Pressure

1шт.

12

87624045

TUBE

PTO Wire Protection Channel

1шт.

13

87708216

SUPPORT

Bracket, Rear Harness Support

1шт.

14

84241336

HARNESS

Speed Sensor, Incl 15 - 17

1шт.

15

82012083

WIRE CONNECTOR,Female

1шт.

16

84136475

BOOT

1шт.

17

87687244

ELEC CONNECTOR

1шт.
