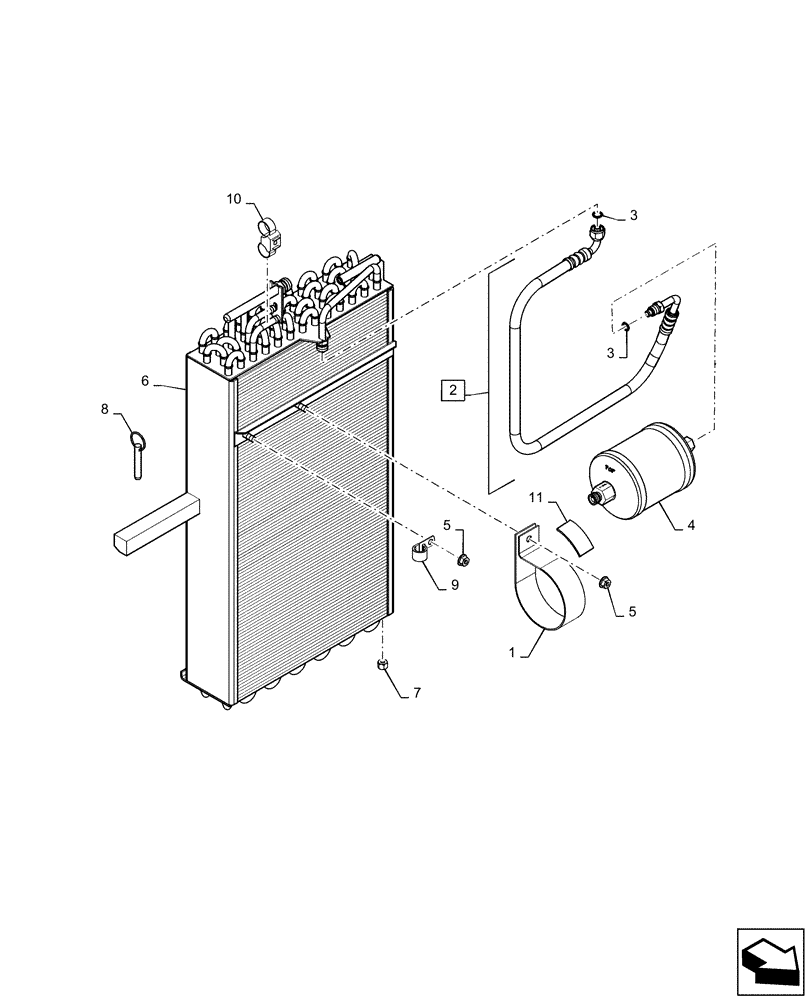

Запчасти Case IH MAGNUM 220 (50.200.AK[01]) - CONDENSER, AIR CONDITIONING (50) - CAB CLIMATE CONTROL

1

87361944

CLAMP

Receiver-Dryer

1шт.

2

87312057

A/C HOSE,7.9mm ID x 864mm L

Condenser to Receiver-Dryer, Incl 3

1шт.

3

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

2шт.

4

295006A1

RECEIVER-DRYER

1шт.

5

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

2шт.

6

87360035

CONDENSER

Combination A/C Condenser and Fuel Cooler

1шт.

7

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

8

86017630

HITCH PIN,9.53mm OD x 50.55mm L

1шт.

9

516-22158

CLAMP,J, 11/16" Insul, 5/16" Bolt

1шт.

10

86991000

CLAMP

Dual Tie

1шт.

11

321663A1

SLIDING PAD

Velcro

1шт.

12

48052841

CAP

Nut, Plastic, M8; Not Illustrated

2шт.
