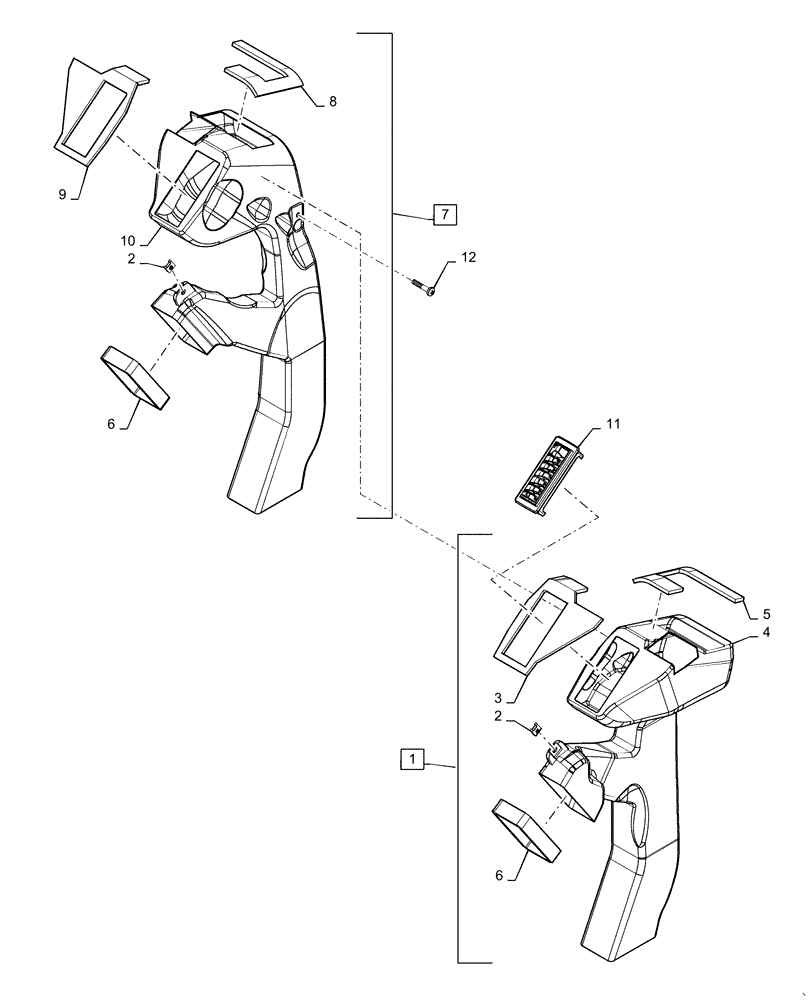

Запчасти Case IH MAGNUM 220 (50.104.AO[02]) - AIR DUCTS, CAB (50) - CAB CLIMATE CONTROL

1

87310029

DUCT

Assy, LH Panel; Incl 2 - 6

1шт.

2

131-839

SPRING NUT,U, #10-16, Panel type

2шт.

3

87310035

GASKET

LH Duct, Face Louver

1шт.

4

NSS

NOT SOLD SEPARAT

DUCK LH; Incl in 1

1шт.

5

87310033

GASKET

LH Duct, Defrost

1шт.

6

87456015

GASKET

Foot Louver

2шт.

7

84162547

DUCT

Assy, RH Panel; Incl 2, 6, 8 - 10

1шт.

8

87310034

GASKET

RH Duct, Defrost

1шт.

9

87310036

GASKET

RH Duct, Face Louver

1шт.

10

NSS

NOT SOLD SEPARAT

DUCK RH; Incl in 7

1шт.

11

363882A1

VENT

Air Duck

7шт.

12

840-1525

SCREW,Pan, M5 x 25mm, Cl 4.8

2шт.
