(41.101.AB[02]) - STEERING COLUMN

Запчасти Case IH MAGNUM 220 (41.101.AB[02]) - STEERING COLUMN (41) - STEERING

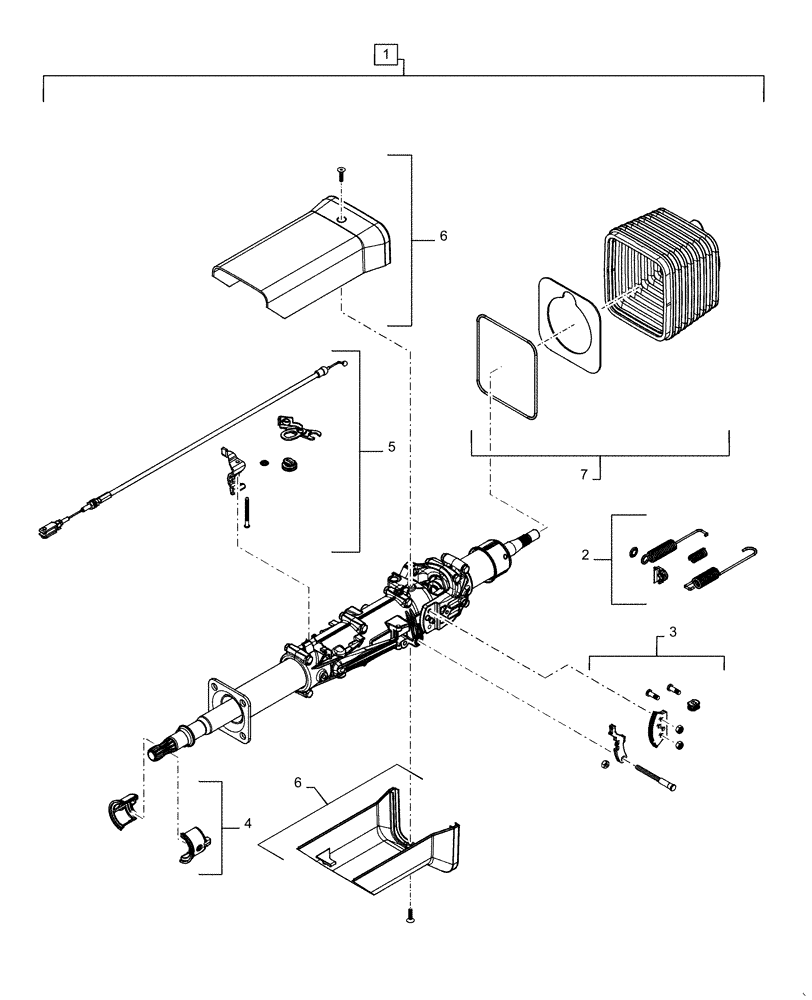

Схема запчастей Case IH MAGNUM 220 - (41.101.AB[02]) - STEERING COLUMN (41) - STEERING
2
6
5
3
7
1
4
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84269917

STEERING COLUMN

Incl 2 - 7

1шт.

2

87400095

SERVICE KIT

Steering Column Springs

1шт.

3

87400096

SERVICE KIT

Tilt Locking Device

1шт.

4

318943A1

BEARING ASSY

Steering Column

1шт.

5

87400098

SERVICE KIT

Steering Column Cover

1шт.

6

87400099

SERVICE KIT

Steering Column Bellows

1шт.

7

87400097

SERVICE KIT

Steering Column Lever Device

1шт.
