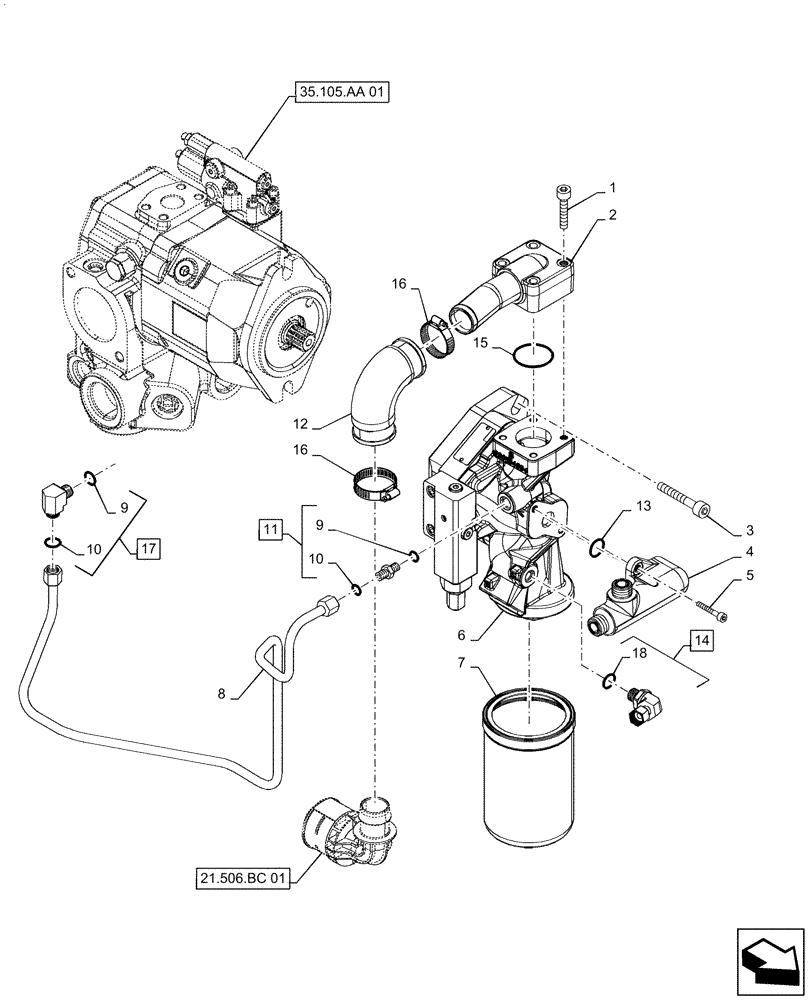

Запчасти Case IH MAGNUM 220 (35.322.AM[01]) - VAR- 420104, 420105 - VANE PUMP - CVT (35) - HYDRAULIC SYSTEMS

1

14306821

HEX SOC SCREW,M8 x 45mm, Cl 8.8

4шт.

2

87608113

TUBE

1шт.

3

14311824

SCREW

M14 x 1.5 x 45

2шт.

4

84479353

FLANGE

Pump

1шт.

5

14306421

HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 8.8

2шт.

6

87738887

PUMP,45 CC

Vane

1шт.

6

87738887R

REMAN-HYD PUMP

MAGNUM 180, MAGNUM 190, MAGNUM 210, MAGNUM 225, ALL TIER 4 ZARH06086 AND AFTER

1шт.

6

87738887C

CORE-HYDRAULIC PUMP

Return Number

1шт.

7

87588814

HYDRAULIC OIL FILTER,151mm L

1шт.

8

84342583

HYD TUBE

1шт.

9

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

2шт.

10

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

11

86579674

HYD CONNECTOR,13/16"-16 ORFS x M14 x 1.5 ORB

Incl 9 - 10

2шт.

12

87608355

ELBOW,31mm OD x 45mm ID x 60/65mm

1шт.

13

14453880

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

1шт.

14

84122478

ELBOW,M12 x 1.5 x 45mm

Incl 18

1шт.

15

14454980

O-RING,0.07" Thk x 1.864" ID, -32, Cl 5, 75 Duro

1шт.

16

82036709

HOSE CLAMP,25mm - 40mm, Worm Gear

2шт.

17

86579689

ELBOW,90 Degree, 13/16" - 16 ORFS x M14 x 1.5 ORB

Incl 9 - 10

1шт.

18

14437685

O-RING,9.30mm ID x 2.40mm

1шт.
