Запчасти Case IH MAGNUM 220 (25.122.AL[04]) - SUSPENDED AXLE, HYDRAULIC SYSTEM - CVT (25) - FRONT AXLE SYSTEM

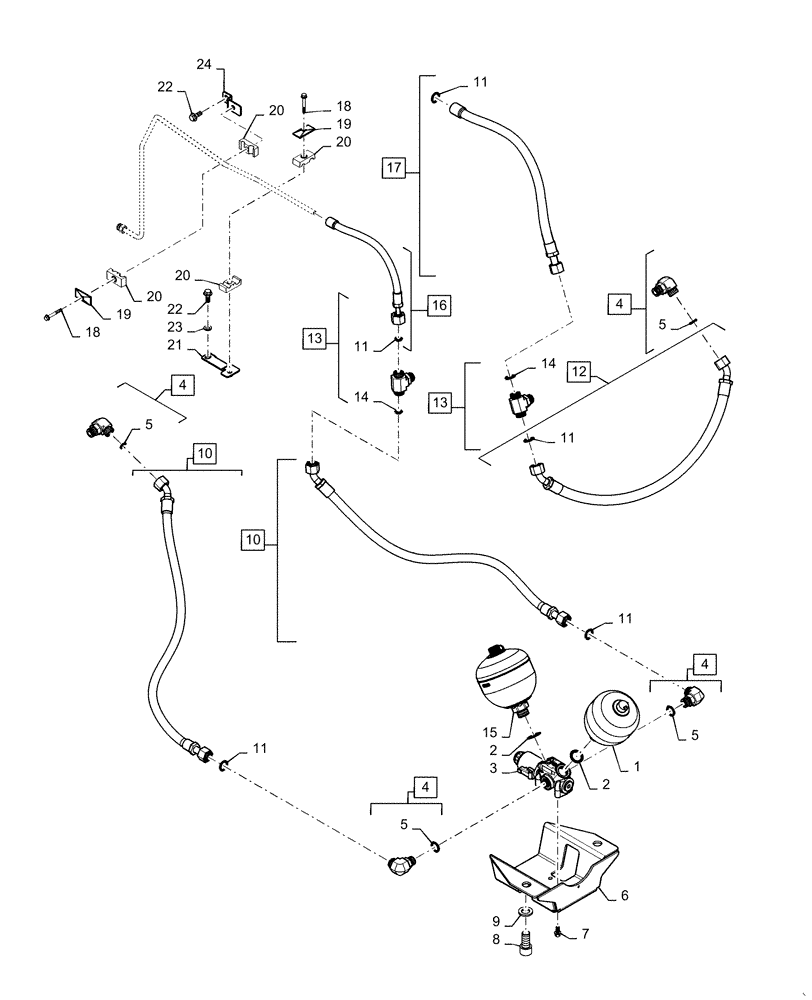

Схема запчастей Case IH MAGNUM 220 - (25.122.AL[04]) - SUSPENDED AXLE, HYDRAULIC SYSTEM - CVT (25) - FRONT AXLE SYSTEM
11
22
24
7
16
2
5
17
5
14
20
20
12
19
5
23
13
18
9
8
11
5
20
4
4
6
14
1
10
2
3
22
4
19
13
21
10
20
4
11
18
11
11
15

Артикул

Название

Примечание

Количество

1

84403857

ACCUMULATOR,1.4L

1.4 Liter/330 Bar

1шт.

2

340493A2

SEALING RING,30.3mm ID x 42.8mm OD x 2.5mm Thk

Usit U33.7 x 42 x 2mm

2шт.

3

87757028

HYDRAULIC VALVE

Suspended Axle Lockout

1шт.

4

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl 5

4шт.

5

70923843

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

4шт.

6

84586681

BRACKET

Suspended Axle Blkg Valve Support

1шт.

7

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

4шт.

8

2186808

HEX SOC SCREW,M24 x 50mm, Cl 8.8

2шт.

9

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

2шт.

10

84586684

HOSE,19.05mm ID x 1044mm L, SAE 100R17

Suspended Axle Accumulator To Cylinder; Incl 11

2шт.

11

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

7шт.

12

84513456

HOSE,19.05mm ID x 986mm L, SAE 100R17

Suspened Axle, Crossover; Incl 11

1шт.

13

700-424

TEE,1-3/16" - 12 Male ORFS x 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl 11, 14

2шт.

14

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

2шт.

15

84414124

ACCUMULATOR,2L

2 Liter/330 Bar

1шт.

16

47484357

HYDRAULIC HOSE

Suspended Axle Cylinder Head Supply; Incl 11

1шт.

17

47484359

HYD TUBE

Suspended Axle Valve Port B; Incl 11

1шт.

18

844-8060

BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8

2шт.

19

1347127C1

PLATE

Tube Clamp

2шт.

20

87000153

CLAMP,2 Hole, 19.05 - 12.70 mm Dia Ribbed, 37mm H x 67mm L

2 Hole 19.05-12.7mm Dia Ribbed

2шт.

21

84592712

BRACKET

Hose Clamp

1шт.

22

844-12030

BOLT,Hvy Hex, M12 x 30mm, Cl 8.8

2шт.

23

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

1шт.

24

84592713

BRACKET

Hose Clamp

1шт.

Выбрано товаров: 24
