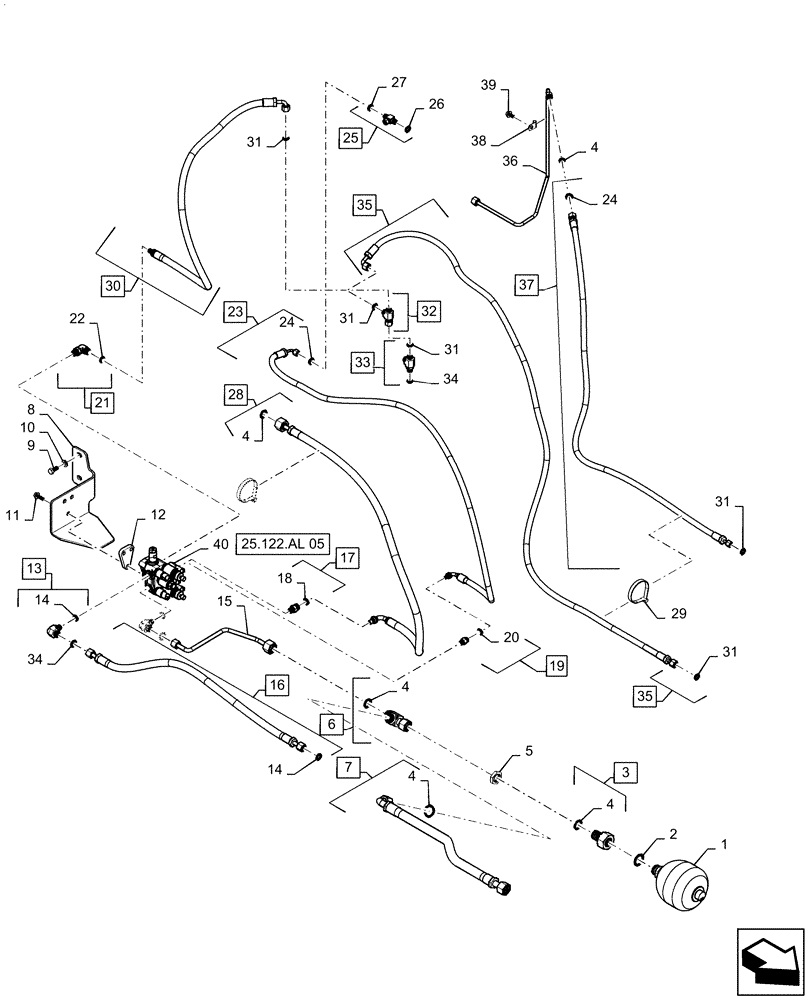

Запчасти Case IH MAGNUM 220 (25.122.AL[03]) - SUSPENDED AXLE, HYDRAULIC SYSTEM - CVT (25) - FRONT AXLE SYSTEM

1

84414123

ACCUMULATOR,1.4L

1.4 Liter/330 Bar

1шт.

2

340493A2

SEALING RING,30.3mm ID x 42.8mm OD x 2.5mm Thk

Usit U33.7 x 42 x 2mm

1шт.

3

84477431

ADAPTER

M33 x 1.5 x 1-3/16 ORFS; Incl 4

1шт.

4

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

4шт.

5

701-1249

BHD LOCK NUT,1-3/16" - 12

1шт.

6

87016915

TEE,1-3/16"-12 ORFS x 13.9mm ORB

Union, Swivel Run ORFS 20mm; Incl 4

1шт.

7

47488354

HYDRAULIC HOSE,19.05mm ID x 585mm L, SAE 100R17

Suspended Axle Valve Port B; Incl 4

1шт.

8

84281727

BRACKET

Suspended Axle Valve Mounting

1шт.

9

86637974

BOLT,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

10

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

2шт.

11

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

3шт.

12

87659339

SPACER

Valve

1шт.

13

86579690

ELBOW,90 Degree, 13/16"-18 ORFS x M16 x 1.5 ORB

Incl 14, 34

2шт.

14

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

15

84586687

TUBE

Suspended Axle Valve To Accumulator

1шт.

16

84586688

HOSE,12.7mm ID x 910mm L, SAE 100R17

Suspended Axle Valve Port A; Incl 14

1шт.

17

87331073

HYD CONNECTOR,M14 x 1.5 Male ORB x -06 Fem STC

M14 Male ORB x -06 STC; Incl 18

1шт.

18

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

19

87476353

HYD CONNECTOR

M16 ORB -08 STC; Incl 20

1шт.

20

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

21

87491814

FITTING

Elbow 90, M18 ORB x -8 STC; Incl 22

1шт.

22

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

23

84314812

HYDRAULIC HOSE

Suspended Axle Valve LS; Incl 24

1шт.

24

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

25

82018814

CHECK VALVE,9/16" - 18 JIC x 9/16" - 18 ORFS x 9/16" - 18 ORFS

Incl 26 - 27

1шт.

26

81827528

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

27

81844850

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

28

84315190

HYDRAULIC HOSE

Suspended Axle Valve Supply; Incl 4

1шт.

29

86991007

CABLE TIE,509mm L

20 x .28"; Nylon, Black

4шт.

30

84261787

HYDRAULIC HOSE

Suspended Axle Valve Return; Incl 31

1шт.

31

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

5шт.

32

84989848

TEE,11/16" - 16 ORFS x 11/16" - 16 ORFS x 11/16" - 16 JIC

Union Tee, ORFS Swivel Run; Incl 31

1шт.

33

86579701

TEE,11/16"-16 ORFS x M16 x 1.5 ORB Run

Incl 31, 34

1шт.

34

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

3шт.

35

47577616

HYDRAULIC HOSE

Diff Lock Drain; Insl 31

1шт.

36

84167888

HYD TUBE,0.375" OD

1шт.

37

84586691

HOSE,9.53mm ID x 1630mm L, SAE 100R2

Diff Lock Supply; Incl 24, 31

1шт.

38

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

2шт.

39

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

2шт.

40

87668716

VALVE

Suspended Axle Control

1шт.
