Запчасти Case IH MAGNUM 220 (25.314.AH[02]) - - VAR - 429327, MFD CLASS 4 AXLE, DRIVE SHAFT & SHIELD (23) - FOUR WHEEL DRIVE SYSTEM

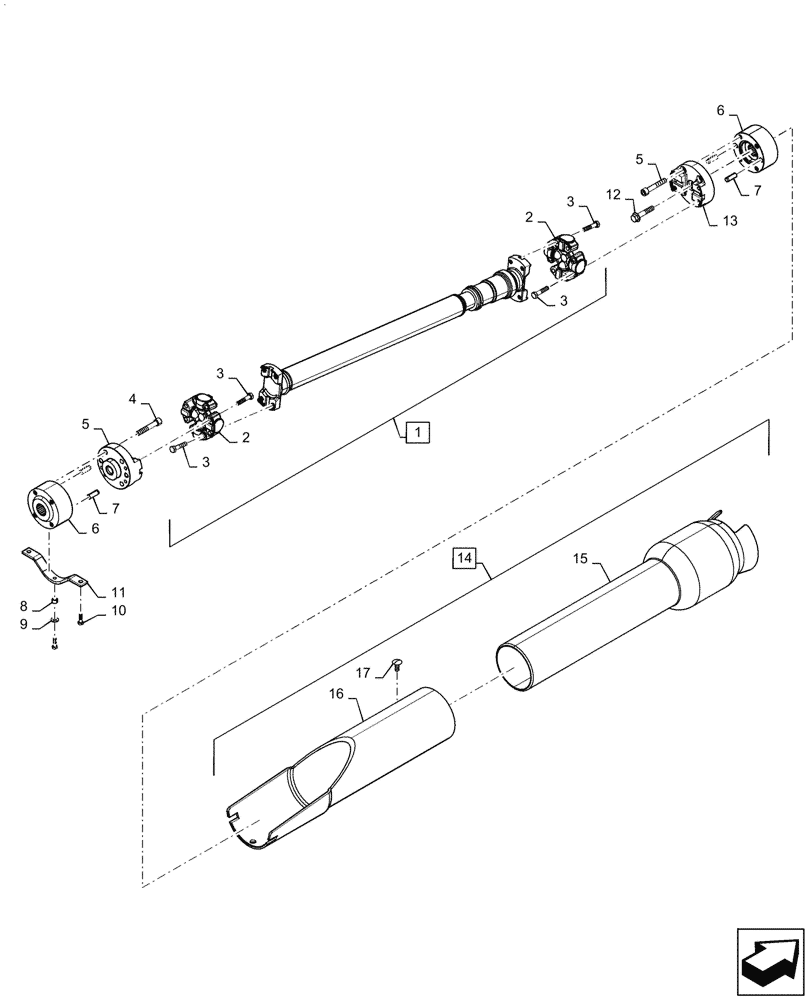

Схема запчастей Case IH MAGNUM 220 - (25.314.AH[02]) - - VAR - 429327, MFD CLASS 4 AXLE, DRIVE SHAFT & SHIELD (23) - FOUR WHEEL DRIVE SYSTEM
17
13
7
9
10
4
8
12
2
3
5
14
6
5
3
16
15
11
6
2
1
7
3
3

Артикул

Название

Примечание

Количество

1

87426992

DRIVE SHAFT

MFD Drive STD/SUSP Axles, Incl 2 - 3

1шт.

2

258854A2

U-JOINT SPIDER

2шт.

3

828-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

16шт.

4

84319918

HEX SOC SCREW,M12 x 1.75 x 70mm, Cl 10.9

8шт.

5

84318976

YOKE

CL4 Axle Transmission End

1шт.

6

84318975

YOKE

2шт.

7

837-12035

DOWEL,M12 x 35

4шт.

8

86224H

SPACER,1/4" Pipe x 3/8"

1шт.

9

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

10

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

3шт.

11

84256543

BRACKET, SUPPORTING

1шт.

12

854-12055

BOLT,Hvy Hex, M12 x 55mm, Cl 10.9

1шт.

13

84318977

YOKE

CL4 Axle MFD End

1шт.

14

84346472

PROTECTION PLATE

Incl 15 - 17

1шт.

15

NSS

NOT SOLD SEPARAT

1шт.

16

NSS

NOT SOLD SEPARAT

1шт.

17

93199C1

FASTENER

2шт.

Выбрано товаров: 17
