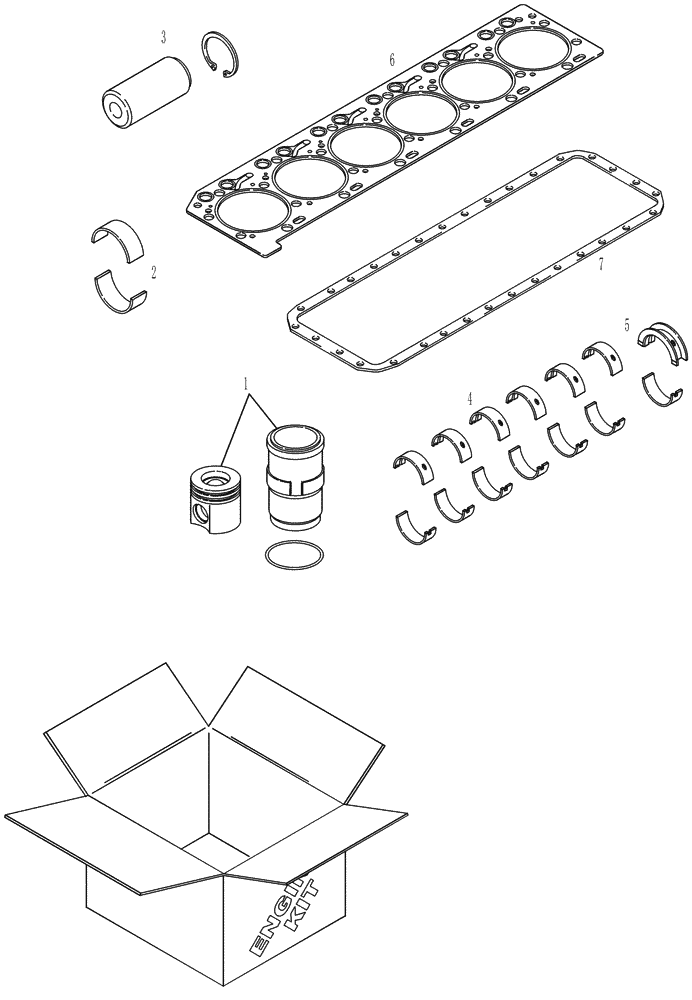

Запчасти Case IH MAGNUM 215 (02-26) - KIT ENGINE OVERHAUL, MX215, MX245, MAGNUM 215, 245 (02) - ENGINE

87348859

ENGINE OVERHAUL KIT

Inc. 1 - 8

1шт.

1

87343262

KIT

Piston and Rings

6шт.

See Figure 02-30

1шт.

2

87443389

BEARING LINER

Connecting Rod, Standard

6шт.

See Figure 02-30

1шт.

3

87342670

PISTON PIN

6шт.

See Figure 02-30

1шт.

4

J945930

BEARING SET

Standard

6шт.

See Figure 02-28

1шт.

5

J945929

THRUST BEARING

Thrust, Standard

1шт.

See Figure 02-28

1шт.

6

87737237

CYLINDER HEAD GASKET,1.81mm Thk

1шт.

7

87308050

GASKET,0.95mm Thk

Oil Pan

1шт.

See Figure 02-18

1шт.
