Запчасти Case IH MAGNUM 210 (10.216.01) - FUEL TANK & MOUNTING - PST (10) - ENGINE

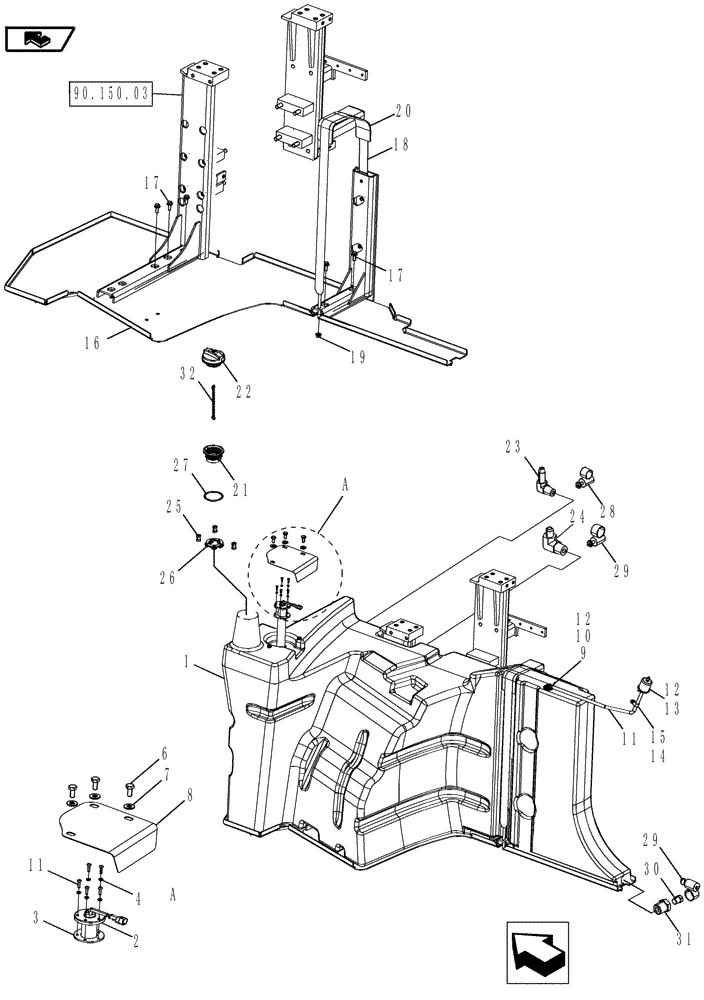

Схема запчастей Case IH MAGNUM 210 - (10.216.01) - FUEL TANK & MOUNTING - PST (10) - ENGINE
2
a
29
15
4
30
12
11
26
20
22
a
29
8
23
16
19
27
1
13
9
90.150.03
17
32
28
12
3
7
21
17
home
14
11
18
25
31
10
24
6

Артикул

Название

Примечание

Количество

1

84123707

FUEL TANK

446 L, 118 US gal

1шт.

2

84137594

SENDER UNIT

1шт.

3

Gasket Fuel Sender, Use Loctite 222

1шт.

4

86509828

LOCK WASHER,M5

5шт.

5

440-11010

SCREW,Phillips Drive, Pan HD, #10 - 24 x 5/8"

5шт.

6

275801A1

FUEL HOSE

1шт.

7

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

3шт.

8

84126986

CAP COVER

Fuel Levor Sensor

1шт.

9

275800A1

VALVE STEM

Roll Over Fuel Tank

1шт.

10

255094A1

GROMMET

Fuel Tank Roll Over Valve

1шт.

11

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

Fuel Tank Roll Over Valve Vent

3шт.

12

214-1308

HOSE CLAMP,#8, 1/2", Spring

2шт.

13

87433010

BREATHER

Fuel Tank Vent

1шт.

14

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.

15

515-22159

CLAMP,5/8", Insul, 5/16" Bolt

1шт.

16

84122292

PLATE

Fuel Tank Support

1шт.

17

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

5шт.

18

84122290

SECURING STRAP

Fuel Tank Support

1шт.

19

829-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 10

1шт.

20

84122288

STRAP

Rubber Cushion

1шт.

21

NSS

NOT SOLD SEPARAT

FUEL CAP

1шт.

22

87731275

CAP

1шт.

23

87016896

FITTING,90 Degree, 3/8" Hose x 1/4" NPTF, Barbed

Fuel Return

1шт.

24

235131

90 ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

Fuel Supply

1шт.

25

NSS

NOT SOLD SEPARAT

COVER PLATE, Fuel Sender Attachment

3шт.

26

NSS

NOT SOLD SEPARAT

ATTACHMENT, Fuel Sender

1шт.

27

NSS

NOT SOLD SEPARAT

INSERT, Fuel Cap

1шт.

28

87625624

HOSE CLAMP,14.2mm ID - 26.9mm ID, SAE #10

Worm Gear

1шт.

29

86625021

HOSE CLAMP,17.5mm - 31.7mm, Worm Gear

Worm Gear

2шт.

30

87752134

REDUCER

Bushing

1шт.

31

NSS

NOT SOLD SEPARAT

DRAIN, Fuel Tank

1шт.

32

NSS

NOT SOLD SEPARAT

CHAIN, Assembly

1шт.

Выбрано товаров: 32
