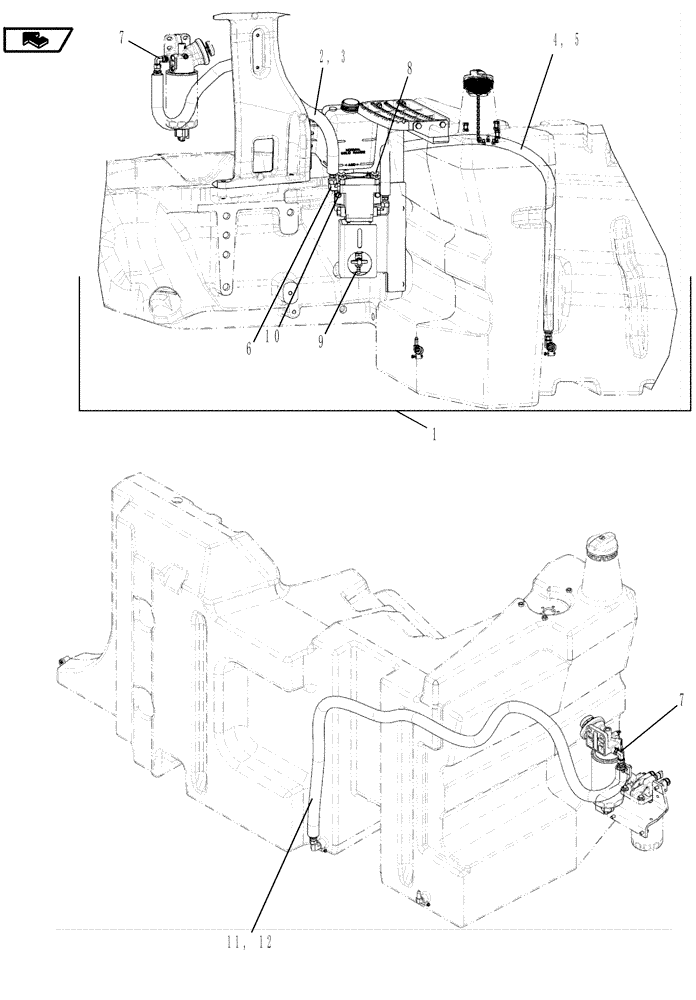

Запчасти Case IH MAGNUM 210 (10.206.11) - FUEL SEPARATOR FILTER, AUXILIARY, DIA KIT (10) - ENGINE

1

84149350

DIA KIT, TRACTOR

Inc. 2 - 10

1шт.

2

84159972

FUEL HOSE

1060 mm (41.75 in) Separator, Serial Range: Filter-Prefilter

1шт.

3

87447004

CONDUIT

900 mm (35.43 in)

1шт.

4

84159973

FUEL HOSE

1313 mm (51.69 in) Tank to Separator Filter

1шт.

5

87482871

CONDUIT

1200 mm (47.24 in)

1шт.

6

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

2шт.

7

87472298

90 ELBOW

1шт.

8

87346728

FUEL FILTER

Separator

1шт.

9

84211781

BRACKET

1шт.

10

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

11

87470688

FUEL HOSE,12.50 mm ID x 2151.00 mm, SAE 30R7

Use if Without Separator Filter

1шт.

12

87442364

CONDUIT

2150 mm (84.64 in) Use if Without Separator Filter

1шт.
