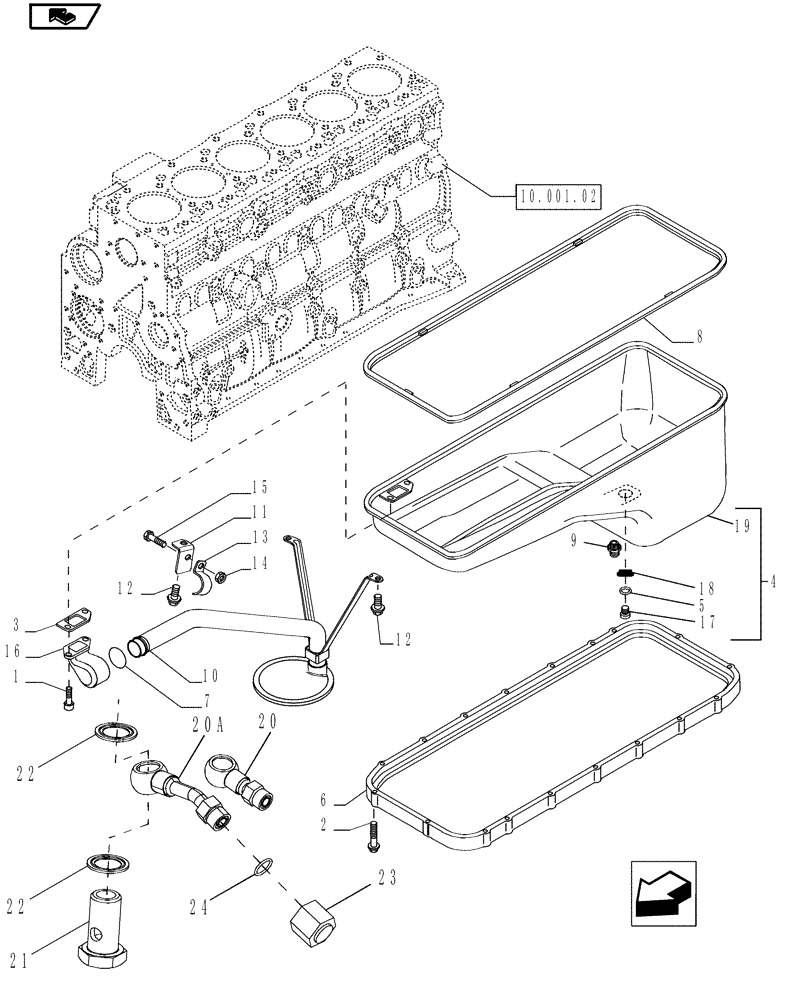

Запчасти Case IH MAGNUM 210 (10.102.01[01]) - SUMP PUMP & OIL PAN (10) - ENGINE

1

2852660

BOLT

2шт.

2

4899091

SCREW,Hex Flange Cap, M8 x 1.25 x 40.00mm

18шт.

3

4898301

GASKET,0.42mm Thk

1шт.

4

2852308

ENGINE OIL PAN

ASSY, Inc. 5, 17 - 19

1шт.

5

2853728

O-RING,M23.47 ID x 2.62 Thk

1шт.

6

4897858

SPACER

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING

1шт.

8

4897861

OIL PAN GASKET SET,17.3mm Thk

1шт.

9

2853894

DRAIN PLUG

1шт.

10

2852654

SUCTION PIPE

Oil

1шт.

11

2852664

BRACKET

BRACKET

1шт.

12

4895291

SCREW,Hex Flg, M10 x 1.5 x 20

3шт.

13

2852663

CLAMP

1шт.

14

4899003

FLANGE NUT,M8 x 1.25

1шт.

15

4899068

BOLT,Flng, M8 x 1.25 x 16mm

1шт.

16

2856428

COLLAR CLAMP

1шт.

17

4894139

PLUG,Hex Soc, M22 x 1.5

1шт.

18

NSS

NOT SOLD SEPARAT

RING, Threaded

1шт.

19

NSS

NOT SOLD SEPARAT

PAN, Oil

1шт.

20

87475170

BANJO FITTING

Assembly, Pan Drain, Early Production

1шт.

20a

84201016

TUBE

Assembly, Pan Drain, Current production

1шт.

21

87567452

BANJO BOLT

1шт.

22

87332142

SEAL,23.5mm ID x 30mm OD x 1.5mm Thk

2шт.

23

701-905

CAP,13/16" - 16

1шт.

24

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.
