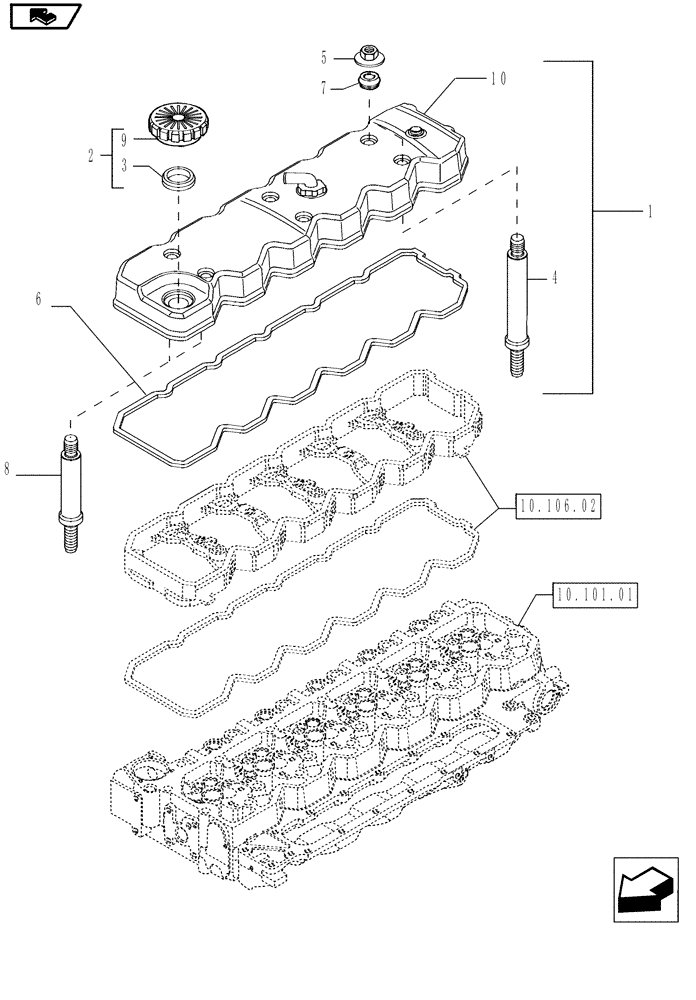

Запчасти Case IH MAGNUM 210 (10.101.02) - CYLINDER HEAD COVERS (10) - ENGINE

1

2853857

VALVE COVER

ASSY

1шт.

See page 10.101.03, incl. p/n 2853826

1шт.

2

2856707

FILLER CAP

ASSY, Inc. 3, 9

1шт.

3

2852774

GASKET,38mm ID x 51mm OD x 8mm Thk

1шт.

4

2854812

STUD,M8 x 1.25 x 113mm

4шт.

5

4893936

FLANGE NUT,Hex, M13, RH Thd, Cl 9.8

6шт.

6

2853784

GASKET,10.5mm Thk

1шт.

7

4899239

ISOLATOR,29mm OD x 13mm L

6шт.

8

4896991

BOLT

2шт.

9

NSS

NOT SOLD SEPARAT

CAP, Filler

1шт.

10

NSS

NOT SOLD SEPARAT

COVER

1шт.
