Запчасти Case IH MAGNUM 210 (10.001.03) - ENGINE BLOCK & TRANSMISSION HEATERS (10) - ENGINE

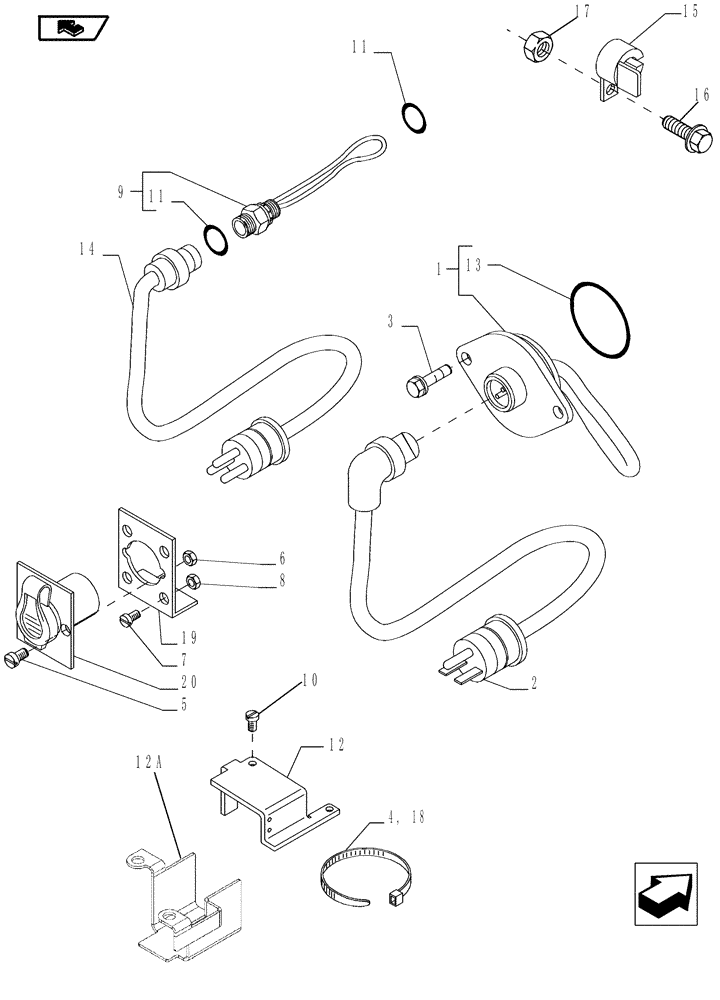

Схема запчастей Case IH MAGNUM 210 - (10.001.03) - ENGINE BLOCK & TRANSMISSION HEATERS (10) - ENGINE
8
9
home
18
10
1
13
11
12
19
20
15
12a
17
3
16
14
6
11
7
5
2
4

Артикул

Название

Примечание

Количество

1

8602005

HEATER,750W, 120V

Engine Block, 120V

1шт.

2

A44813

CABLE EXTENSION

1шт.

3

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

4

82001041

CABLE TIE,0.190" x 7.00" / 200 mm L

CABLE STRAP

2шт.

5

13276414

SCREW,Pozidriv Pan Hd, M6 x 20mm, Cl 5.8, Full Thd

2шт.

6

86619800

FLANGE NUT,M6 x 1, Cl 8

2шт.

7

13271914

SCREW,Pozidriv Pan Hd, M4 x 10mm, Cl 5.8, Full Thd

4шт.

8

10794011

NUT,M4, Cl 8

4шт.

9

87718030

HEATER

Transmission Oil, 110V

1шт.

10

14420271

HEX SOC SCREW,M10 x 1.5 x 30mm, Cl 12.9, Full Thd

1шт.

11

81903721

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

2шт.

12

87571524

GUARD

For Transmission Heater, Used with Powershift Transmission

1шт.

12a

84162403

GUARD

For Transmission Heater, Used With Constant Velosity Transmission

1шт.

13

4891258

O-RING,1.984" ID x 2.262" OD x 0.139"

1шт.

14

82030791

ELECTRIC CABLE

110V, Inc. 19, 20

1шт.

15

87571719

BRACKET

1шт.

16

844-6016

BOLT,Hvy Hex, M6 x 16mm, Cl 8.8

1шт.

17

825-5146

SERRATED NUT,M6, Flg Ser

1шт.

18

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

1шт.

19

NSS

NOT SOLD SEPARAT

Bracket, Order 84130687

1шт.

20

NSS

NOT SOLD SEPARAT

Cover, Order 84130687

1шт.

Выбрано товаров: 21
