Запчасти Case IH MAGNUM 210 (90.150.02) - TOOL BOX & MOUNTING (90) - PLATFORM, CAB, BODYWORK AND DECALS

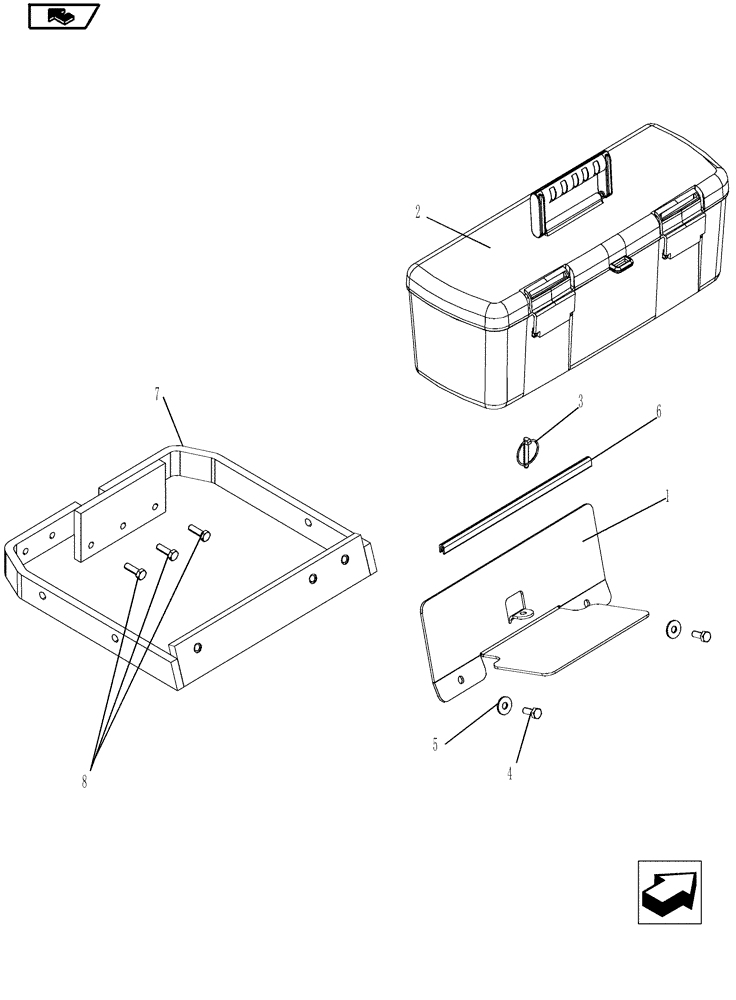

Схема запчастей Case IH MAGNUM 210 - (90.150.02) - TOOL BOX & MOUNTING (90) - PLATFORM, CAB, BODYWORK AND DECALS
4
5
8
home
7
2
3
1
6

Артикул

Название

Примечание

Количество

1

84191684

BRACKET

Tool Box Mounting

1шт.

2

87400261

TOOL BOX

1шт.

3

82013836

ROLL PIN,6mm OD

LOCK PIN Tool Box

1шт.

4

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

5

86639313

WASHER,9mm ID x 24mm OD x 2mm Thk

2шт.

6

87450361

VINYL

1шт.

7

87566674

RETAINER

For Attaching Tool Box and Mid Mount Valves

1шт.

8

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

For Attaching Retainer

3шт.

Выбрано товаров: 8
