Запчасти Case IH MAGNUM 210 (90.124.03[01]) - SUSPENSION ASSEMBLY WITHOUT POSITIVE RESPONSE, SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS

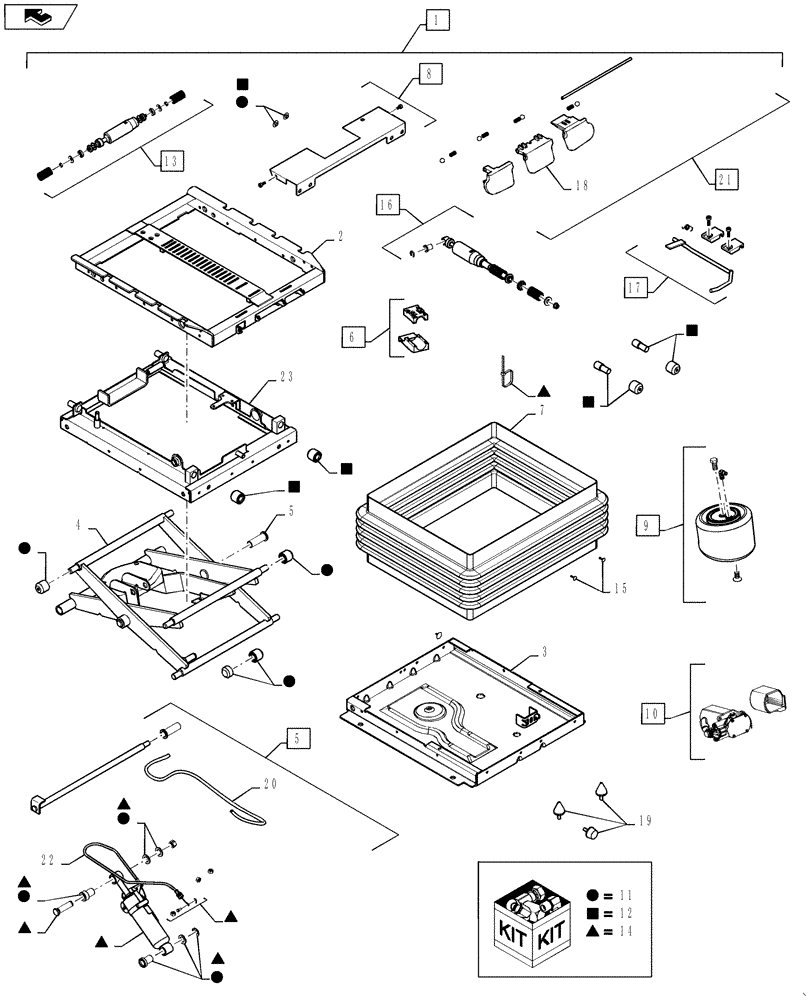

Схема запчастей Case IH MAGNUM 210 - (90.124.03[01]) - SUSPENSION ASSEMBLY WITHOUT POSITIVE RESPONSE, SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS
10
9
20
17
14
11
23
11
14
11
14
11
12
home
12
11
2
11
14
22
18
14
12
14
6
12
14
11
14
12
3
21
5
11
13
4
11
1
19
14
8
5
15
7
12
16
12

Артикул

Название

Примечание

Количество

1

84155868

SERVICE KIT

SUSPENSION, Inc. 2 - 23

1шт.

2

333274A2

ISOLATOR

Track, Lateral

1шт.

3

333275A1

HOUSING

Lower

1шт.

4

333276A1

ARM

Suspension

1шт.

5

302033A1

SHAFT

Bearing

1шт.

6

333296A1

SERVICE KIT

Isolator Shock Block

1шт.

7

87347943

SERVICE KIT

Seat, Boot

1шт.

8

302029A2

PLATE

Cover

1шт.

9

333279A2

KIT

Air Spring Service

1шт.

10

87347951

SERVICE KIT

Compressor, Seat, Passive

1шт.

11

87347945

BEARING ASSY

Bearings, Seat Scissors Roller

1шт.

12

87347946

SERVICE KIT

Rollers, Seat Isolator

1шт.

13

87347947

SERVICE KIT

Shock Absorber, Lateral

1шт.

14

447956A1

KIT

Adjustable Shock, Black

1шт.

15

333659A1

PACKAGE,SERVICE

Button, Boot

1шт.

16

87347948

SERVICE KIT

Shock Absorber, Fore-Aft Isolator

1шт.

17

373470A2

KIT

Fore-Aft, Isolator Control, Black

1шт.

18

373473A1

PACKAGE,SERVICE

Lateral Isolator Control, Black

1шт.

19

333295A1

BUMPER

Suspension Bumper

1шт.

20

87396231

SERVICE KIT

Tube and Fitting

1шт.

21

373469A1

PACKAGE,SERVICE

Suspension Knob, Black

1шт.

22

87347955

CABLE

Seat Adjust, Shock, Passive

1шт.

23

333273A1

HOUSING

Upper

1шт.

Выбрано товаров: 23
