Запчасти Case IH MAGNUM 210 (05.100.03[01]) - FILTERS, MAGNUM 180 - 190 - 210 - PST - TIER 3 (05) - SERVICE & MAINTENANCE

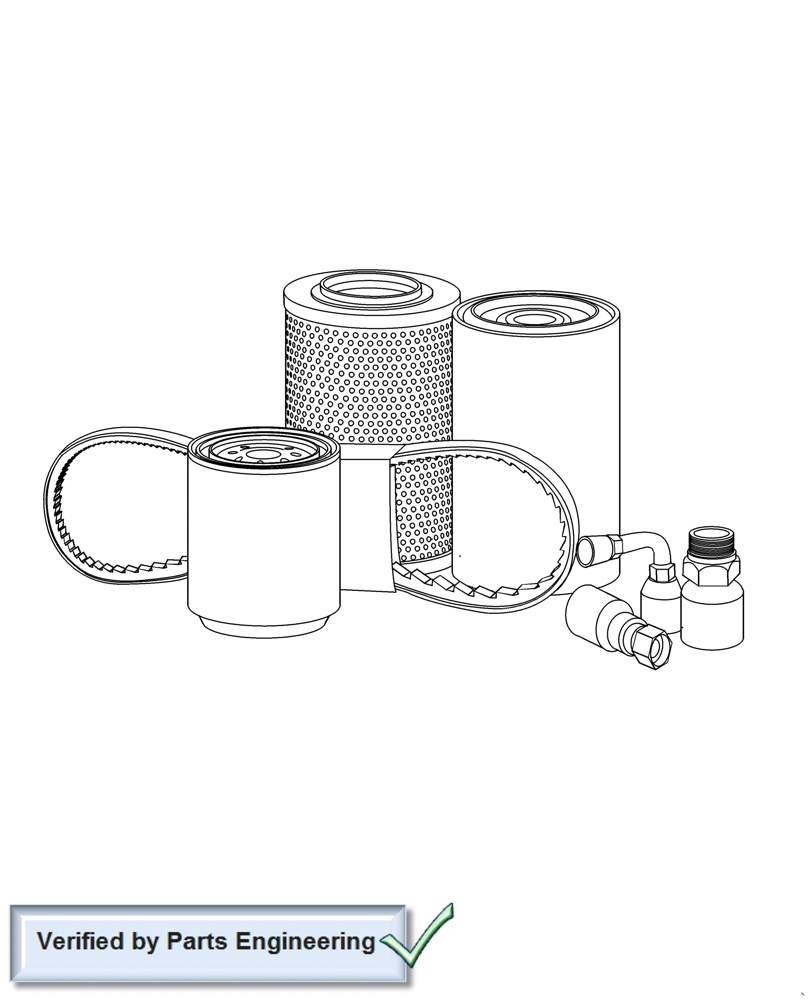

Схема запчастей Case IH MAGNUM 210 - (05.100.03[01]) - FILTERS, MAGNUM 180 - 190 - 210 - PST - TIER 3 (05) - SERVICE & MAINTENANCE

Артикул

Название

Примечание

Количество

1

84228488

ENGINE OIL FILTER,95mm OD x 171mm L, M27x2-6H

1шт.

2

87708150

HYDRAULIC OIL FILTER,Filter & Seal

Hydraulic Oil

2шт.

3

87304662

BREATHER

Engine

1шт.

4

87517154

AIR FILTER,281.6mm ID x 284.4mm OD x 319mm L

Engine Primary

1шт.

5

87517153

AIR FILTER,142.3mm ID x 150.9mm OD x 258mm L

Engine Secondary

1шт.

6

87684088

CAB FILTER,CAB

Cab

1шт.

7

87267363

AIR FILTER,Cab Charcoal Recirculation

Cab, Charcoal

1шт.

8

293615A1

FILTER

Recirculation

2шт.

9

84226263

HYDRAULIC OIL FILTER,116.8mm OD x 295.4mm L, 1" 3/8-12UNF

Transmission, PST

1шт.

10

87708150

HYDRAULIC OIL FILTER,Filter & Seal

Suction, 32 micron, PST

1шт.

11

84412164

FUEL FILTER,94mm OD x 192mm L, M20 x 1.5, 10 Microns

5 micron Secondary

1шт.

12

84348882

FUEL FILTER,97mm OD x 184mm L, M16 x 1.5, 30 Microns

25 micron Primary W/Sensor

1шт.

13

336430A1

FUEL FILTER

30 micron Fuel Strainer

1шт.

14

87433010

BREATHER

Fuel

1шт.

Выбрано товаров: 14
