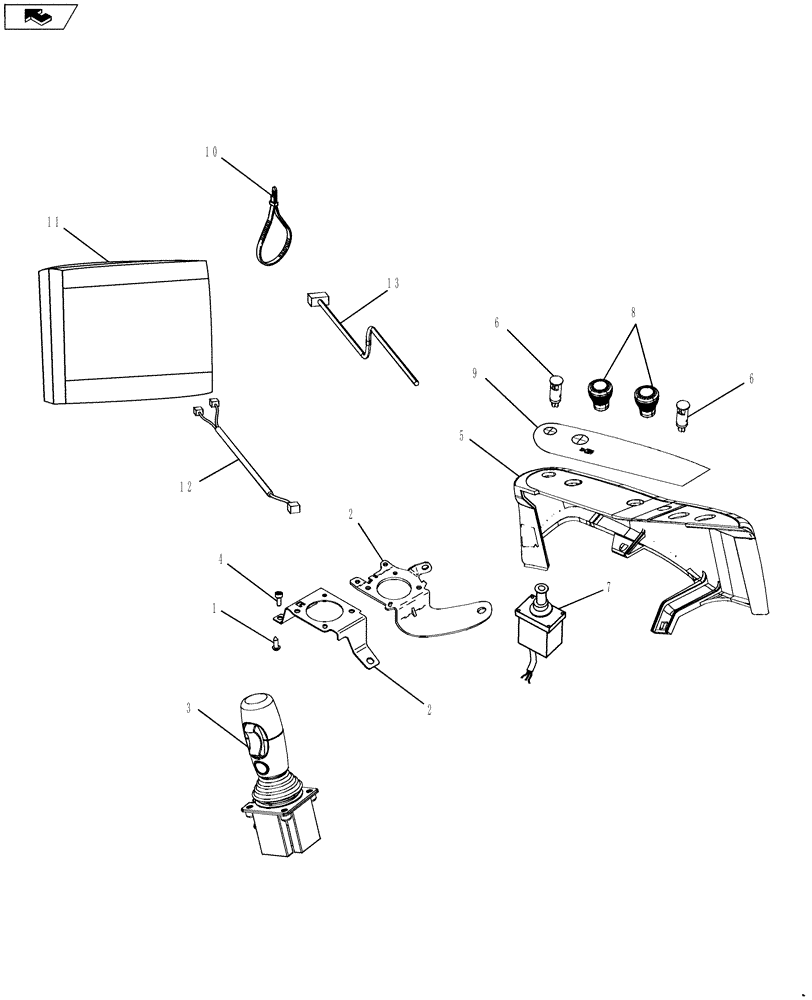

Запчасти Case IH MAGNUM 210 (55.512.05[03]) - ARMREST CONTROL UNIT (55) - ELECTRICAL SYSTEMS

1

760-14313

SELF-TAP SCREW,Phillips Drive, Pan HD, M4.2 x 1.4 x 13mm

2шт.

2

84150720

HOLDER

If Used

1шт.

2

84202338

BRACKET

If Used

1шт.

3

84208738

JOYSTICK

1шт.

84208738R

REMAN-JOYSTICK

MAGNUM 180, MAGNUM 190, MAGNUM 210, MAGNUM 225

1шт.

84208738C

CORE-JOYSTICK

Return Number

1шт.

4

86639293

HEX SOC SCREW,M4 x 12mm, Cl 8.8

4шт.

5

84147844

HOUSING

PTO

1шт.

6

47056319

WARNING LIGHT

PTO Yellow

2шт.

7

84218194

SWITCH ASSY

PTO

1шт.

8

87638633

KNOB

PTO

2шт.

9

84232890

DECAL

PTO, Rear

1шт.

10

86991009

CABLE TIE,222mm L, Nylon

CABLE STRAP

1шт.

11

87742308

CONTROL MONITOR

Small Wide Color Display With Software

1шт.

84486874R

REMAN-ELECT MONITOR

MAGNUM 180, MAGNUM 190, MAGNUM 210, MAGNUM 225, Reman for New PN 87742308

1шт.

84486874C

CORE-MONITOR

Return Number

1шт.

12

84332923

HARNESS

Armrest Without Motor

1шт.

13

84228344

HARNESS

SWCD

1шт.
