Запчасти Case IH MAGNUM 210 (55.512.05[02]) - ARMREST CONTROL UNIT (55) - ELECTRICAL SYSTEMS

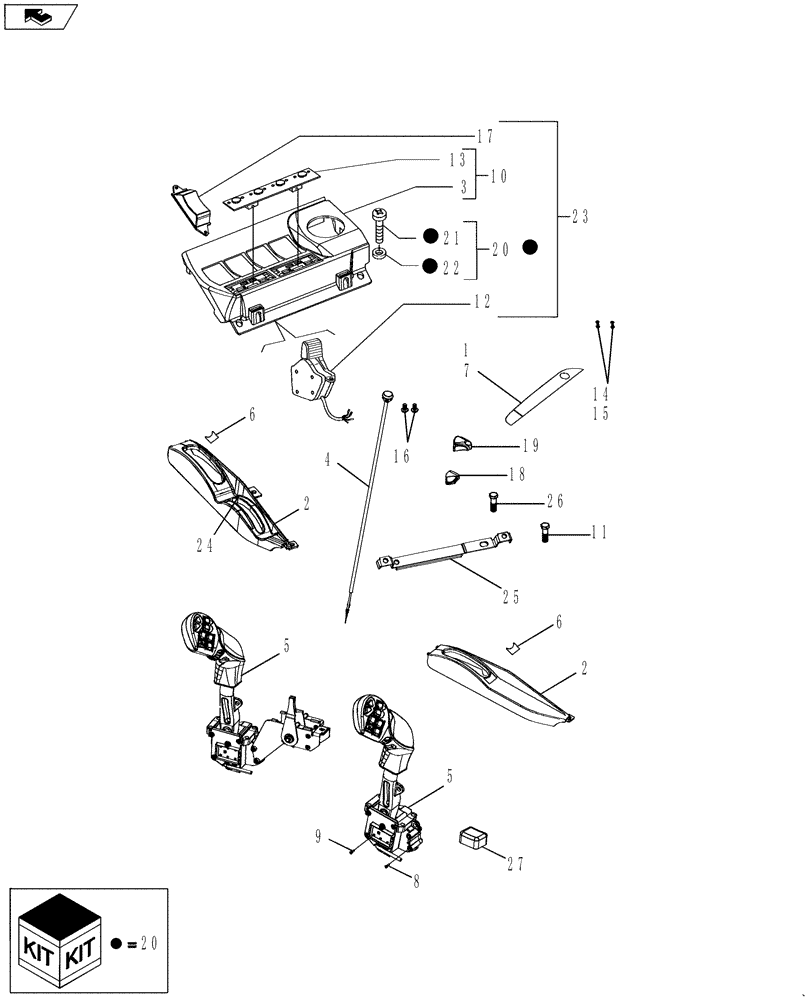

Схема запчастей Case IH MAGNUM 210 - (55.512.05[02]) - ARMREST CONTROL UNIT (55) - ELECTRICAL SYSTEMS
20
25
home
5
10
9
14
27
13
2
7
26
20
6
3
6
4
23
12
20
16
24
20
17
2
8
20
18
19
21
1
5
20
11
15
22

Артикул

Название

Примечание

Количество

1

84126448

DECAL

1шт.

2

84122981

BEZEL

Throttle, Use With Powershift Transmission

1шт.

2

84122980

BEZEL

Throttle, Use With Constant Velocity Transmission

1шт.

3

84202323

PANEL

PANEL, EHR, Joystick

1шт.

4

87485775

SWITCH ASSY

Joystick Float

1шт.

5

84209526

LEVER

Multi Function Handle, Use With Powershift Transmission

1шт.

5

84209526R

REMAN-JOYSTICK

Multi Function Handle, Use With Powershift Transmission

1шт.

5

84209526C

CORE-JOYSTICK

Return Number

1шт.

5

84209525

LEVER

Multi Function Handle, Use With Constant Velocity Transmission

1шт.

5

84209525R

REMAN-JOYSTICK

Multi Function Handle, Use With Constant Velocity Transmission

1шт.

5

84209525C

CORE-JOYSTICK

Return Number

1шт.

6

84145169

DECAL

Tortoise, Use With Powershift Transmission

1шт.

6

84145170

DECAL

Snail, Use With Constant Velocity Transmission

1шт.

7

84126449

DECAL

EHR

1шт.

8

13276621

SCREW,Pozidriv Pan Hd, M6 x 25mm, Cl 8.8, Full Thd

4шт.

9

15903977

SELF-TAP SCREW,Pan Head, M4.8 x 1.6 x 19mm

4шт.

10

84202321

TOGGLE SWITCH

4 Remote

1шт.

10

84202317

TOGGLE SWITCH

3 Remote

1шт.

11

87564728

SCREW,Phillips Drive, Pan HD, #10 - 16 x 1/2"

3шт.

12

87486098

ROCKER SWITCH

3шт.

13

87613728

PANEL

1шт.

14

82016959

SCREW,M3.5 x 12mm

8шт.

15

495-81251

WASHER,0.16" ID x 0.31" OD x 0.04" Thk

8шт.

16

13276217

SCREW,Pozidriv Pan Hd, M6 x 16mm, Cl 5.8, Full Thd

2шт.

17

84226110

PLUG,32.5mm W x 92mm L

COVER, Blanking

1шт.

18

84202341

KNOB

Left Hand, Use With Constant Velocity Transmission

1шт.

19

84229449

KNOB

Right Hand, Use With Constant Velocity Transmission

1шт.

20

84228894

KIT

Incl 21, 22

1шт.

21

50631

SCREW,Self Tapping, M6 x 0.5" OAL

12шт.

22

495-81251

WASHER,0.16" ID x 0.31" OD x 0.04" Thk

12шт.

23

84202317

TOGGLE SWITCH

Assembly, 3 EHR, Incl 3, 10, 12, 13, 17, 20 - 22

1шт.

23

84202321

TOGGLE SWITCH

Assembly, 4 EHR, Incl 3, 10, 12, 13, 17, 20 - 22

1шт.

24

84165457

DECAL

Throttle, Use With Constant Velocity Transmission

1шт.

25

84226106

BRACKET

EHR Base

1шт.

26

13276021

SCREW,Pozidriv Pan Hd, M6 x 12mm, Cl 8.8, Full Thd

2шт.

27

84238354

CAP

1шт.

28

84493604

PAD SET

For Joystick (Not Shown)

1шт.

Выбрано товаров: 37
