Запчасти Case IH MAGNUM 210 (55.510.02) - A-POST COVER, INSTRUMENT CLUSTER (55) - ELECTRICAL SYSTEMS

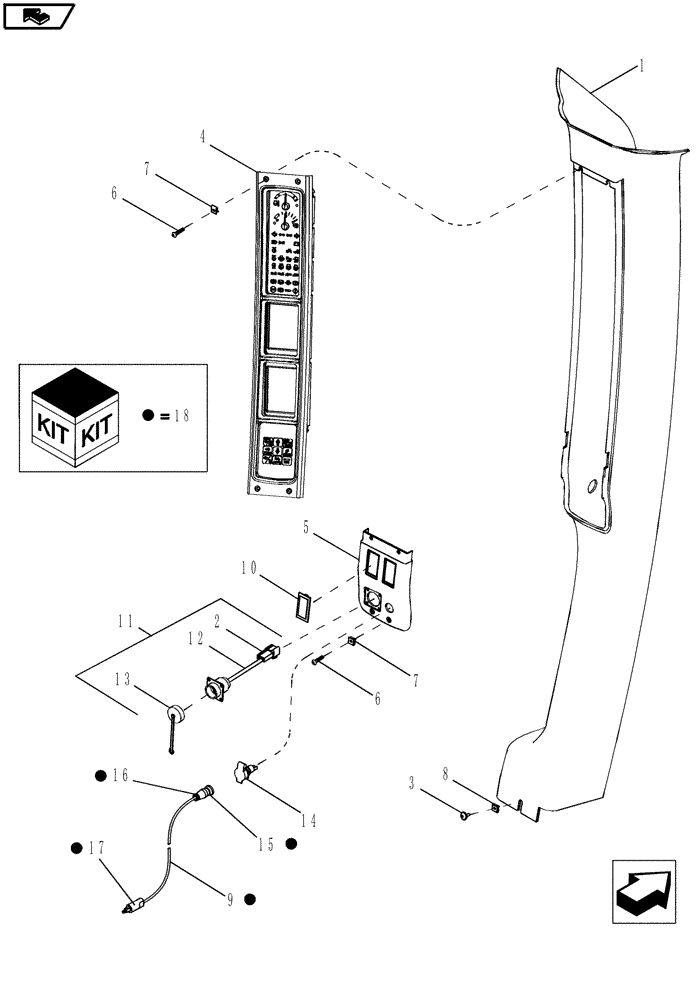

Схема запчастей Case IH MAGNUM 210 - (55.510.02) - A-POST COVER, INSTRUMENT CLUSTER (55) - ELECTRICAL SYSTEMS
9
13
18
4
8
1
14
6
16
15
18
17
5
12
11
18
home
2
3
7
18
10
18
7
18
6

Артикул

Название

Примечание

Количество

1

444547A1

TRIM PANEL

1шт.

2

227729A1

CONNECTOR, ELEC

CONNECTOR

1шт.

3

1975782C1

SELF-TAP SCREW,Truss HD, #10 - 16 x 5/8"

1шт.

4

84214941

MODULE

Basic, Without Software

1шт.

4

84214942

MODULE

Enhanced, Without Software

1шт.

5

358804A1

BEZEL

1шт.

6

260-16516

SELF-TAP SCREW,Cross Pan Hd, #10 x 1"

6шт.

7

177269A1

SPRING NUT,M4.2

6шт.

8

131-839

SPRING NUT,U, #10-16, Panel type

1шт.

9

324847A2

HARNESS

Monitor to Radar, Inc. 15 - 17

1шт.

10

245918C1

LENS

PLUG, blanking, rocker switch

2шт.

11

227739A2

POWER SOCKET

Auxiliary Power, Inc. 2, 12, 13

1шт.

12

225164C1

ELEC CONNECTOR

Outlet, Socket, 3 Pole

1шт.

13

225162C1

PLUG

Dust

1шт.

14

300655A1

POWER SOCKET

Outlet, Single Pole

1шт.

15

247723A1

ELEC CONNECTOR,Male, 4 Pin

Implement Monitor

1шт.

16

247725A1

ELEC CONNECTOR

1шт.

17

300656A1

POWER SOCKET,1 Pole

Radar

1шт.

18

719632016

DIA KIT, TRACTOR

Implement Harness, Monitor to Radar, Inc. 9, 15 - 17

1шт.

Выбрано товаров: 19
