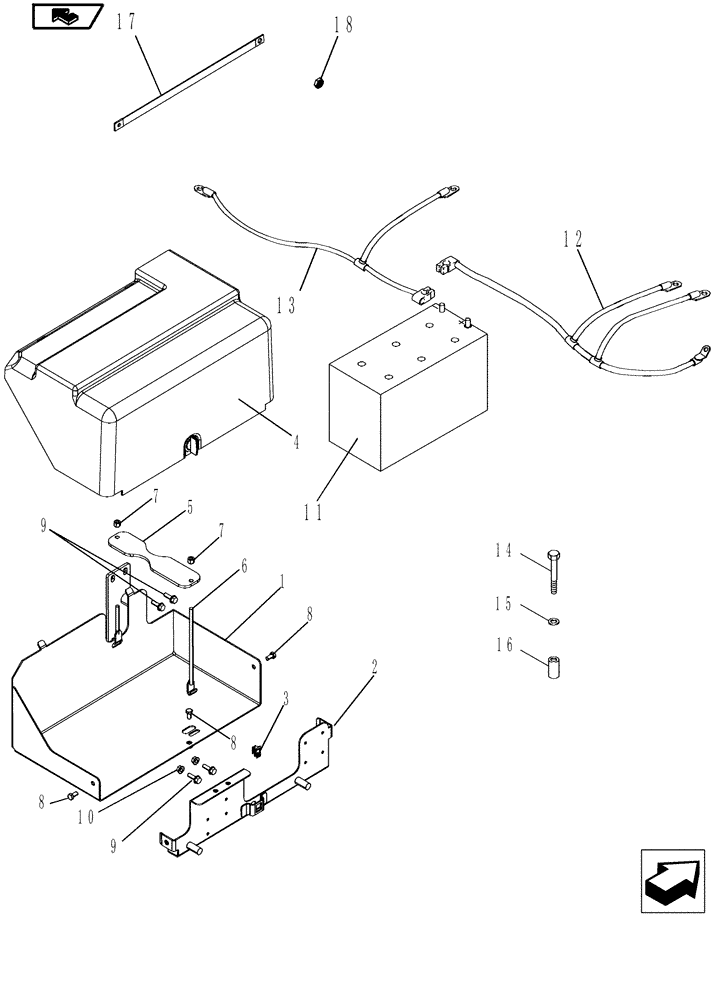

Запчасти Case IH MAGNUM 210 (55.301.02) - BATTERY, BATTERY BOX & CABLES (55) - ELECTRICAL SYSTEMS

1

87744753

BRACKET

Assembly, Battery Box

1шт.

2

87744758

BRACKET

Assembly, Front Battery Box

1шт.

3

83991620

RETAINER

Hood Side Panel Latch

1шт.

4

82032836

BATTERY BOX

Latch Assembly

1шт.

5

87744764

BRACKET

Battery Hold Down

1шт.

6

82020168

ROD

Battery Hold Down

1шт.

7

87597953

NUT,M8, 1.25 Pitch, 10.6mm High, Cl 8, ZND

2шт.

8

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

3шт.

9

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

10

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

11

87330484

WET BATTERY

1шт.

12

84243653

POS BATTERY CABLE

1шт.

13

84122761

NEG BATTERY CABLE

1шт.

14

814-20070

BOLT,Hex, M20 x 2.5 x 70mm, Cl 8.8

1шт.

15

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

1шт.

16

1331939C1

SPACER

Drawbar Strap

1шт.

17

87424307

GROUND STRAP

1шт.

18

829-2412

FLANGE NUT,M12 x 1.75, Flg, Cl 10

2шт.
