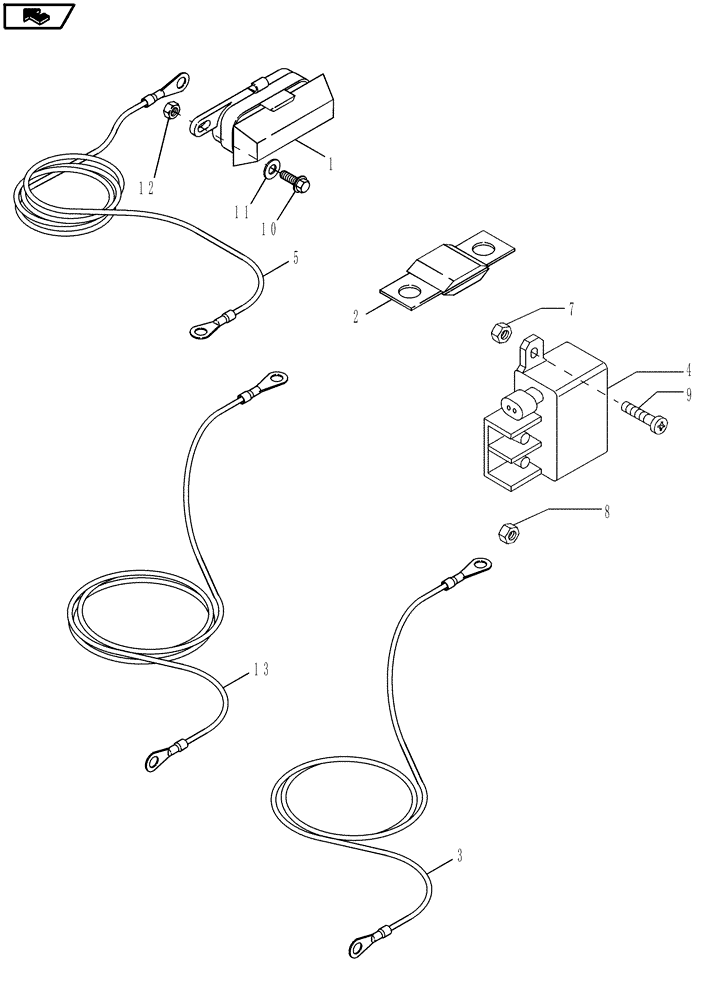

Запчасти Case IH MAGNUM 210 (55.201.01) - SOLENOID & CABLES, GRID HEATER (55) - ELECTRICAL SYSTEMS

1

440038A1

JUNCTION BLOCK

1шт.

2

87422637

FUSE,125A, Midival

1шт.

3

84164625

ELECTRIC CABLE

, Serial Range: Heater-Relay

1шт.

4

86619908

RELAY,12V, 150A

ASSY, Grid heater

1шт.

5

84164356

ELECTRIC CABLE

, Serial Range: Fuse-Relay

1шт.

6

87542146

CAP

M6 Bolt Cover for Fuse Holder Bolts (Not Shown)

2шт.

7

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

to Mount Grid Heater Relay

2шт.

8

829-1406

NUT,Hex, M6 x 1, Cl 10.9

On Grid Heater Relay

2шт.

9

840-1616

SCREW,Pan, M6 x 16mm, Cl 4.8

to Mount Grid Heater Relay

2шт.

10

844-6016

BOLT,Hvy Hex, M6 x 16mm, Cl 8.8

to Mount Junction Fuse Box

2шт.

11

893-11008

LOCK WASHER,Ext Tooth, M8

Fuse Mounting

2шт.

12

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

Fuse Mounting

2шт.

13

84164624

GROUND CABLE

, Serial Range: Heater-Ground

1шт.
