Запчасти Case IH MAGNUM 210 (55.100.32) - IMPLEMENT CONNECTORS & MOUNTING (55) - ELECTRICAL SYSTEMS

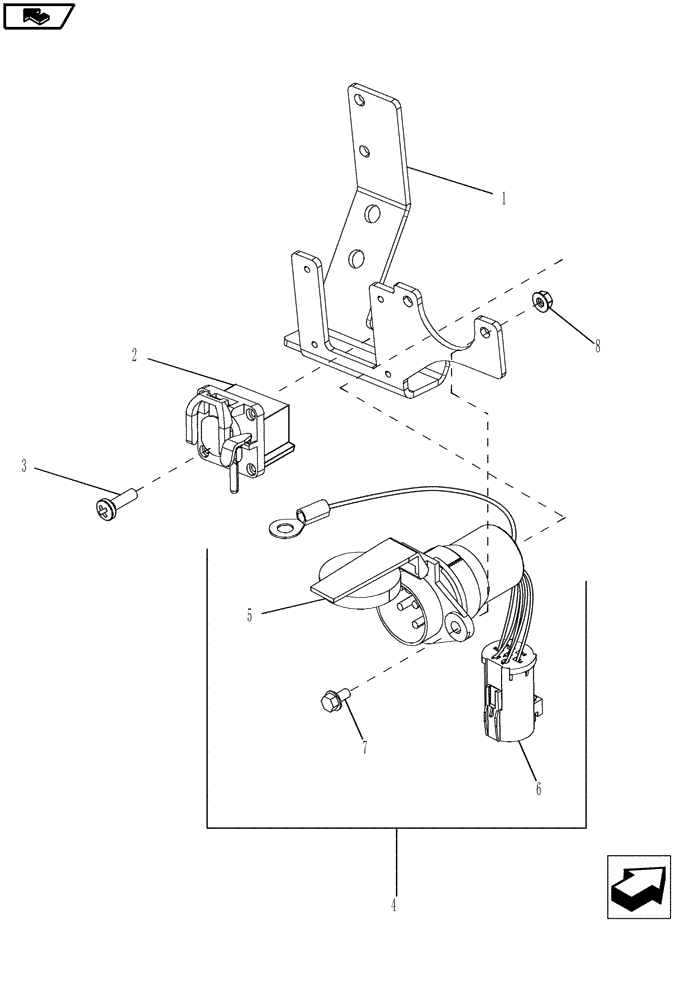

Схема запчастей Case IH MAGNUM 210 - (55.100.32) - IMPLEMENT CONNECTORS & MOUNTING (55) - ELECTRICAL SYSTEMS
3
home
6
8
5
7
1
2
4

Артикул

Название

Примечание

Количество

1

84161587

BRACKET

1шт.

2

87522416

ELEC CONNECTOR,Female, 5 Cavities

ISO Bus Breakaway

1шт.

3

840-1620

SCREW,Pan, M6 x 20mm, Cl 4.8

4шт.

4

84164355

HARNESS

7-Pin Adapter, Inc. 5, 6

1шт.

5

121645C1

MULTIPOLE CONNECTOR,7 Pin

1шт.

6

182087A1

CONNECTOR, ELEC

CONNECTOR Auxiliary/PTO Harness

1шт.

7

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

2шт.

8

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

2шт.

Выбрано товаров: 8
