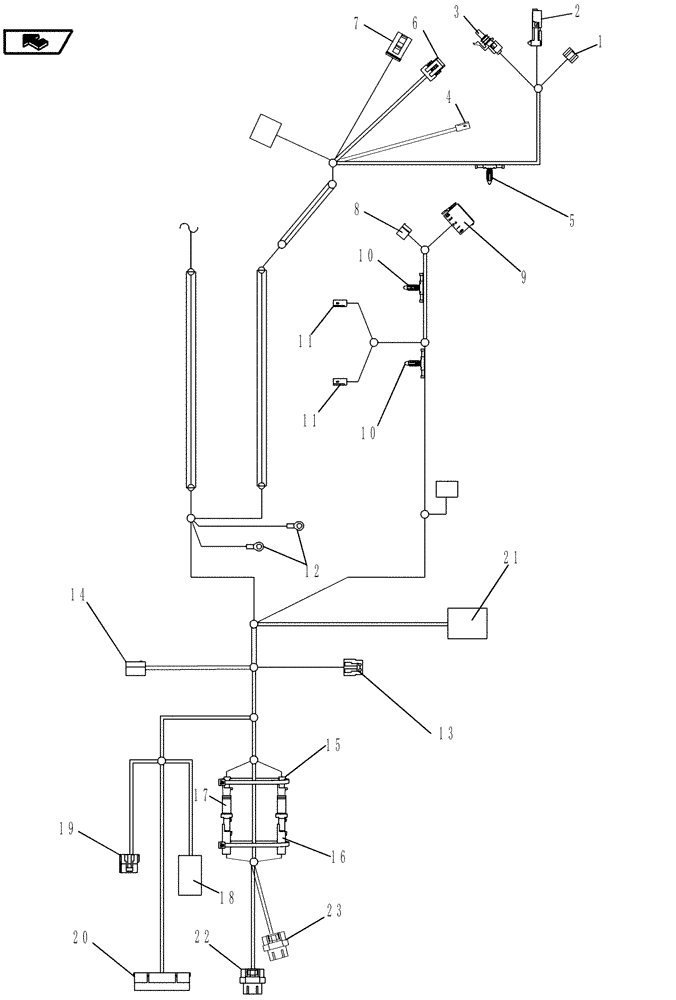

Запчасти Case IH MAGNUM 210 (55.100.17[02]) - HARNESS, CAB (55) - ELECTRICAL SYSTEMS

1

475083C1

CONNECTOR, ELEC

CONNECTOR Rotary Worklight Switch

1шт.

2

245481C1

CONNECTION,ELECTRIC

1шт.

3

245480C1

ELEC CONNECTOR,1 Pin

1шт.

4

227429A1

CONNECTOR, ELEC

CONNECTOR Clutch Switch

1шт.

5

369917A1

CLIP

1шт.

6

198550A1

CONNECTOR, ELEC

CONNECTOR Master Clutch Pedal POD

1шт.

7

225389C1

CONNECTOR, ELEC

CONNECTOR Turn Signal Switch

1шт.

8

225253C1

CONNECTOR, ELEC

CONNECTOR Ignition Switch

1шт.

9

87426885

CONNECTOR, ELEC

CONNECTOR Headlight Switch

1шт.

10

369917A1

CLIP

2шт.

11

227429A1

CONNECTOR, ELEC

CONNECTOR Left & Right Brake

2шт.

12

225037C1

TERMINAL CONNECTOR,19 - 20 mm2

Chassis Ground

2шт.

13

227728A1

CONNECTION,ELECTRIC

Auxillary Power

1шт.

14

877291R1

ELEC CONNECTOR,Female

Radar

1шт.

15

631801C1

CONNECTION

High Beam

2шт.

16

739070C1

CONNECTOR, ELEC

CONNECTOR High Beam

2шт.

17

113699A1

RECTIFIER

Low Beam, Rectifier Assemblies

2шт.

18

87382919

WIRE CONNECTOR,Male, 6 Cavities

Power Mirror

1шт.

19

197503A1

CONNECTOR, ELEC

CONNECTOR Roof Harness

1шт.

20

196155A1

CONNECTOR, ELEC

CONNECTOR Roof Harness

1шт.

21

NSS

NOT SOLD SEPARAT

CONNECTOR, Front to Rear harness

1шт.

22

87419488

MULTIPOLE CONNECTOR,Female, 26 Pole

ICU3

1шт.

23

NSS

NOT SOLD SEPARAT

CONNECTOR, ICU3

1шт.
