(55.100.04) - HARNESS & SENSOR, SUSPENDED MFD AXLE

Запчасти Case IH MAGNUM 210 (55.100.04) - HARNESS & SENSOR, SUSPENDED MFD AXLE (55) - ELECTRICAL SYSTEMS

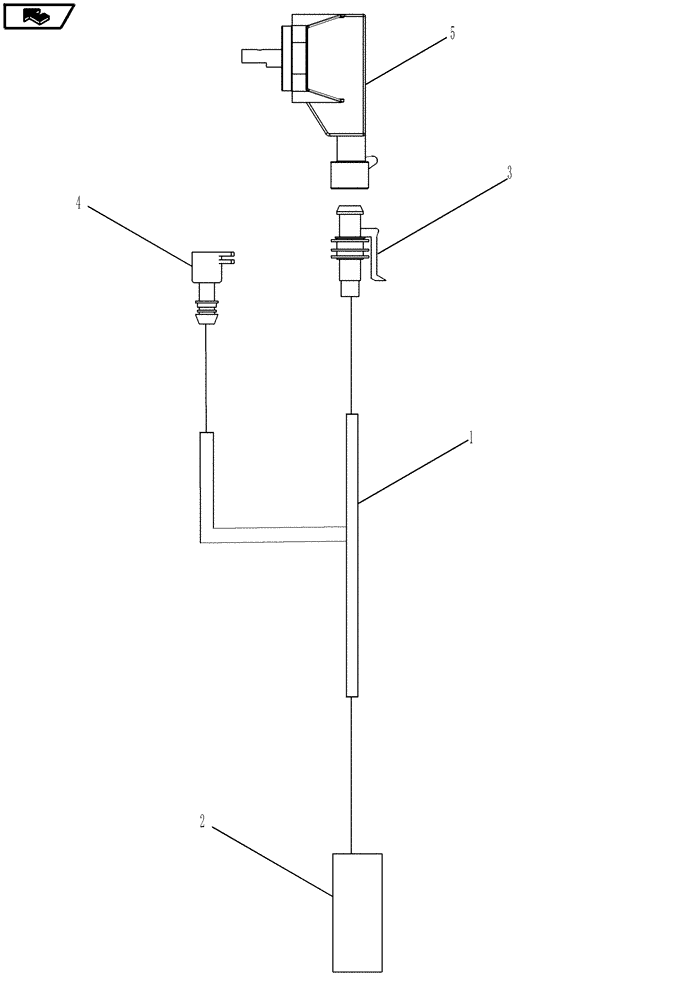

Схема запчастей Case IH MAGNUM 210 - (55.100.04) - HARNESS & SENSOR, SUSPENDED MFD AXLE (55) - ELECTRICAL SYSTEMS
1
4
3
5
home
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84588433

HARNESS

Inc. 2 - 4

1шт.

2

87382919

WIRE CONNECTOR,Male, 6 Cavities

To Engine harness

1шт.

3

291719A1

CONNECTOR, ELEC

CONNECTOR To Suspended Axle Sensor

1шт.

4

291718A1

ELEC CONNECTOR,Female, 2 Pin

To Suspended Axle Lockout Valve

1шт.

5

87695841

SENSOR

Position

1шт.
