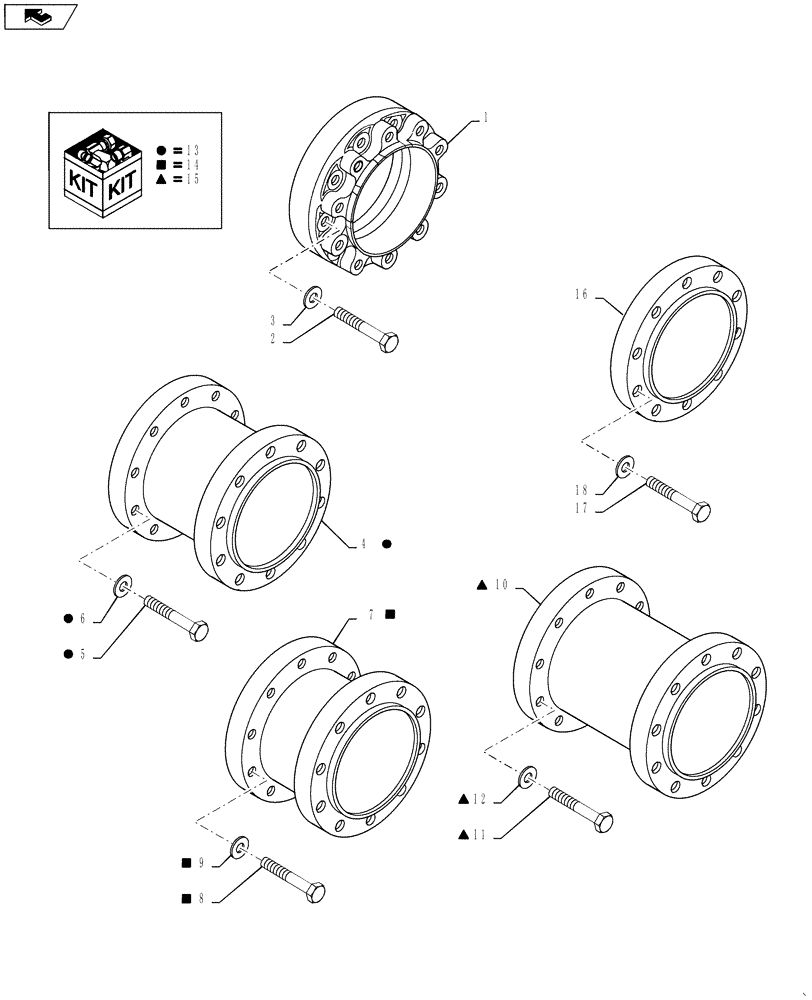

Запчасти Case IH MAGNUM 210 (44.520.02) - SPACER, DUAL REAR WHEELS (44) - WHEELS

1

405822A1

SPACER

127 mm (5 in)

2шт.

2

86639173

BOLT,Hex, M22 x 160mm, Cl 10.9

20шт.

3

896-11022

WASHER,24mm ID x 44mm OD x 4mm Thk

20шт.

4

405823A1

SPACER

254 mm (10 in)

2шт.

5

86639171

BOLT,Hex, M22 x 2.5 x 130mm, Class 10.9

20шт.

6

896-11022

WASHER,24mm ID x 44mm OD x 4mm Thk

20шт.

7

405824A1

SPACER

330 mm (13 in)

2шт.

8

86639171

BOLT,Hex, M22 x 2.5 x 130mm, Class 10.9

20шт.

9

896-11022

WASHER,24mm ID x 44mm OD x 4mm Thk

20шт.

10

405825A1

SPACER

381 mm (15 in)

2шт.

11

86639171

BOLT,Hex, M22 x 2.5 x 130mm, Class 10.9

20шт.

12

896-11022

WASHER,24mm ID x 44mm OD x 4mm Thk

20шт.

13

719681006

DIA KIT, TRACTOR

Rear Dual Spacer, 10 in, Inc. 5 - 7

1шт.

14

719682006

DIA KIT, TRACTOR

Rear Dual Spacer, 13 in, Inc. 9 - 11

1шт.

15

719683006

DIA KIT, TRACTOR

Rear Dual Spacer, 15 in, Inc. 13 - 15

1шт.

16

87414044

SPACER

Extension 1-1/2 In. - 10 Bolt

2шт.

17

827-22120

BOLT,Hex, M22 x 2.5 x 120mm, Cl 10.9

20шт.

18

896-11022

WASHER,24mm ID x 44mm OD x 4mm Thk

20шт.
