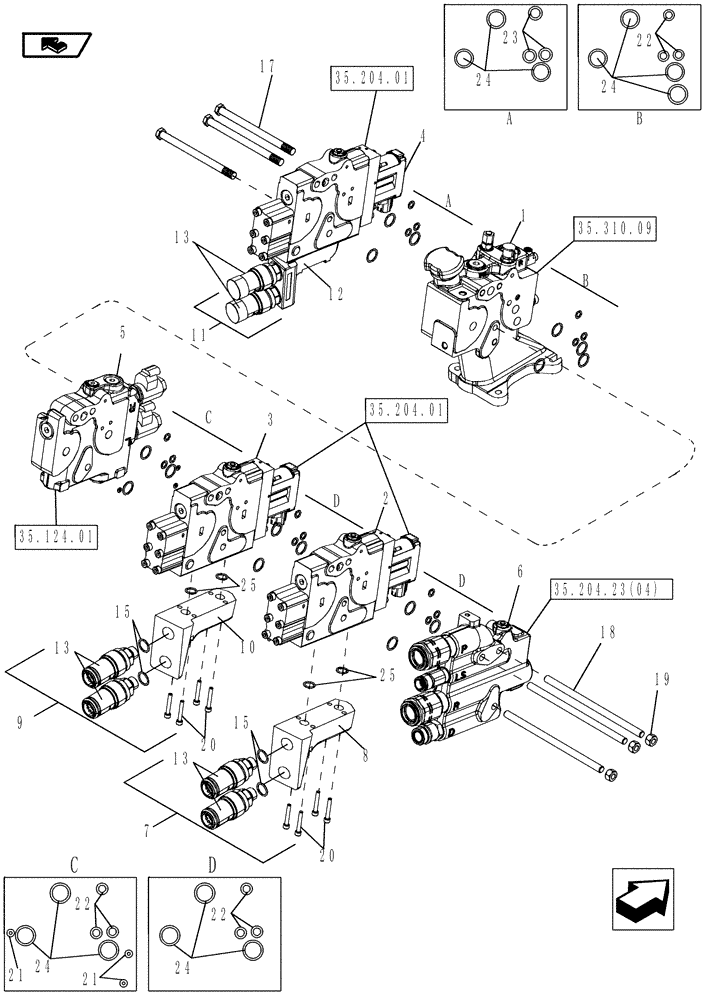

Запчасти Case IH MAGNUM 210 (35.204.23[01]) - REMOTE HYDRAULIC VALVE 3 STACK (35) - HYDRAULIC SYSTEMS

1

87555868

MANIFOLD VALVE

Inlet/Outlet

1шт.

2

87330385

HYD VALVE SECTION

Right, without Power Beyond

1шт.

2

87330385R

REMAN-HYD VALVE

MAGNUM 180, MAGNUM 190, MAGNUM 210, MAGNUM 225

1шт.

2

87330385C

CORE-VALVE HYD

Return Number

1шт.

2

87325955

HYD VALVE SECTION

Main, with Power beyond

1шт.

2

87325955R

REMAN-HYD VALVE

MAGNUM 180,MAGNUM 190,MAGNUM 210,MAGNUM 225

1шт.

2

87325955C

CORE-VALVE HYD

Return Number

1шт.

3

87325955

HYD VALVE SECTION

Main

1шт.

3

87325955R

REMAN-HYD VALVE

MAGNUM 180,MAGNUM 190,MAGNUM 210,MAGNUM 225

1шт.

3

87325955C

CORE-VALVE HYD

Return Number

1шт.

4

87330318

HYD VALVE SECTION

Left

1шт.

4

87330318R

REMAN-HYD VALVE

MAGNUM 180, MAGNUM 190, MAGNUM 210, MAGNUM 225 all REMOTE HYDRAULIC VALVE 3 STACK

1шт.

4

87330318C

CORE-VALVE HYD

Return Number

1шт.

5

87331245

VALVE SECTION

Hitch

1шт.

5

47434177R

REMAN-HYD VALVE

Reman For New P/N 87331245, Hitch

1шт.

5

47434177C

CORE-VALVE HYD

Return Part Number

1шт.

6

84158051

HYD VALVE SECTION

Power Beyond

1шт.

7

87381981

HYDRAULIC MANIFOLD

Inc. 8, 13

1шт.

8

NSS

NOT SOLD SEPARAT

QUICK COUPLER

1шт.

9

87381982

HYDRAULIC MANIFOLD

Inc. 10, 13

1шт.

10

NSS

NOT SOLD SEPARAT

QUICK COUPLER

1шт.

11

87381983

HYDRAULIC MANIFOLD

Inc. 12 - 13

1шт.

12

NSS

NOT SOLD SEPARAT

QUICK COUPLER

1шт.

13

87381944

COUPLING, QUICK, FEM

2шт.

14

87382012

SEAL KIT

Inc. 15 - 16

1шт.

15

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

16

NSS

NOT SOLD SEPARAT

BACKUP RING

1шт.

17

828-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

3шт.

18

87604617

STUD,M12 x 1.75 x 235mm L

M12 x 1.75 Length 235mm, With Power Beyond

3шт.

18

87604618

STUD,M12 x 1.75 x 185mm

M12 x 1.75 Length 185mm, Without Power Beyond

3шт.

19

829-1312

NUT,M12 x 1.75, Cl 10

3шт.

20

864-6045

HEX SOC SCREW,M6 x 45mm, Cl 8.8

12шт.

21

87635376

O-RING,2.62mm Thk x 3.63mm ID, -105, 80 Duro

1шт.

22

87635379

O-RING,2.62mm Thk x 9.19mm ID, -110, 80 Duro

1шт.

23

87635380

O-RING,2.62mm Thk x 12.37mm ID, -112, 80 Duro

1шт.

24

87635382

O-RING,2.62mm Thk x 20.29mm ID, -117, 80 Duro

1шт.

25

87635381

O-RING,2.62mm Thk x 15.54mm ID, -114, 80 Duro

1шт.
